Connection
7.1 Connection of the power supply for the ATC6500
3KC ATC6500 transfer control device
88 Manual, 05/2019, L1V30538268002A-01

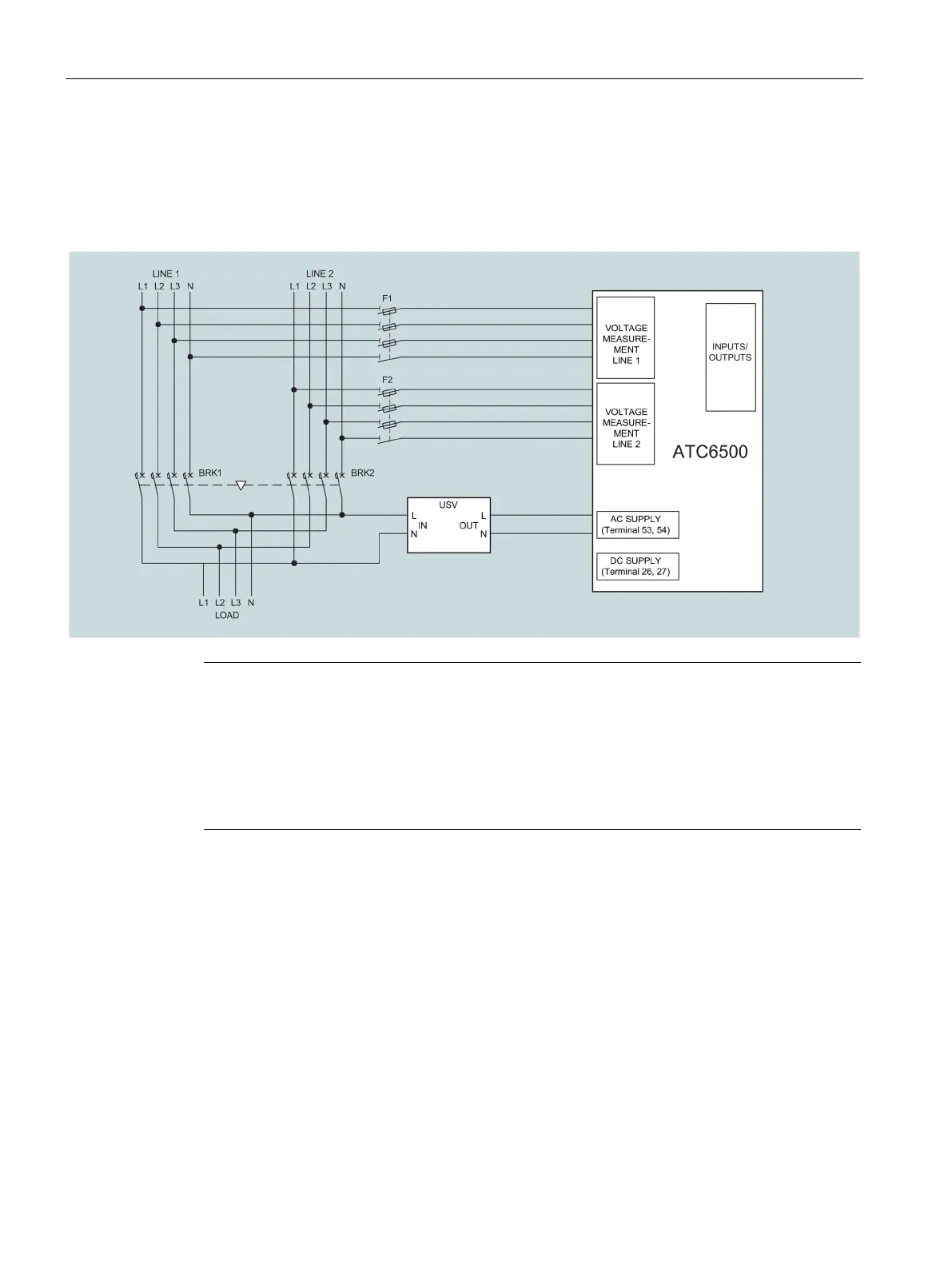

7.1.3 Power supply by means of UPS
The ATC6500 can also be supplied by means of an uninterruptible power supply (UPS). The
UPS buffers the supply voltage during a transfer to a secondary source. This ensures that
the ATC6500 does not fail during a transfer.
Note
Technical specifications of the supply voltage
When a dual network connection is used, the technical specifications for the supply voltage
of the ATC6500 must be observed (see chapter
Connecting the power supply of the
(Page 83)) as well as the technical specifications of the additional dual network
