Siemens SENTRON ATC6500 - Connection of 3 WL Air Circuit Breakers, FS I - III; Transfer between Two 3 WL FS I-III Air Circuit Breakers, with Electrical Interlock

Connection
7.6 Connection of 3WL air circuit breakers, FS I - III
3KC ATC6500 transfer control device
Manual, 05/2019, L1V30538268002A-01
127
7.6 Connection of 3WL air circuit breakers, FS I - III
7.6.1 Transfer between two 3WL FS I-III air circuit breakers, with electrical interlock

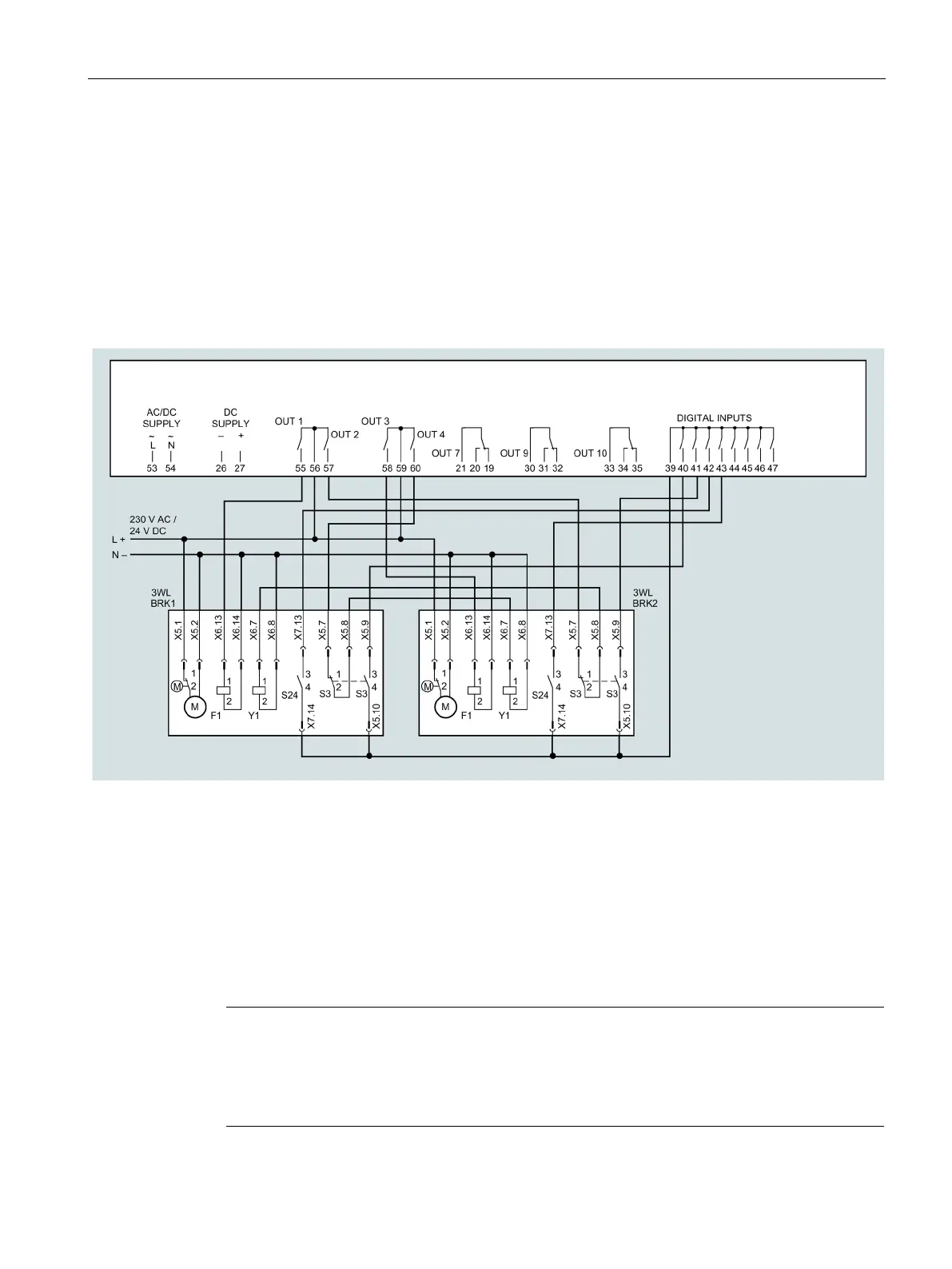

For the application 2S-0T the following diagram applies:
You can find more information on the applications in chapter Load management with the
ATC6500 (Page 20)
Code
Description
BRK 1
3WL air circuit breaker for Source 1
BRK2
3WL air circuit breaker for Source 2
S3 (NC)
Auxiliary switch (for electrical interlocking)
S3 (NO)
Auxiliary switch (status)
S24
Alarm auxiliary switch (trip)
F1
Auxiliary release (shunt trip) F1
Y1
Closing coil Y1
M
Motor operator
Note
IEC regulations
According to IEC regulations, the fusible element must be connected via a cable compliant
with IEC
61439-1 which is protected against ground faults and short circuits. To this end,
please observe the applicable national standards for electrical installatio
ns.
