• Self-generating interference leakage from the terminal module to the mounting rail by
means of a spring contact
• Prewiring of the terminal module is possible
Note
The cable shield of the PROFIBUS DP cable is operationally connected to the equipotential
bonding via the spring contact to the mounting rail.

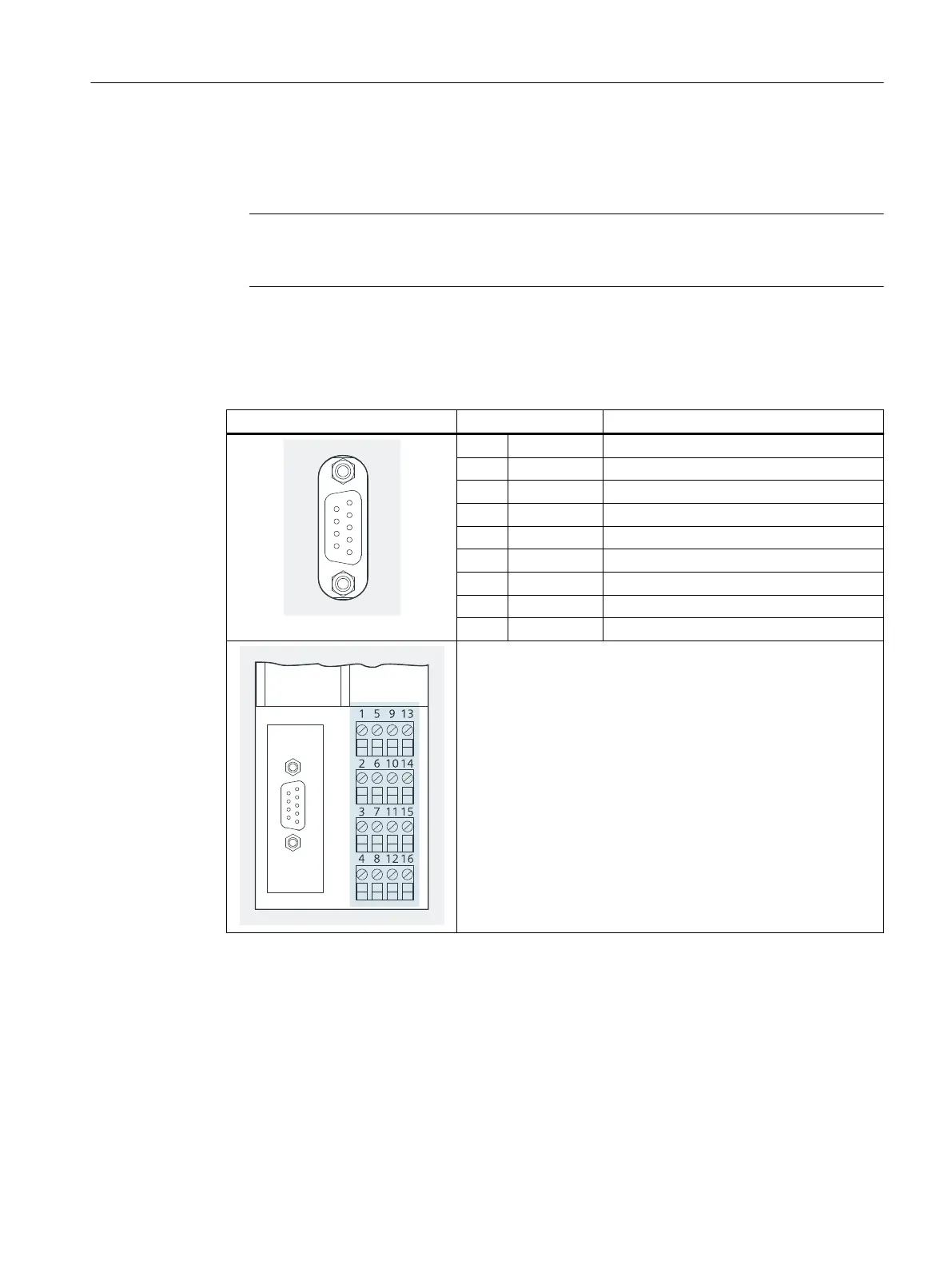

Pin assignment
Table 10-4 Pin assignment on the TM-IM/EM
View Terminal Designation









1 PA Equipotential bonding
2 - -
3 RxD/TxD-P Data line B
4 - -
5 ISGND Bus termination ground
6 ISP Bus termination P
7 - -
8 RxD/TxD-N Data line A
9 -
Pin assignment, see sections "Digital electronic modules
(Page 295)" and "Analog electronic modules (Page 345)"
Terminal modules
10.3 Terminal modules TM-IM/EM 60S and TM-IM/EM 60C
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 255
