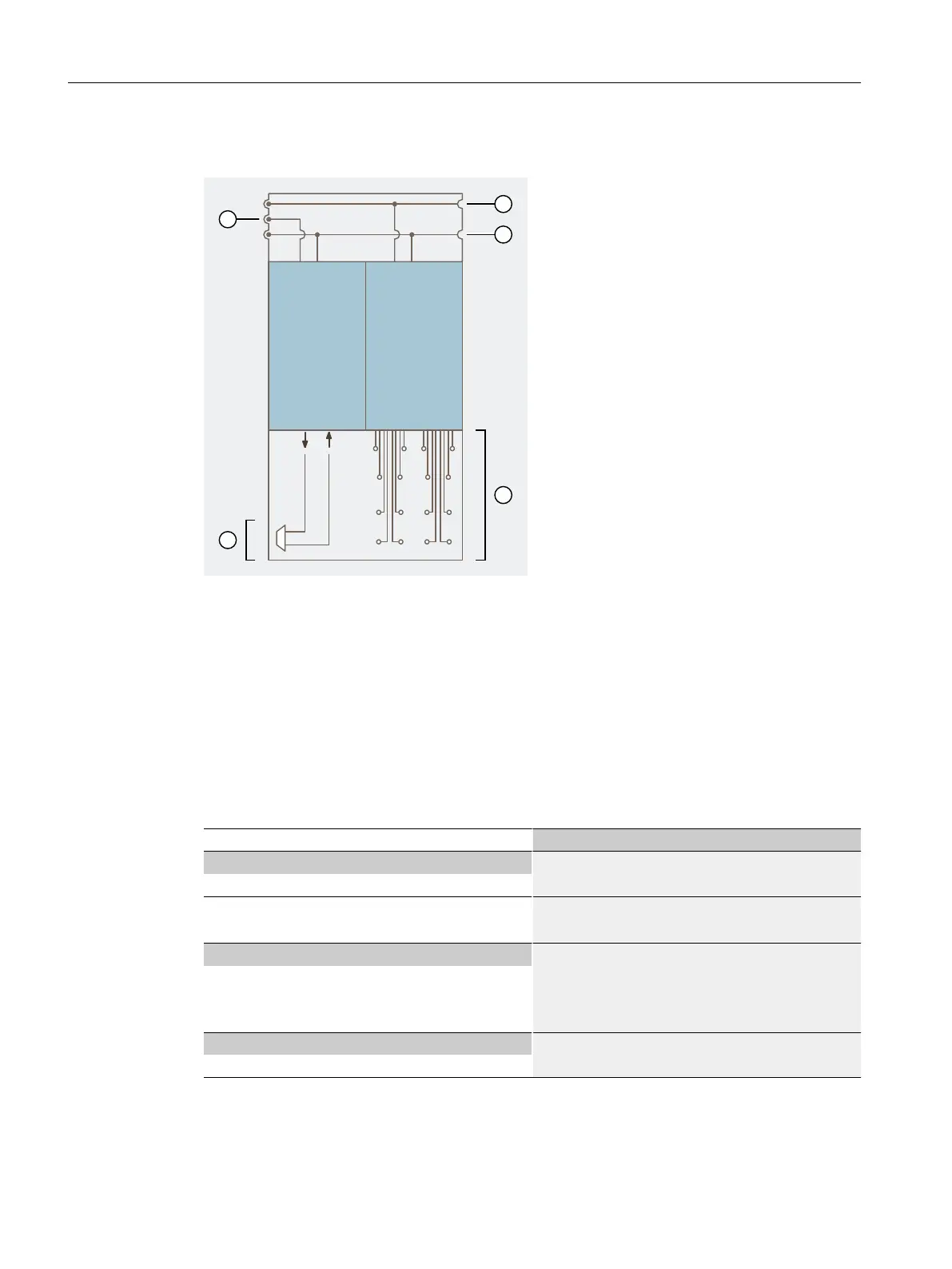

Block diagram
*.&.
#
"
① Supply of the interface modules
② Power bus
③ Backplane bus
④ Terminals with connection to the electronic module
⑤ Terminal PROFIBUS RS 485-IS
Figure 10-2 Block diagram of terminal module TM-IM/EM
Technical specications
Terminal module TM-IM/EM 60S
Article number 6ES7193-7AA00-0AA0
Standards, approvals, certicates
CE mark Yes
Use in hazardous areas
• ATEX marking
see ET 200iSP system
Dimensions
Width 60 mm
Height 190 mm
Depth 52 mm
Weights
Weight, approx. 235 g
Terminal modules
10.3 Terminal modules TM-IM/EM 60S and TM-IM/EM 60C
ET 200iSP
256 Operating Instructions, 11/2022, A5E00247483-AK
