Note
Address space assignment
The occupied address range of the process image of the 8 DI NAMUR depends on the
con󹪝guration. For more information on this, refer to Digital input module (Page 435)
Pin assignment NAMUR changeover contact or encoder after DIN 19234 changeover contact

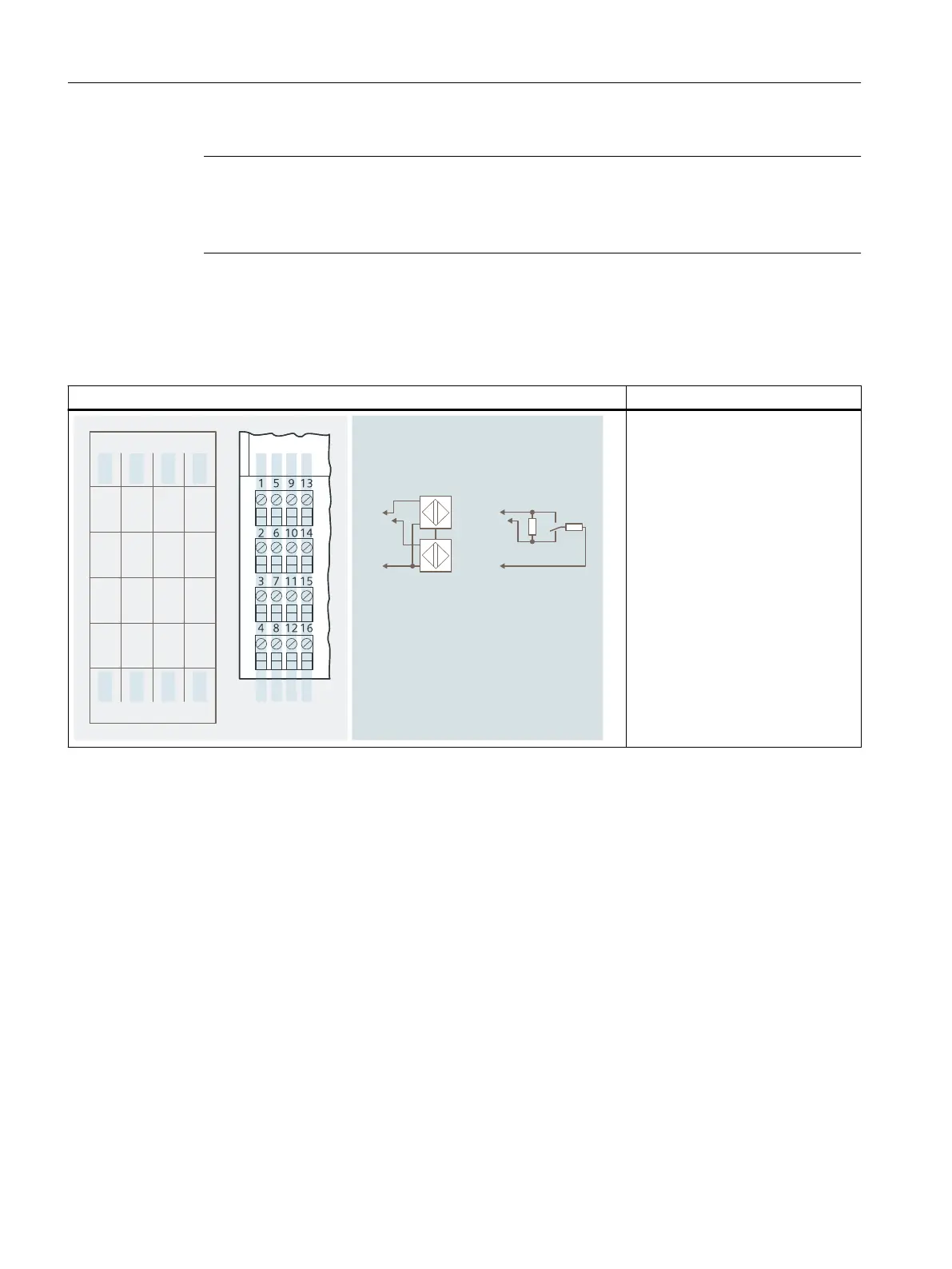

Table 13-2 Pin assignment NAMUR changeover contact or encoder after DIN 19234 changeover contact
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
$IBOOFMBOE$IBOOFM
/0DPOUBDU
/$
PS
$IBOOFM
$IBOOFM


%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474


L
L






Changeover contact 1:
Channel 0: Terminals 1 and 2
Channel 1: Terminal 5
Changeover contact 2:
Channel 2: Terminals 9 and 10
Channel 3: Terminal 13
Changeover contact 3:
Channel 4: Terminals 3 and 4
Channel 5: Terminal 7
Changeover contact 4:
Channel 6: Terminals 11 and 12
Channel 7: Terminal 15
DI: Input signal
V
S
: Sensor supply
