Pin assignment of single contact with 10 kΩ (mechanical normally open contact)

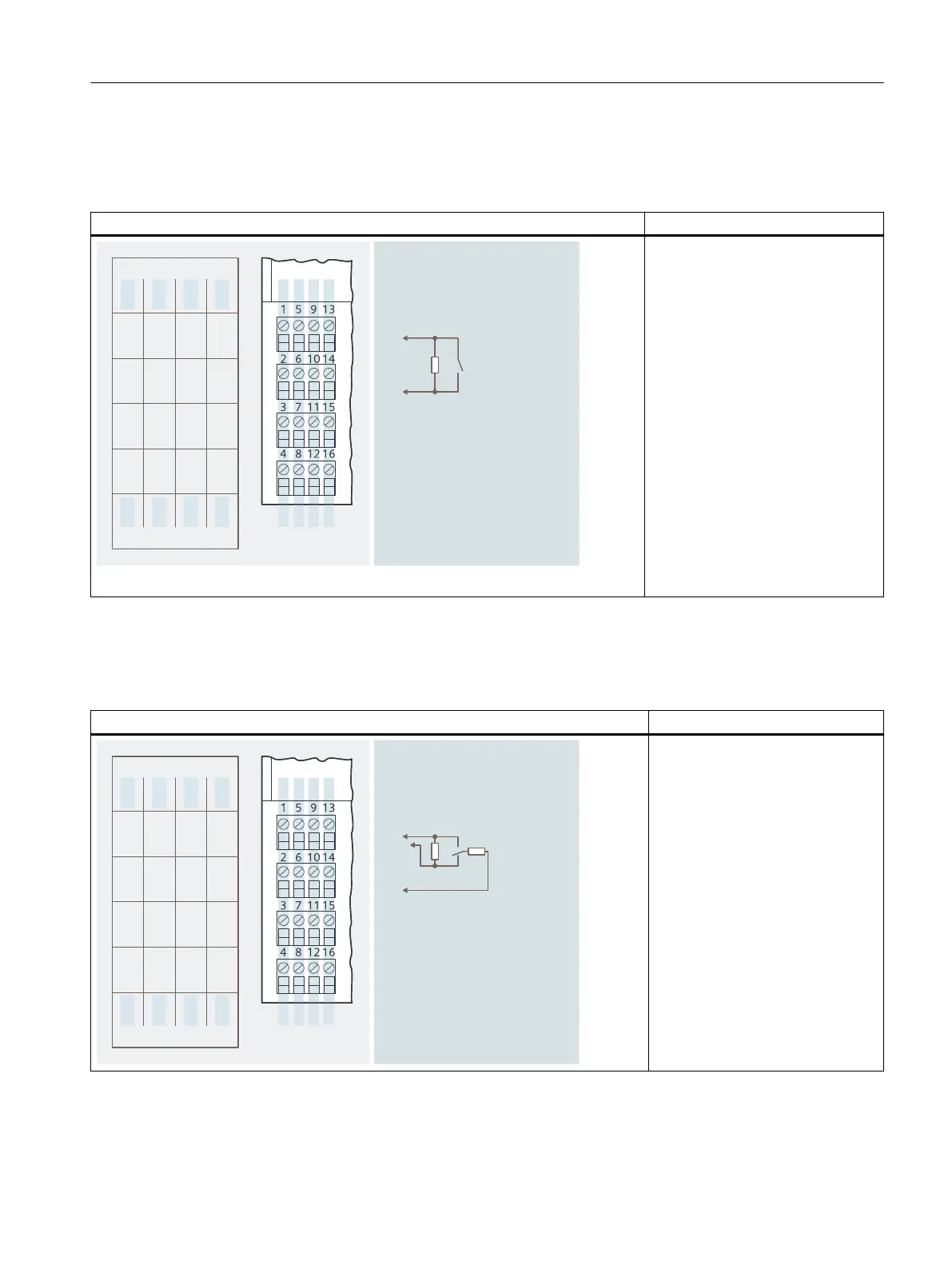

Table 13-3 Pin assignment of single contact with 10 kΩ (mechanical normally open contact)
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
DIBOOFM
$IBOOFM
$IBOOFM


%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474


L


Single contact 1:
Channel 0: Terminals 1 and 2
Single contact 2:
Channel 1: Terminals 5 and 6
Single contact 3:
Channel 2: Terminals 9 and 10
Single contact 4:
Channel 3: Terminals 13 and 14
Single contact 5:
Channel 4: Terminals 3 and 4
Single contact 6:
Channel 5: Terminals 7 and 8
Single contact 7:
Channel 6: Terminals 11 and 12
Point of contact 8:
Channel 7 Terminals 15 and 16
DI: Input signal
V
S
: Sensor supply
Changeover contact connected with 10 kΩ (mechanical change-over contact)
Table 13-4 Changeover contact connected with 10 kΩ (mechanical change-over contact)
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
$IBOOFMBOE$IBOOFM
$IBOOFM
$IBOOFM


%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474


L
L



Changeover contact 1:
Channel 0: Terminals 1 and 2
Channel 1: Terminal 5
Changeover contact 2:
Channel 2: Terminals 9 and 10
Channel 3: Terminal 13
Changeover contact 3:
Channel 4: Terminals 3 and 4
Channel 5: Terminal 7
Changeover contact 4:
Channel 6: Terminals 11 and 12
Channel 7: Terminal 15
DI: Input signal
V
S
: Sensor supply
Digital electronic modules
13.1 Digital electronics module 8 DI NAMUR
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 297
