Siemens SIMATIC ET 200iSP

Pin assignment of a single contact without load resistance (mechanical NO contact with single
contact)

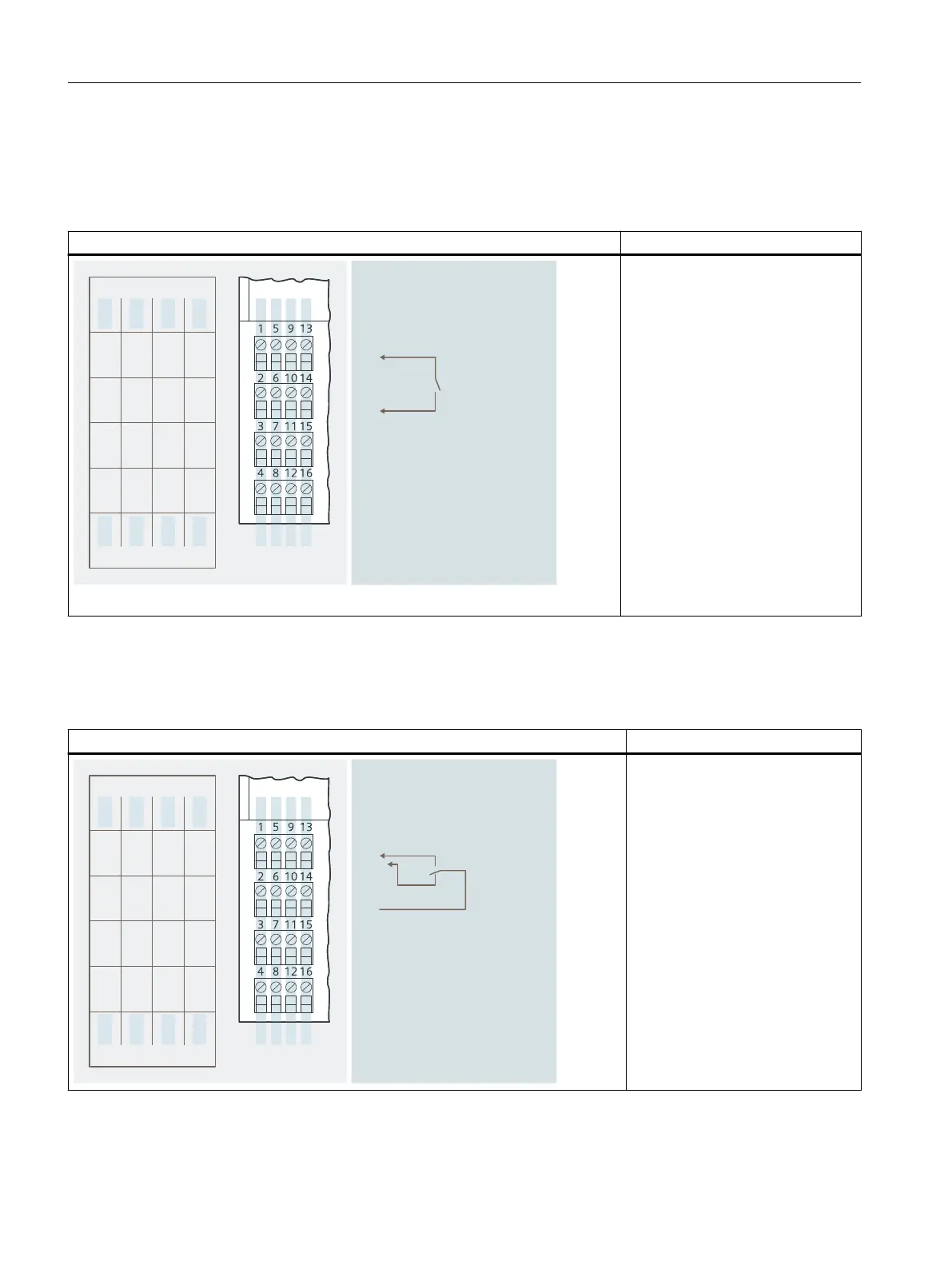

Table 13-5 Pin assignment of a single contact without load resistance (mechanical NO contact with single contact)
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
DIBOOFM
$IBOOFM
$IBOOFM


%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474




Single contact 1:
Channel 0: Terminals 1 and 2
Single contact 2:
Channel 1: Terminals 5 and 6
Single contact 3:
Channel 2: Terminals 9 and 10
Single contact 4:
Channel 3: Terminals 13 and 14
Single contact 5:
Channel 4: Terminals 3 and 4
Single contact 6:
Channel 5: Terminals 7 and 8
Single contact 7:
Channel 6: Terminals 11 and 12
Point of contact 8:
Channel 7 Terminals 15 and 16
DI: Input signal
V
S
: Sensor supply
Pin assignment of a changeover contact without load resistance (mechanical changeover contact)
Table 13-6 Pin assignment of a changeover contact without load resistance (mechanical changeover contact)
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
$IBOOFMBOE$IBOOFM
$IBOOFM
$IBOOFM


%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474





Changeover contact 1:
Channel 0: Terminals 1 and 2
Channel 1: Terminal 5
Changeover contact 2:
Channel 2: Terminals 9 and 10
Channel 3: Terminal 13
Changeover contact 3:
Channel 4: Terminals 3 and 4
Channel 5: Terminal 7
Changeover contact 4:
Channel 6: Terminals 11 and 12
Channel 7: Terminal 15
DI: Input signal
V
S
: Sensor supply
Digital electronic modules
13.1 Digital electronics module 8 DI NAMUR
