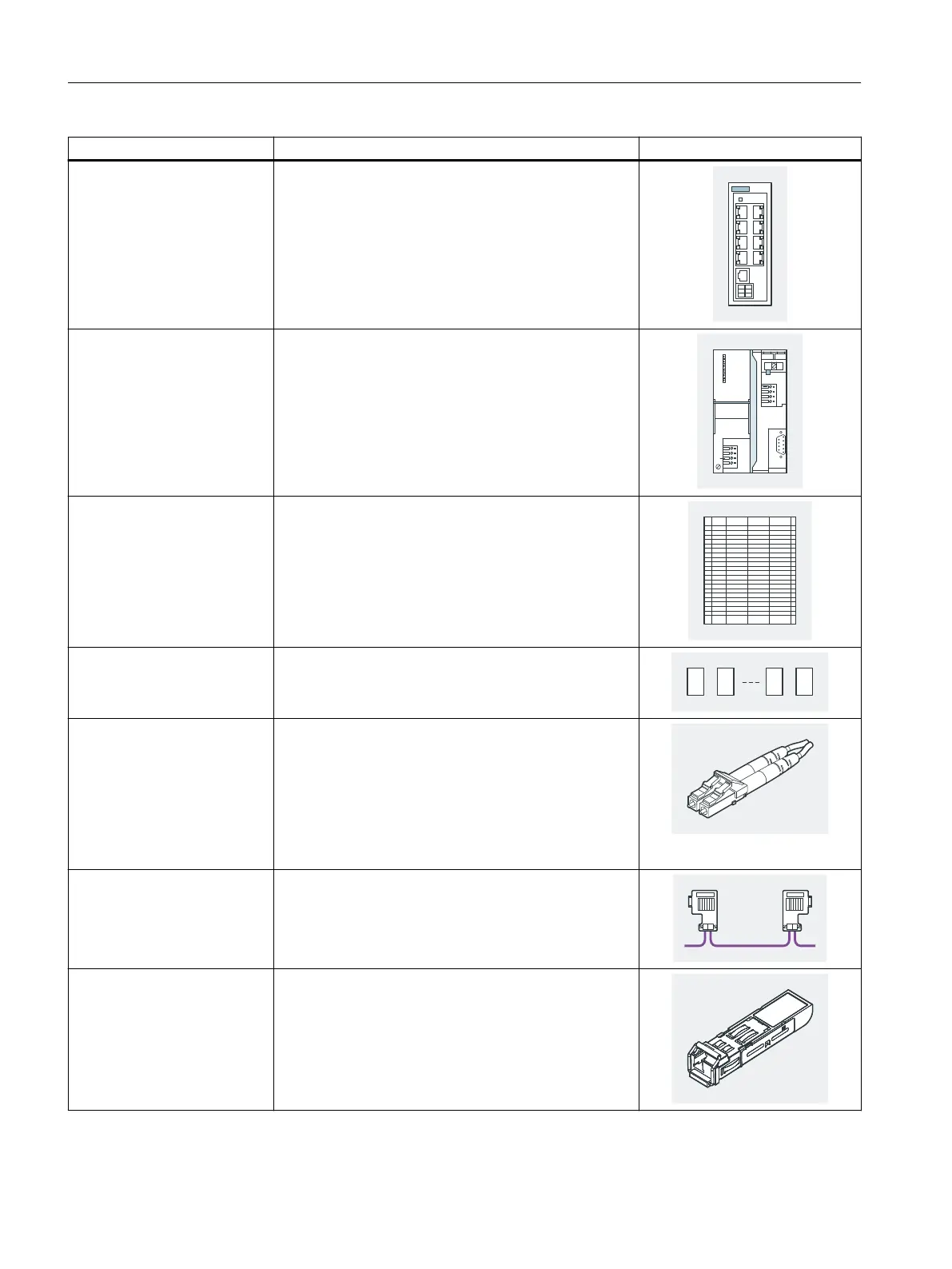

Component Function Image
Ethernet switch ... converts the PROFINET IO into an optical signal when
an IM 152-1PN is used.
RS 485-IS coupler ... converts the PROFIBUS DP into the PROFIBUS RS 485-IS
when an IM 152-1DP is used.
Labeling sheet (DIN A4, perfo‐
rated, foil)
... for labeling or printing by machine
80 strips per labeling sheet
Slot number plates ... for identication of the slots on the terminal module.
Fiber-optic cable with FO plug
connector
... connects the station to a PROFINET IO network via ber-
optic cables (e.g. connection to: Switch, media convert‐
er, BusAdapter with optical connection (can be used with
ET 200 SP HA or CFU) or another station of the ET 200iSP).
In the hazardous area, only ber-optic cables with limited
energy of the light beam is allowed. The transceiver on
the media converter must be approved for ATEX/IECEx
Zone 1/21.
PROFIBUS cable with bus con‐
nector
... connects the nodes of a PROFIBUS RS 485-IS congu‐
ration to each other or connects the RS 485-IS coupler to
the station.
PROFIBUS bus connector RS 485-IS including switchable
terminating resistor
SFP transceiver for IM 152-1PN
(A5E51793919)
Intrinsically safe optical transceiver for ET 200iSP.
Product overview
2.1 ET 200iSP Distributed I/O Station
ET 200iSP
30 Operating Instructions, 11/2022, A5E00247483-AK
