Siemens SIMATIC ET 200SP System Manual

Configuration control (option handling)
10.3 Transferring control data record in the startup program of the CPU
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
185

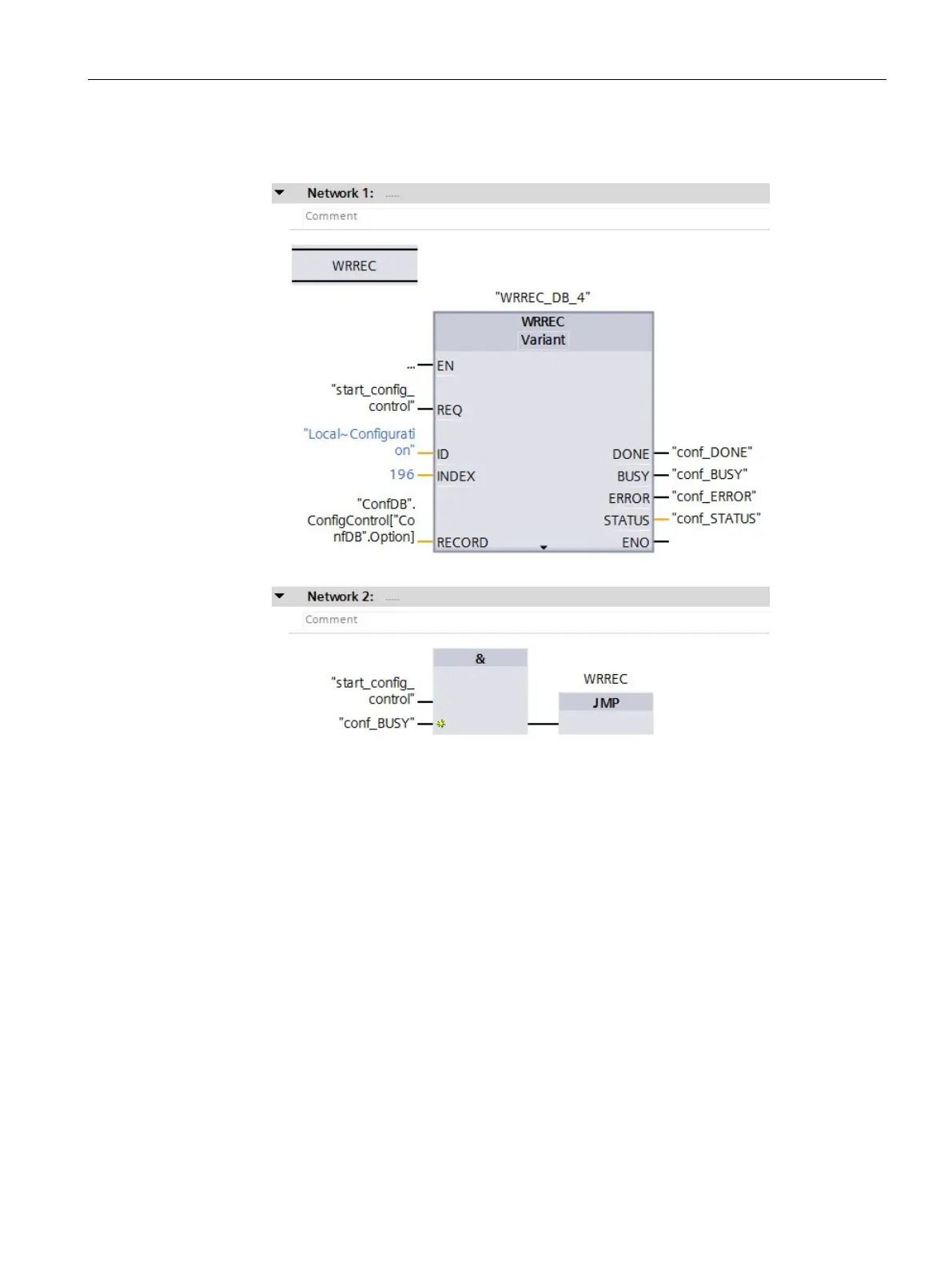

Example in FBD: Use the LABEL (jump label) and JMP (jump at RLO=1) instructions
to program a loop.
Figure 10-5 WRREC
● The control data record is stored retentively in the CPU. Note:
– The retentivity of the control data record is independent of the retentivity settings in the
STEP 7 memory area. This means that the memory area in which the control data
record is configured does not have to be configured as retentive for this purpose.
– If you write a control data record with modified configuration, the original data record
196 is deleted and the new data record 196 is saved retentively. The CPU will then
restart with the modified configuration.
– The control data record is saved retentively in the CPU, which means that it is not
necessary to write the control data record 196 again at a restart if the configuration is
unchanged. We recommend that a memory reset of the CPU be performed prior to
commissioning to delete any control data record that may be present.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
