Siemens SIMATIC ET 200SP System Manual

System overview
3.4 Components
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
25

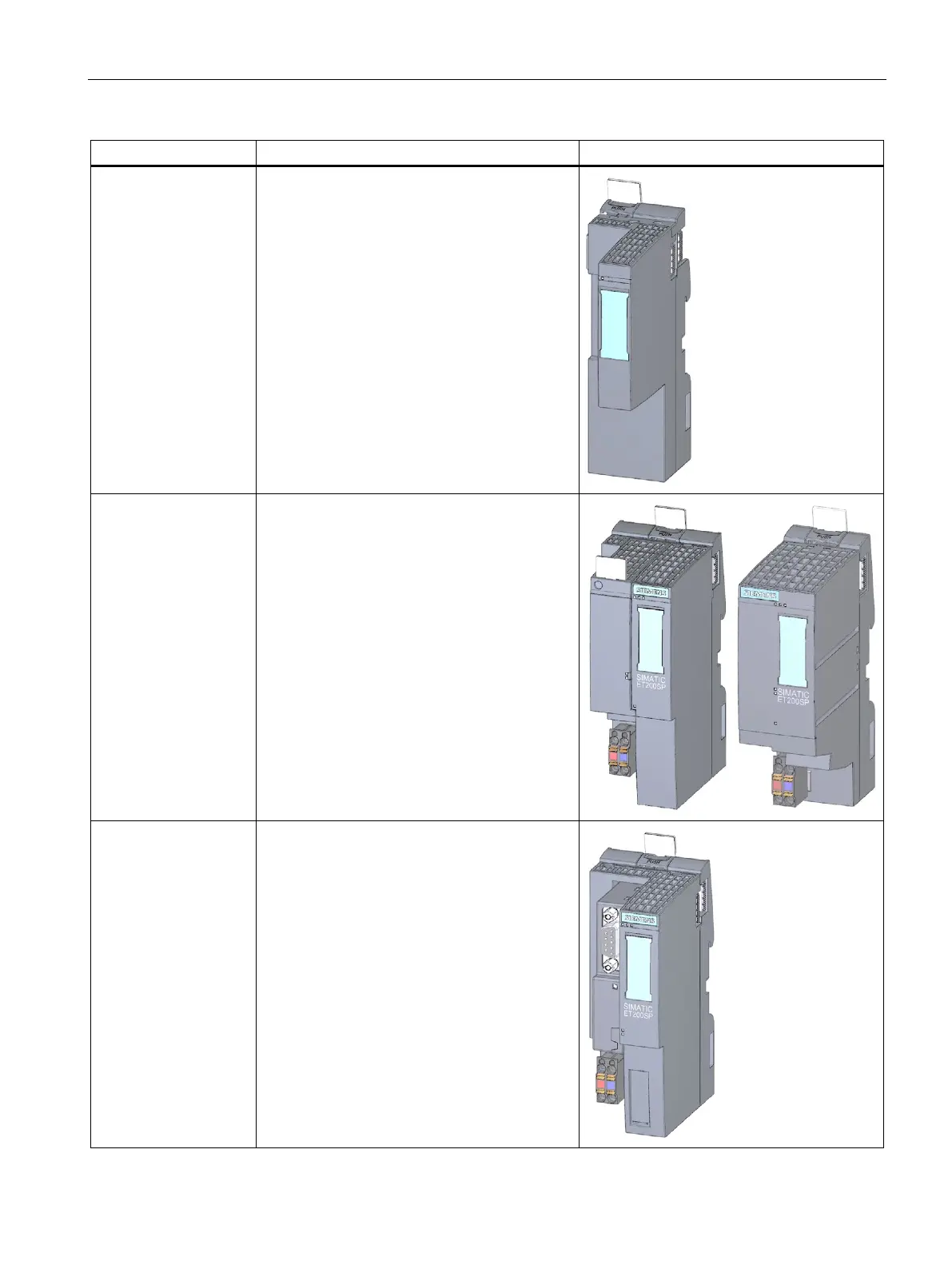

Basic component
Function
Figure
Communication module
CM DP
The communication module CM DP
• Connects the CPU with PROFIBUS DP
• The bus connection is an RS485 interface
Interface module for
PROFINET IO
The interface module:
• Can be used as IO device on PROFINET IO
• Links the ET 200SP with the IO controller
• Exchanges data with the I/O modules via the
backplane bus.
Interface module for
PROFIBUS DP
The interface module:
• Can be used as DP slave on PROFIBUS DP
• Links the ET 200SP with the DP master
• Exchanges data with the I/O modules via the
backplane bus.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
