Siemens SIMATIC ET 200SP System Manual

System overview
3.4 Components
Distributed I/O system
26 System Manual, 09/2019, A5E03576849-AJ
Basic component
Function
Figure

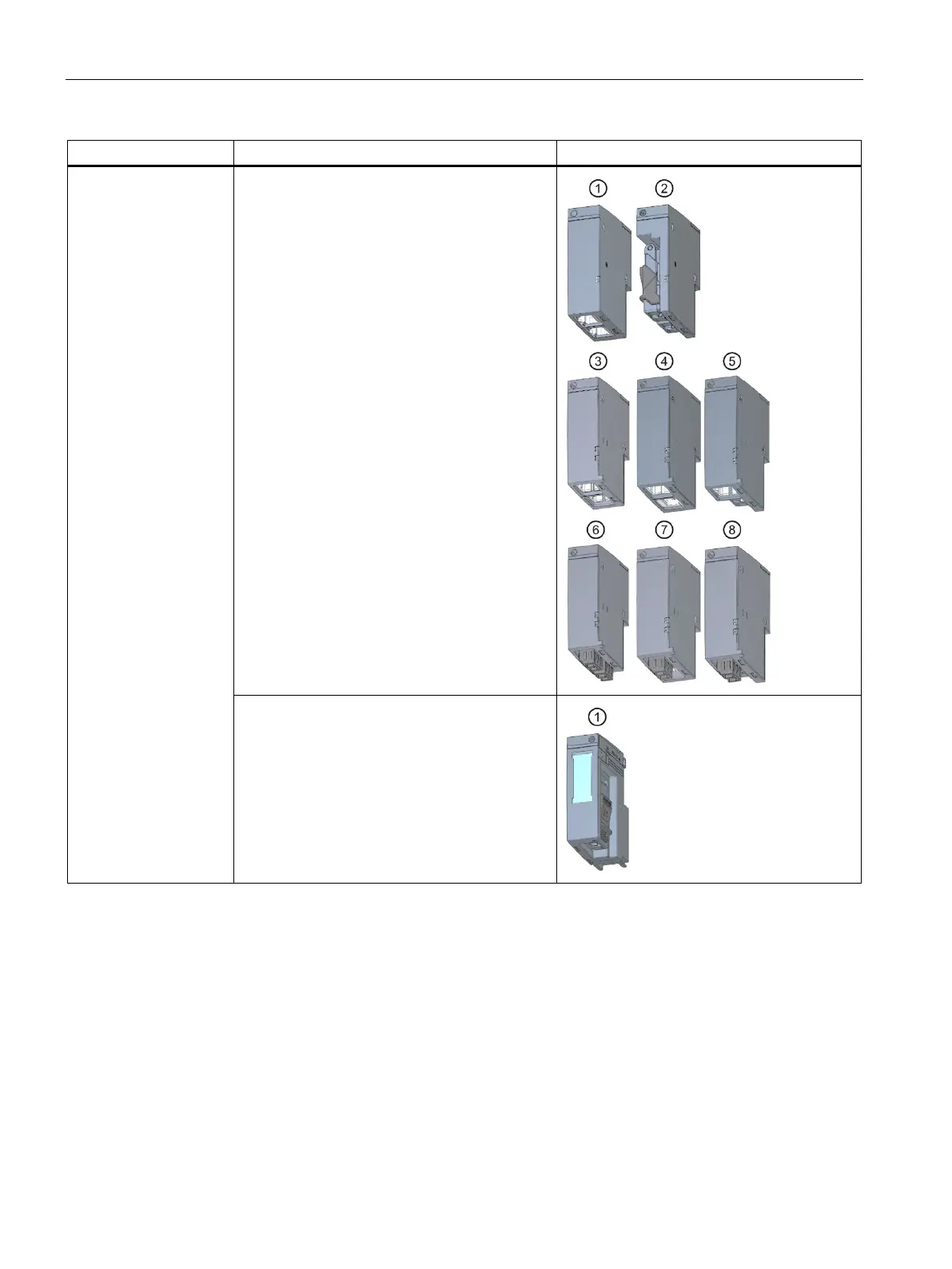

BusAdapter The BusAdapters allow free selection of the
connection technology for PROFINET IO. The
following versions are available for PROFINET
CPU/interface modules:
• For standard RJ45 connector (BA 2×RJ45)
①
• For direct connection of the bus cable
(BA 2×FC) ②
• For POF/PCF fiber-optic cable (BA 2xSCRJ)
③
• As media converter for POF/PCF fiber-optic
cable ⇔ standard RJ45 plug (BA
SCRJ/RJ45)
④
• As media converter for POF/PCF fiber-optic
cable ⇔ direct connection of the bus cable
(BA SCRJ/FC)
⑤
• For glass fiber-optic cable (BA 2xLC)
⑥
• As media converter for glass fiber-optic cable
⇔ standard RJ45 plug (BA LC/RJ45) ⑦
• As media converter for glass fiber-optic cable
⇔ direct connection of the bus cable (BA
LC/FC)
⑧
For mixed ET 200SP/ET 200AL configuration,
you require the BusAdapter BA-Send 1xFC ①
(plugged into the BaseUnit BU-Send). Connect
the bus cable for ET-Connection to the
BusAdapter BA-Send 1xFC.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
