Siemens SIMATIC S7-1500 Automation System User Manual

SIMATIC memory card
11.1 SIMATIC memory card - overview
S7-1500 Automation System
136 System Manual, 01/2013, A5E03461182-01

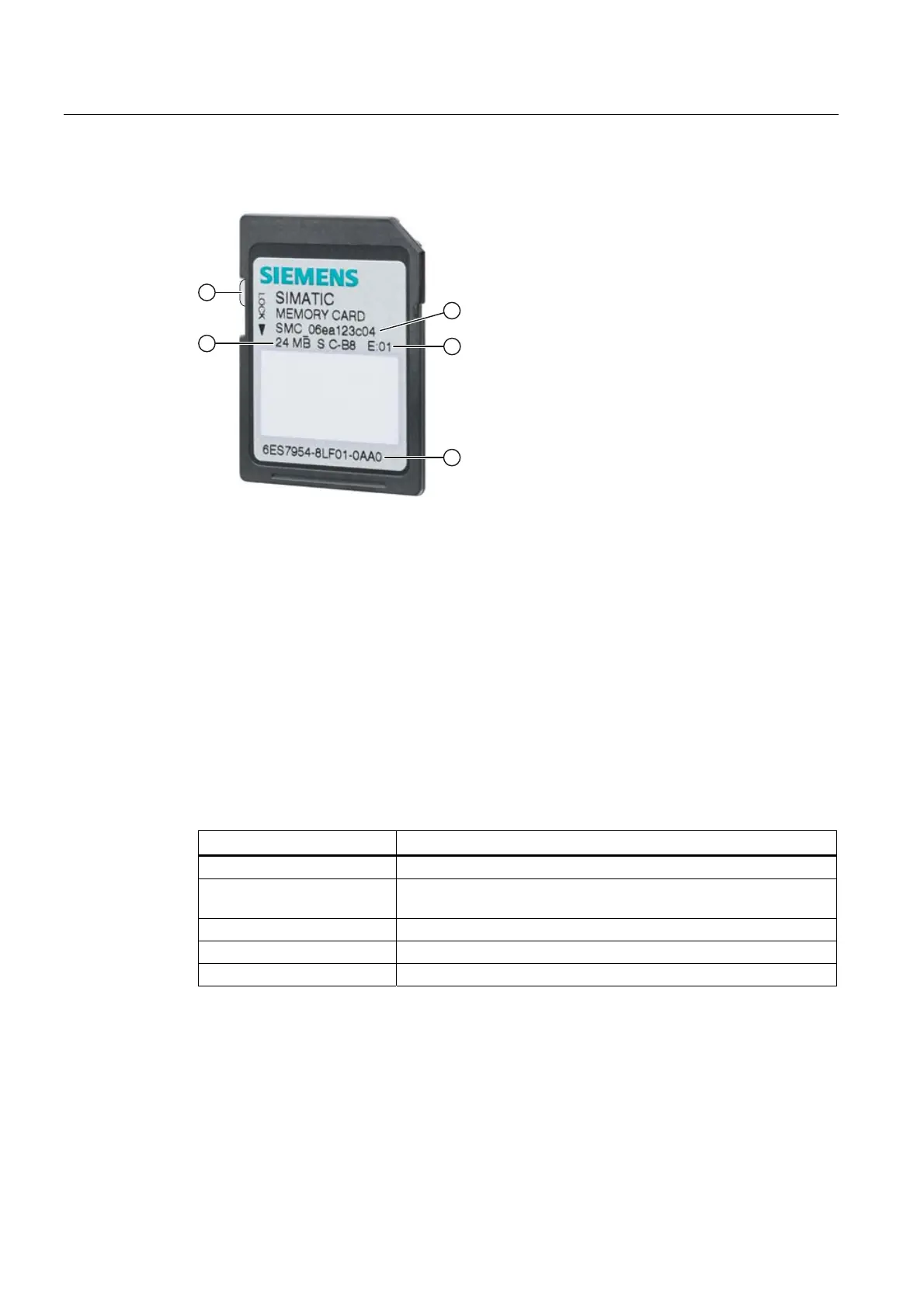

Insertion of the SIMATIC memory card





① Serial number, e.g. SMC_06ea123c04
② Product version, e.g., E:01
③ Order number, e.g., 6ES7954-8LF01-0AA0
④ Memory size, e.g., 24 MB
⑤ Slider for enabling write protection:
• Slider up: not write-protected
• Slider down: write-protected
Figure 11-1 Insertion of the SIMATIC memory card
Folders and files on the SIMATIC memory card
The following folders and files can be found on the SIMATIC memory card:
Table 11- 1 Folder structure
Folder Description
FWUPDATE.S7S Firmware update files for CPU and I/O modules
SIMATIC.S7S User program, i.e. all blocks (OBs, FCs, FBs, DBs) and system
blocks, project data of the CPU
SIMATIC.HMI HMI-relevant data
DataLogs DataLog files
Recipes Recipe files

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
