Parameters
4.3 Monitoring functions
SIMOCODE pro - Parameterize
160 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
4.3.10
Hysteresis for monitoring functions

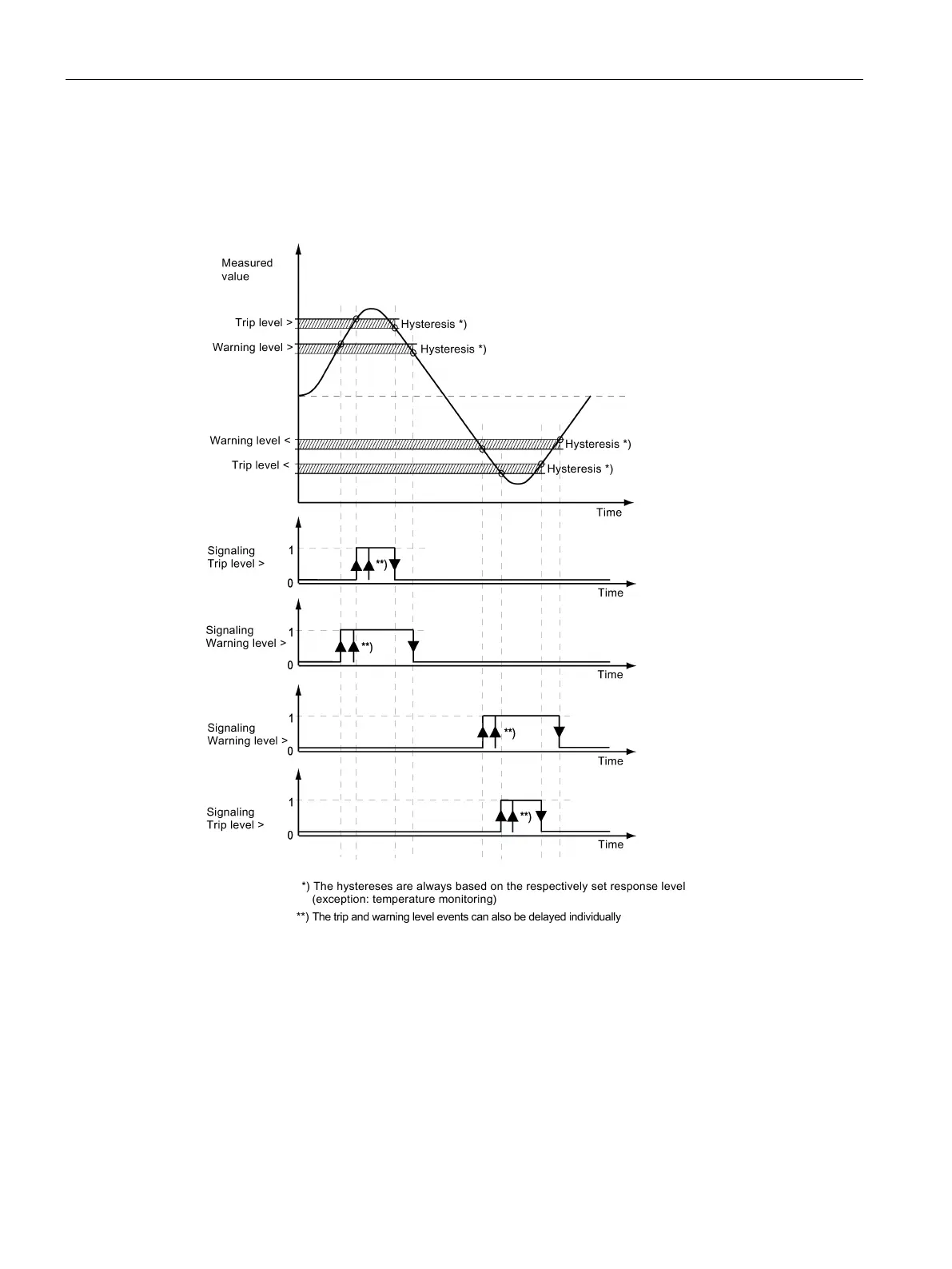

The following diagram illustrates the function of the hysteresis for monitoring functions:
Figure 4-42 The hysteresis operating principle for monitoring functions
TL = Trip level (tripping)
WL = Warning level (warning)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
