Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
239
4.8.4
Truth table for 5I / 2O
Description
The truth table for 5I / 2O consists of:
● five plugs
● one logic component
● Two sockets.
You can choose which of the 32 possible input conditions a maximum of two output signals
should be generated for.
In total, one truth table 9 is available for the SIMOCODE pro V basic units.
Schematic

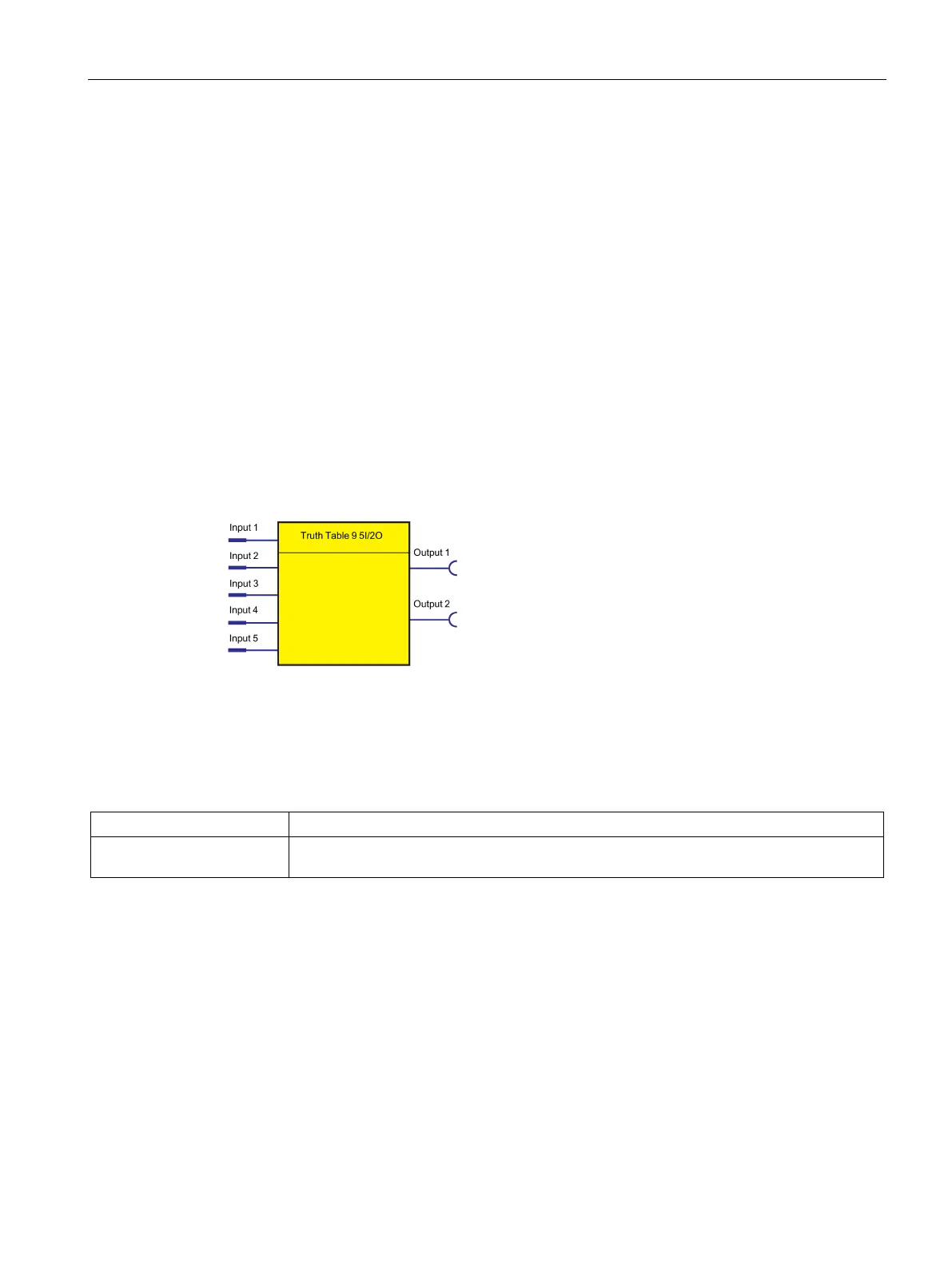

The following schematic shows the "Truth Table for 5I / 2O" logic modules:
Figure 4-94 "Truth Table for 5I / 2O" logic modules
Settings
Table 4- 87 Settings for truth table for 5I / 2O
Truth table 9 (5I / 2O)
Description
Input 1 to 5 Activation by any signal (any sockets, e.g. device inputs, control bits from the
communication bus, etc.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
