Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
238 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Example
You want to implement the following circuit:

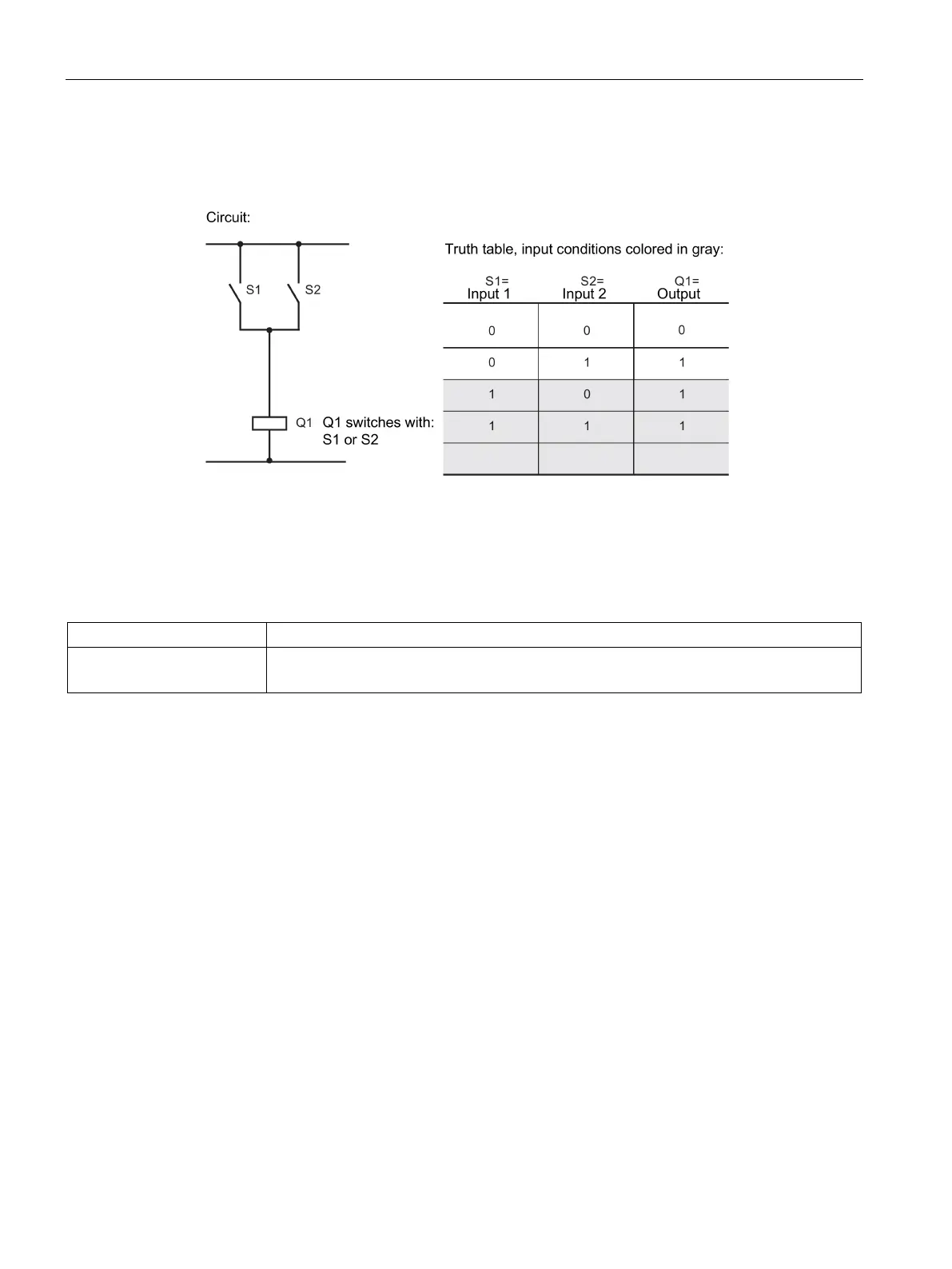

Figure 4-93 Example of truth table 2I / 1O
Settings
Table 4- 86 Settings for truth table 2I/1O
Truth table for 2I / 1O
Description
Inputs 1 to 2 Activation of the truth table by any signal (any sockets, e.g. device inputs, communication
bus control bits, etc.)
