Parameters
4.5 Inputs
SIMOCODE pro - Parameterize
198 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
OPC UA Receive
Description
In addition to "Cyclic Receive," it is possible to transfer further data to SIMOCODE pro via
OPC-UA. With the "OPC UA Receive" function block, you can specify which information will
be further processed in SIMOCODE pro. For this, you only have to link the sockets of the
"OPC-UA Receive" function blocks to any other function blocks in SIMOCODE pro.
The "OPC-UA Receive" function blocks consist of:
● Eight bits each (= two bytes, byte 0 and byte 1 for binary information)
● One word (= two bytes, byte 2 to 3 for an analog value, freely parameterizable).
A total of three "OPC-UA Receive" function blocks (0, 1, 2/3) are provided.

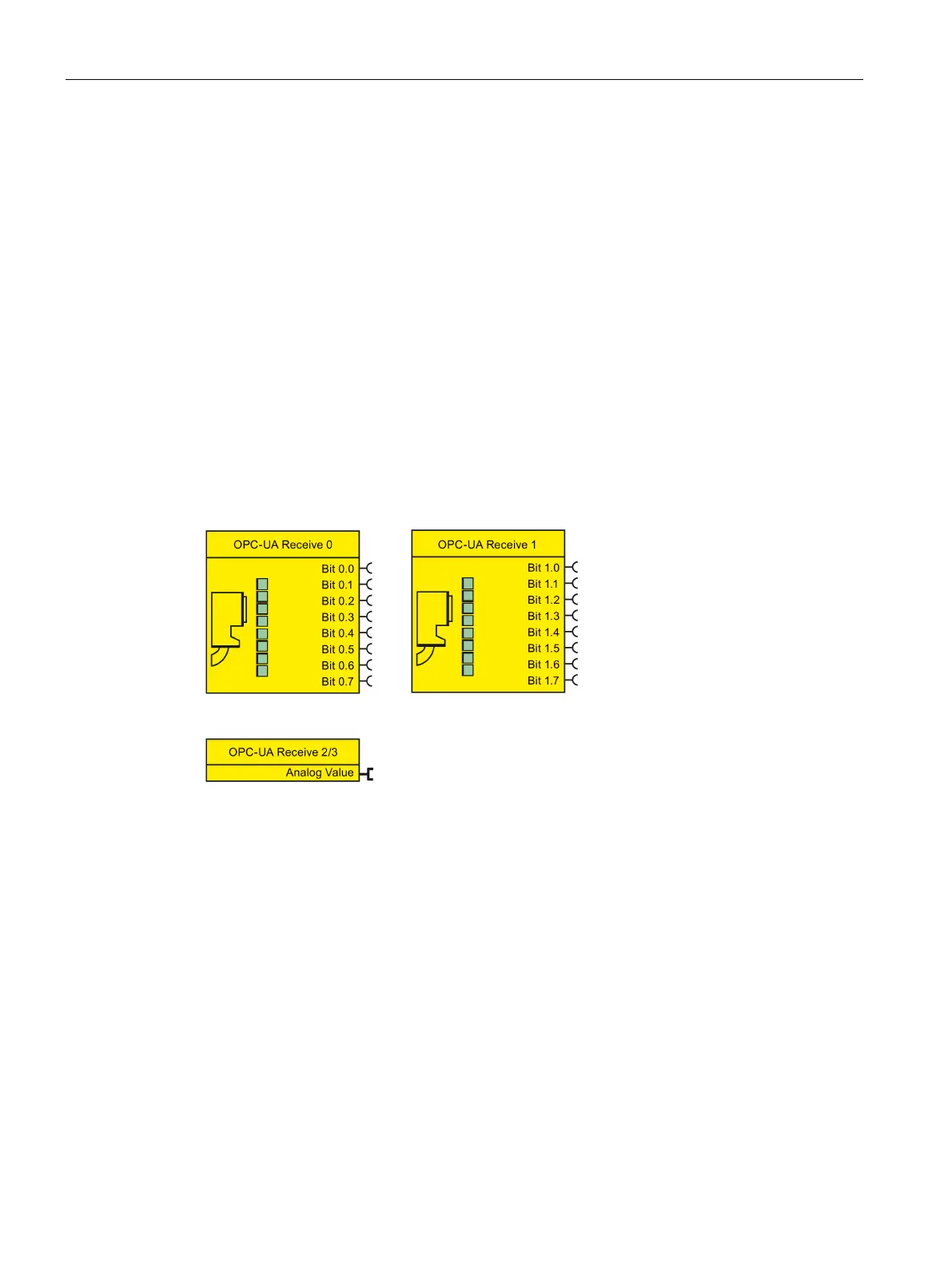

The following schematic shows the "OPC-UA Receive" function blocks:
Figure 4-71 Schematic of the "OPC-UA Receive" function blocks
