Parameters
4.4 Outputs
SIMOCODE pro - Parameterize
170 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Analog module output
Description
You can use analog modules 1 and 2 to expand the pro V PN basic unit with one analog
output in each case. The corresponding function blocks "AM1 Output" and "AM2 Output"
(AM2 Output only in conjunction with the SIMOCODE pro V PN and pro V EIP basic units)
allow every analog value (2 bytes/1 word) in SIMOCODE pro to be output as a 0/4 A - 20 mA
signal to a connected pointer instrument, for example. If the function block is activated via
the "Assigned analog output value" plug using any integer value between 0 and 65,535, an
equivalent analog signal of 0 to 20 mA or 4 to 20 mA will be sent to the output terminals of
the analog module.
Note
The "AM1 Output" and "AM2 Output" function blocks can only be used if the analog module
(AM) i
s connected and configured in the device configuration.

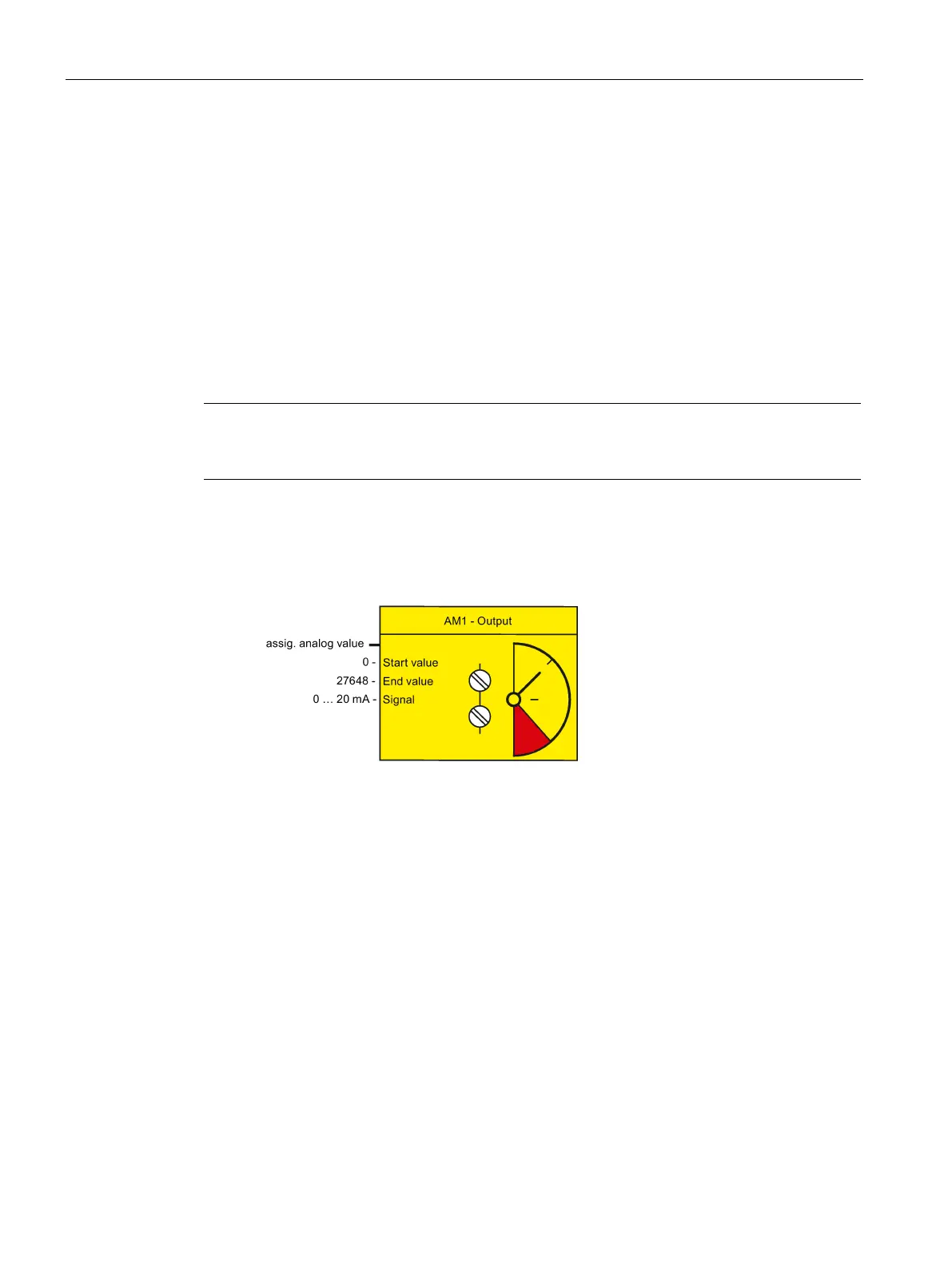

The following schematic shows the "AM1 Output" function block:
Figure 4-50 Function block "AM1 - output"
