4.8 Logic modules
SIMOCODE pro - Parameterize
254 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
4.8.9
Flashing
Description
If an input signal is pending at its plug, the "Flashing" logic module issues a signal to its
socket, which alternates between binary 0 and 1 at a fixed frequency of 1 Hz. You can use
this to make the LEDs on the operator panel flash, for example. The logic module consists
of:
● one plug
● one logic component
● one socket
In total, 3 "Flashing" logic modules (1 to 3), are available.
Schematic

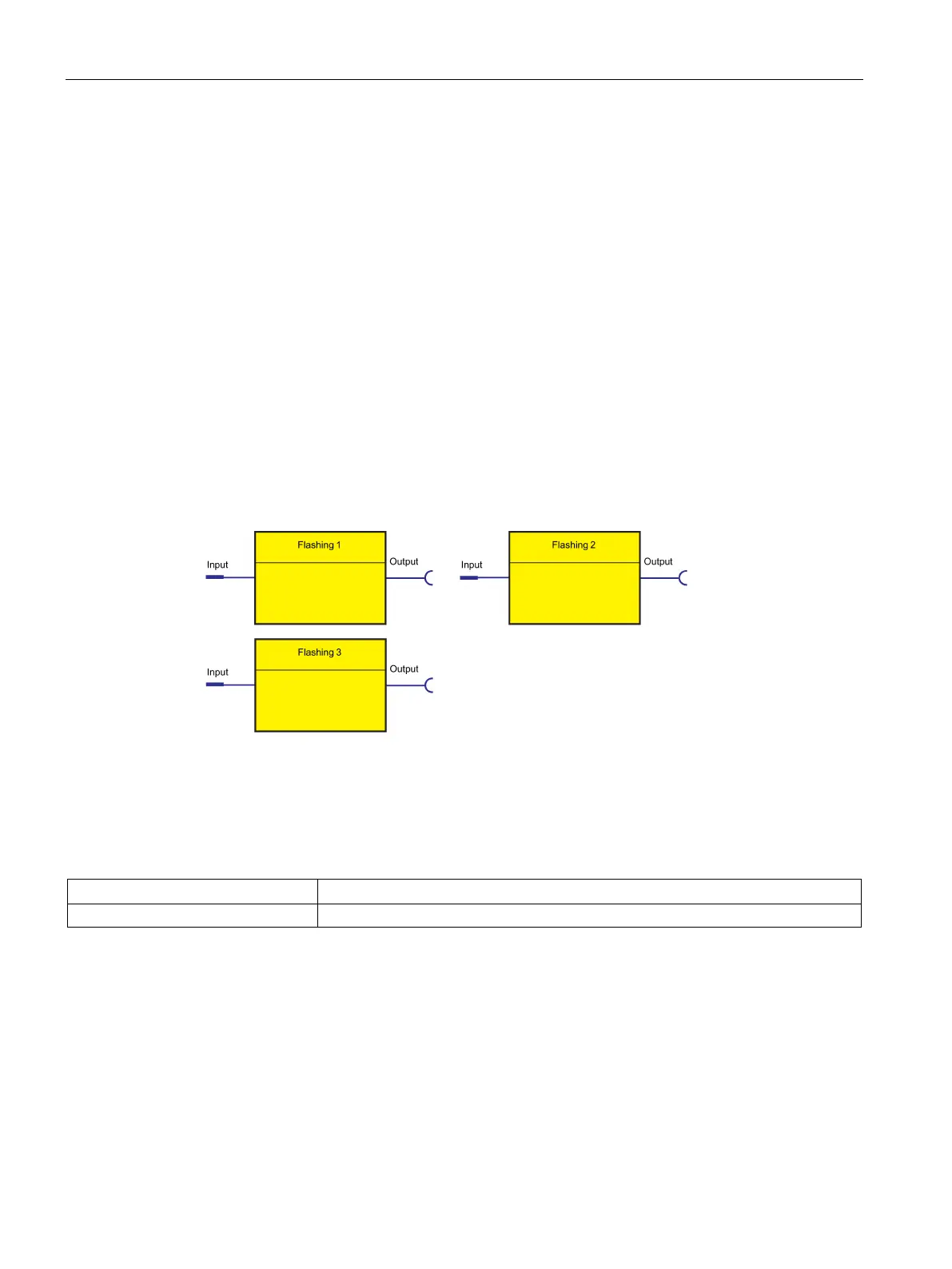

The following schematic shows the "Flashing" logic modules:
Figure 4-103 "Flashing" logic modules
Settings
Table 4- 94 Flashing settings
Flashing 1 to 3
Description
Input
Activation by any signal (any sockets, e.g. device inputs, events, status, etc.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
