Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
255
You can use the "Flicker" logic modules to assign the "Flicker" function to the operator-panel
LEDs, for example.
The "Flicker" function block provides an output signal with a frequency of 4 Hz when an input
signal is present.
The function block consists of:
● one plug
● one logic component
● one socket
A total of three logic modules, "Flicker" (1 to 3), are available.

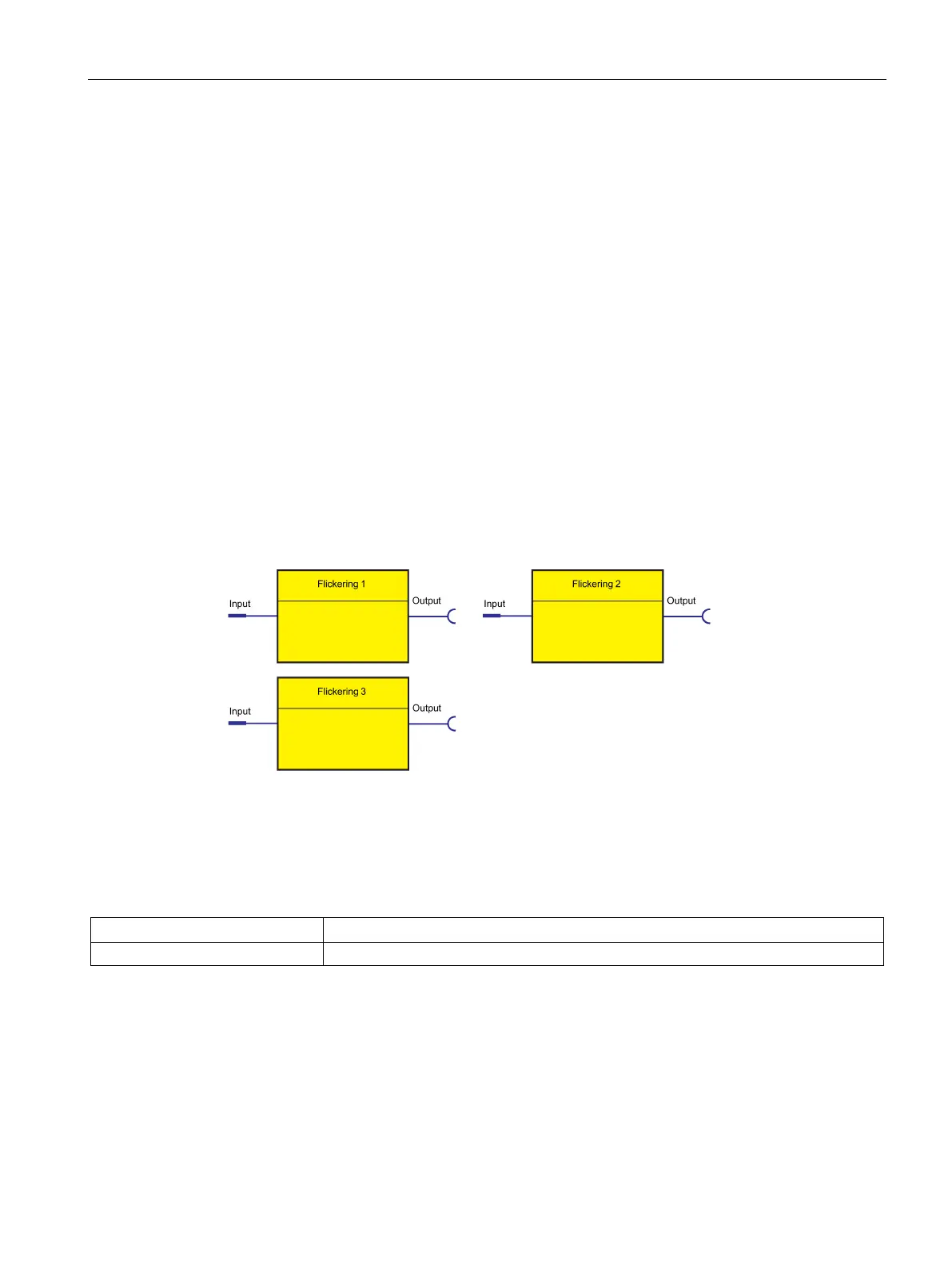

The following schematic shows the "Flicker" logic modules:
Figure 4-104 "Flicker" function blocks
Table 4- 95 Flicker settings
Activation by any signal (any sockets, e.g. events, etc.)
