Function blocks
2.2 Function blocks - overview
SIMOCODE pro - Parameterize
20 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Function block

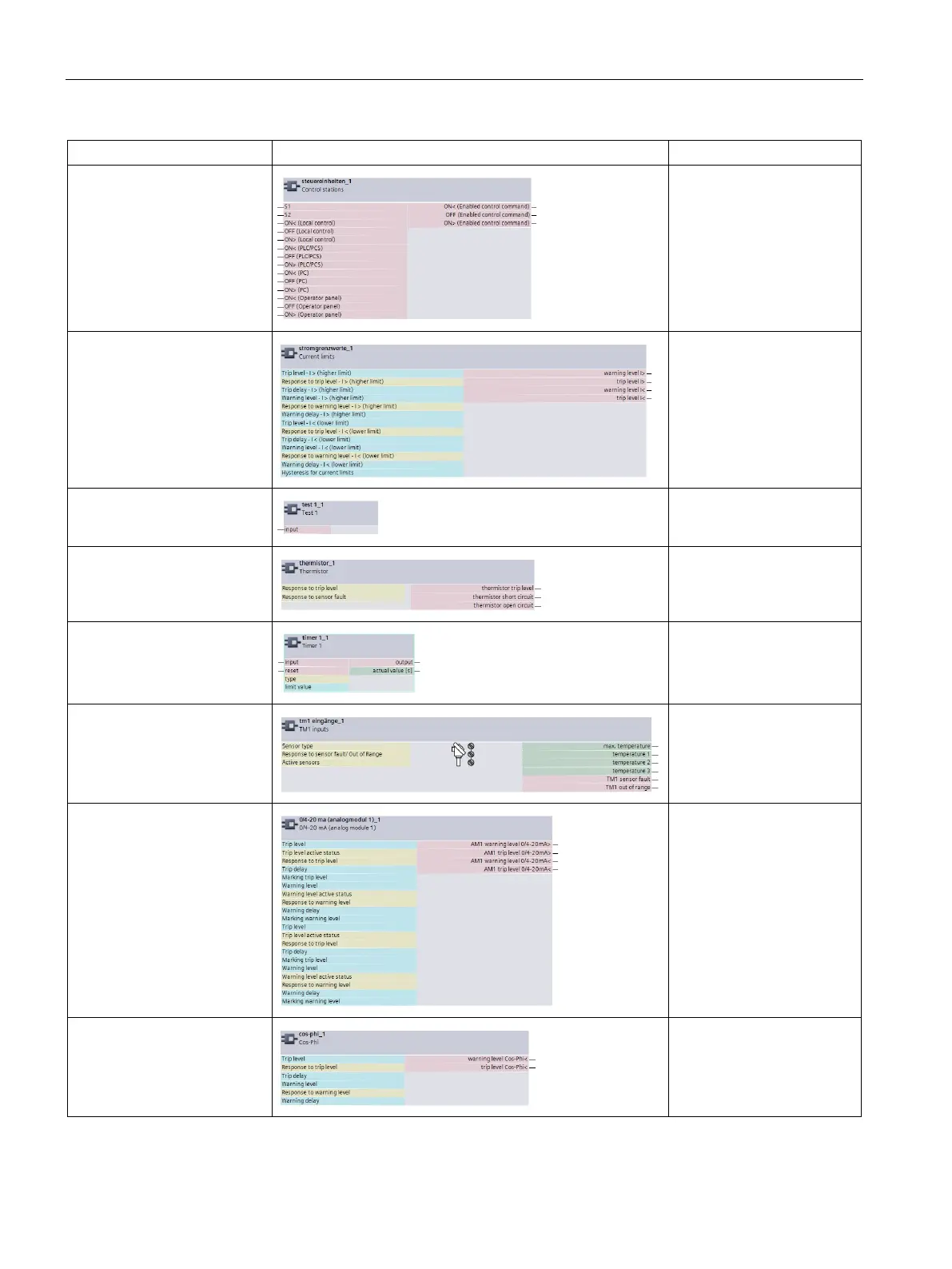

View in SIMOCODE ES
Section
Control stations See Control stations
(Page 52)
Current limits See Current limit monitoring
(Page 135)
Test 1 (2) See Test / Reset
(Page 204)
Thermistor See Thermistor protection
(Page 50)
Timer 1 (2, 3, 4, 5, 6) See Timer (Page 242)
Temperature module 1/2
inputs
See Temperature module
inputs (Page 192)
Monitoring 0/4-20 mA (analog
module 1, 2)
See 0/4 ... 20 mA
monitoring (Page 147)
Cos phi monitoring See Cos phi monitoring
(Page 143)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
