Siemens SIMOCODE pro Operating Manual

Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
236 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Circuit and parameterization

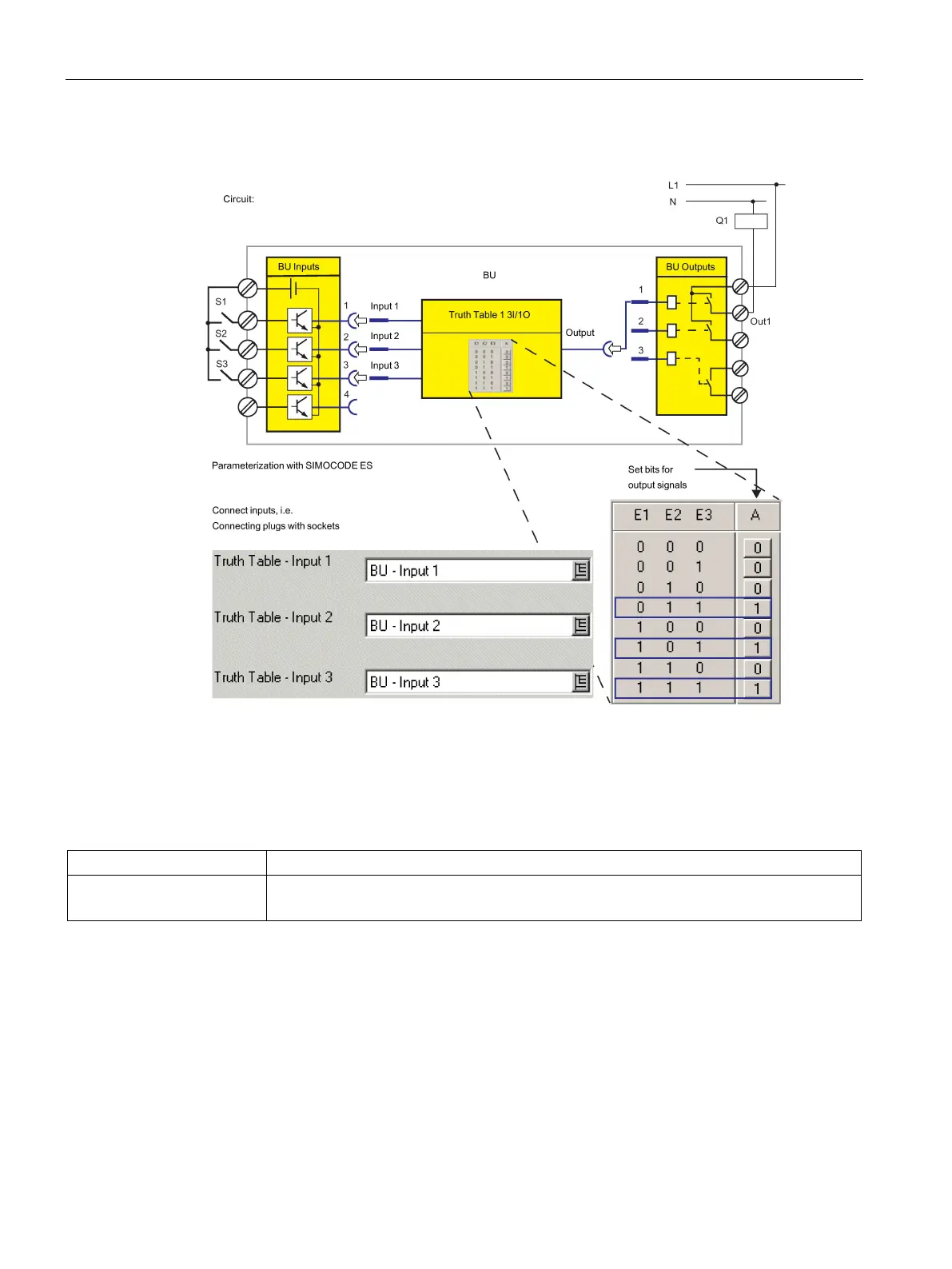

Figure 4-91 Example circuit and parameterization for truth table 3I / 1O
Settings
Table 4- 85 Settings for truth table 3I/1O
Truth table for 3I / 1O
Description
Inputs 1 to 3 Activation of the truth table by any signal (any sockets, e.g. device inputs, communication
bus control bits, etc.)
