Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
245
Output response of the timer
For
● SIMOCODE pro C basic unit
from
version *E05*
● SIMOCODE pro V PB basic unit
from
version *E03*
● SIMOCODE pro S basic unit
● SIMOCODE pro V PN basic unit

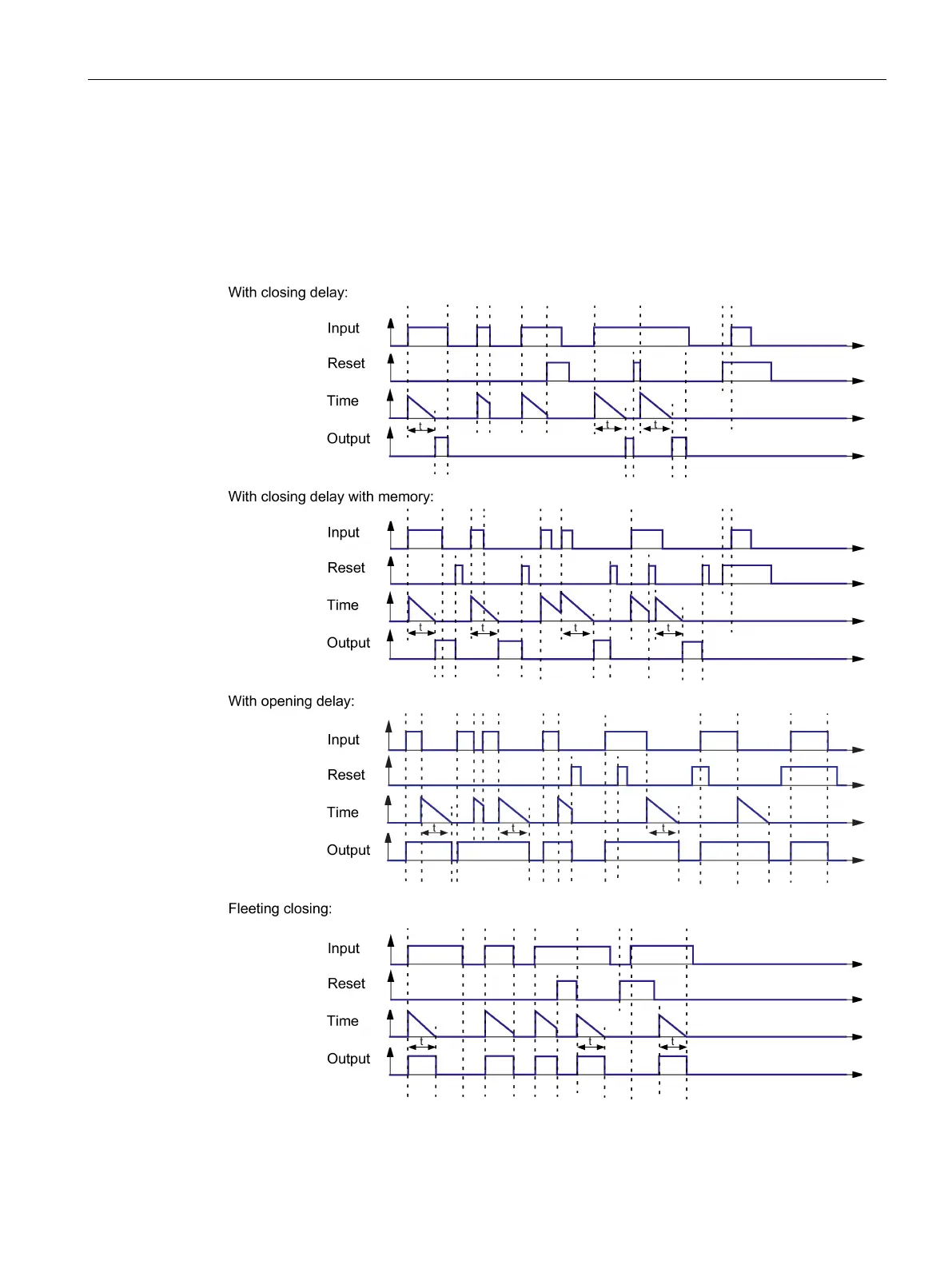

Figure 4-98 Output response of timers (SIMOCODE pro C basic unit as from version *E05* and
SIMOCODE pro V PB basic unit as from version *E03*)
