Parameters
4.8 Logic modules
SIMOCODE pro - Parameterize
248 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Schematic

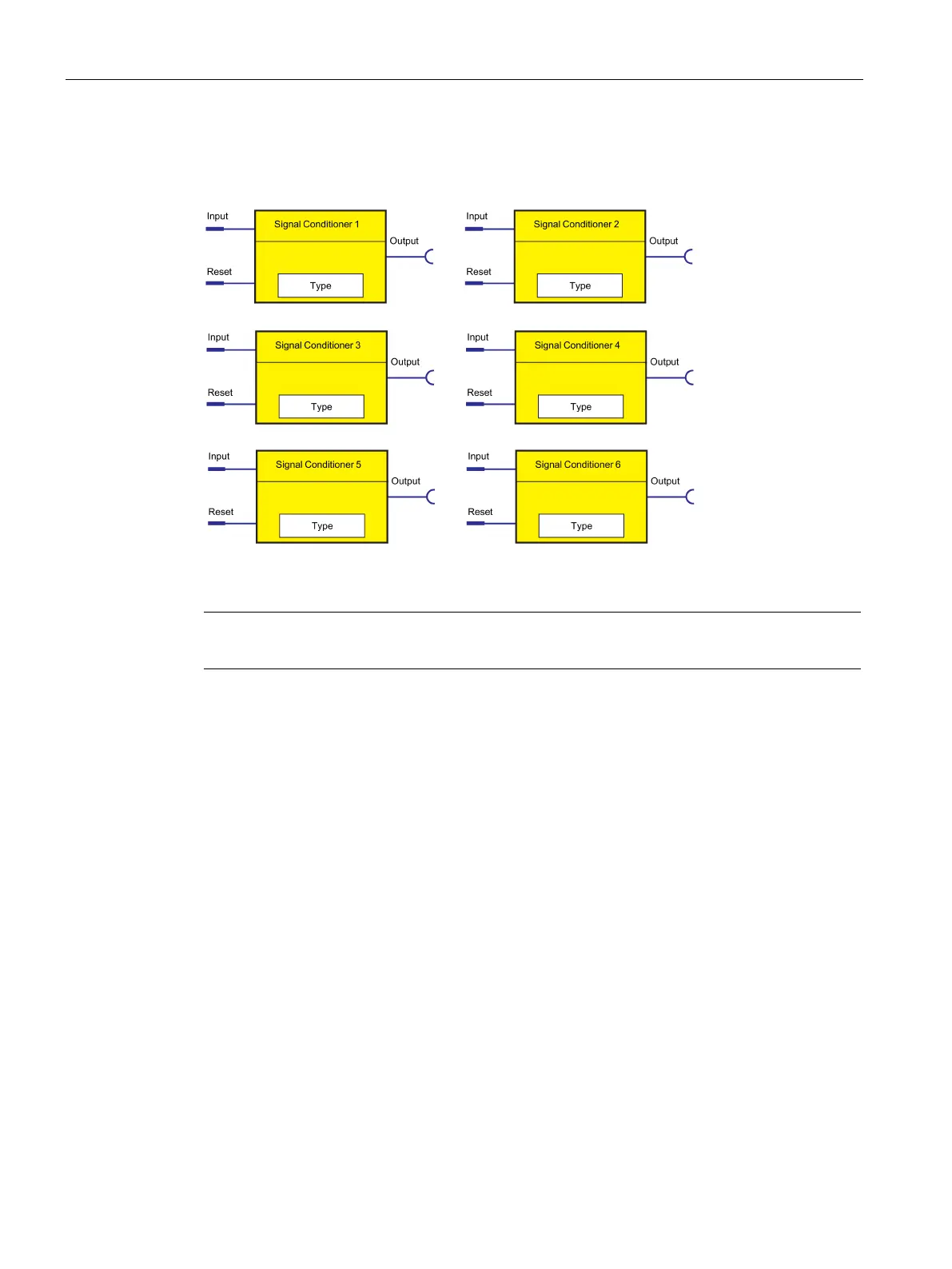

The following schematic shows the "Signal conditioning" logic modules:
Figure 4-99 "Signal conditioning" logic modules
Note
The output is always 0 if a reset is pending.
