Parameters
4.2 Motor control
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
59
Example of enabled commands
The following diagram shows an example of enabled commands for the "Local 2" operating
mode, "Dahlander reversing starter" control function:

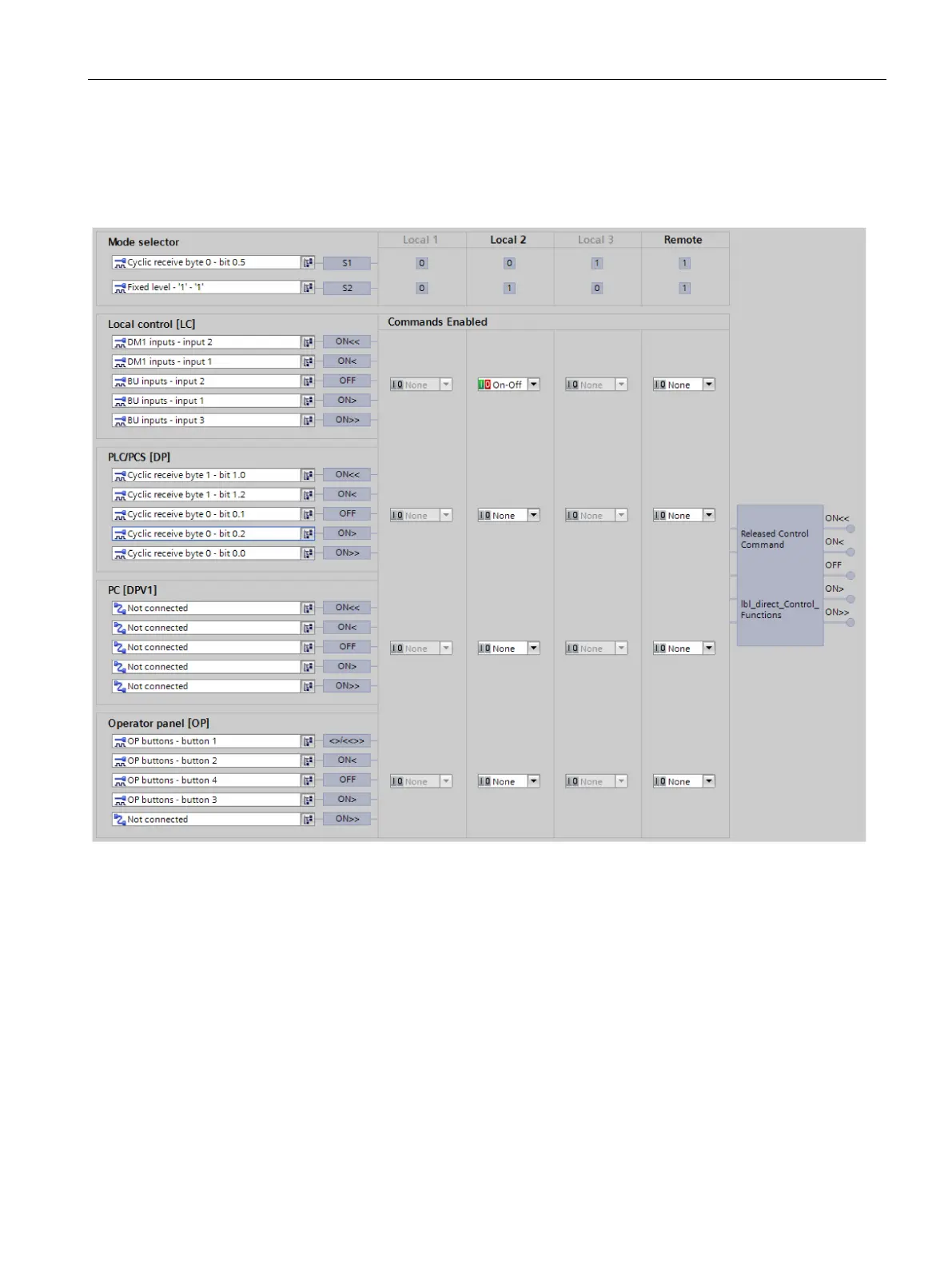

Figure 4-9 Example of enabled commands
In the example, the motor can only be switched on and off in the "Local 2" operating mode
via the buttons (local) connected to the inputs of the basic unit and the digital module.
