CU305 Control Units
7.6 Dimension drawings
SINAMICS S110
162 Manual, 07/2015, 6SL3097-4AC10-0BP5
7.6.2
Dimension drawing CU305 DP/CAN

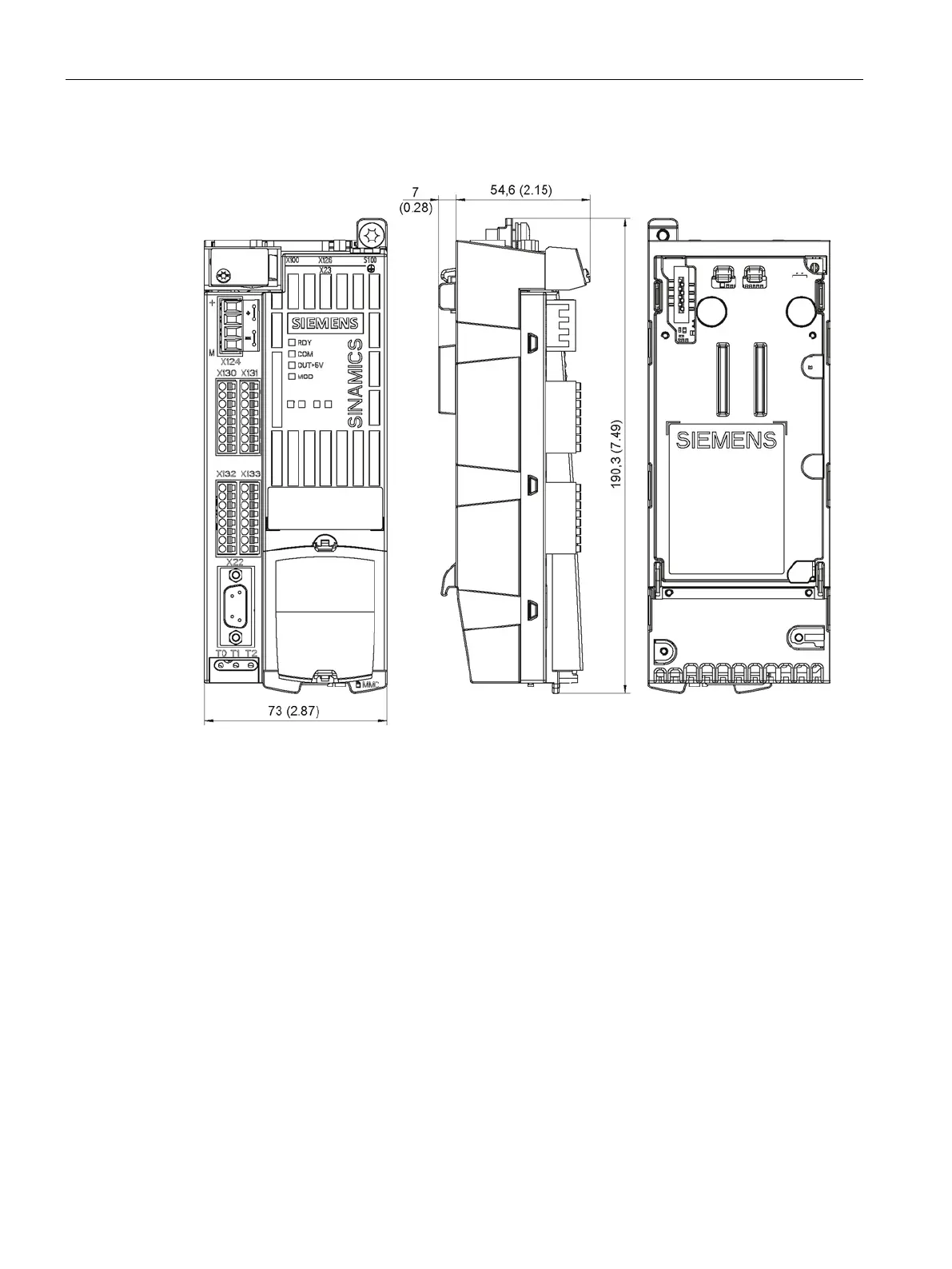

Figure 7-13 Dimension drawing of Control Unit CU305 DP and CU305 CAN, all data in mm and
(inches)
