Supplementary system components and encoder system integration
8.3 Sensor Module Cabinet-Mounted SMC20
SINAMICS S110
Manual, 07/2015, 6SL3097-4AC10-0BP5
187
8.3.5
Dimension drawing

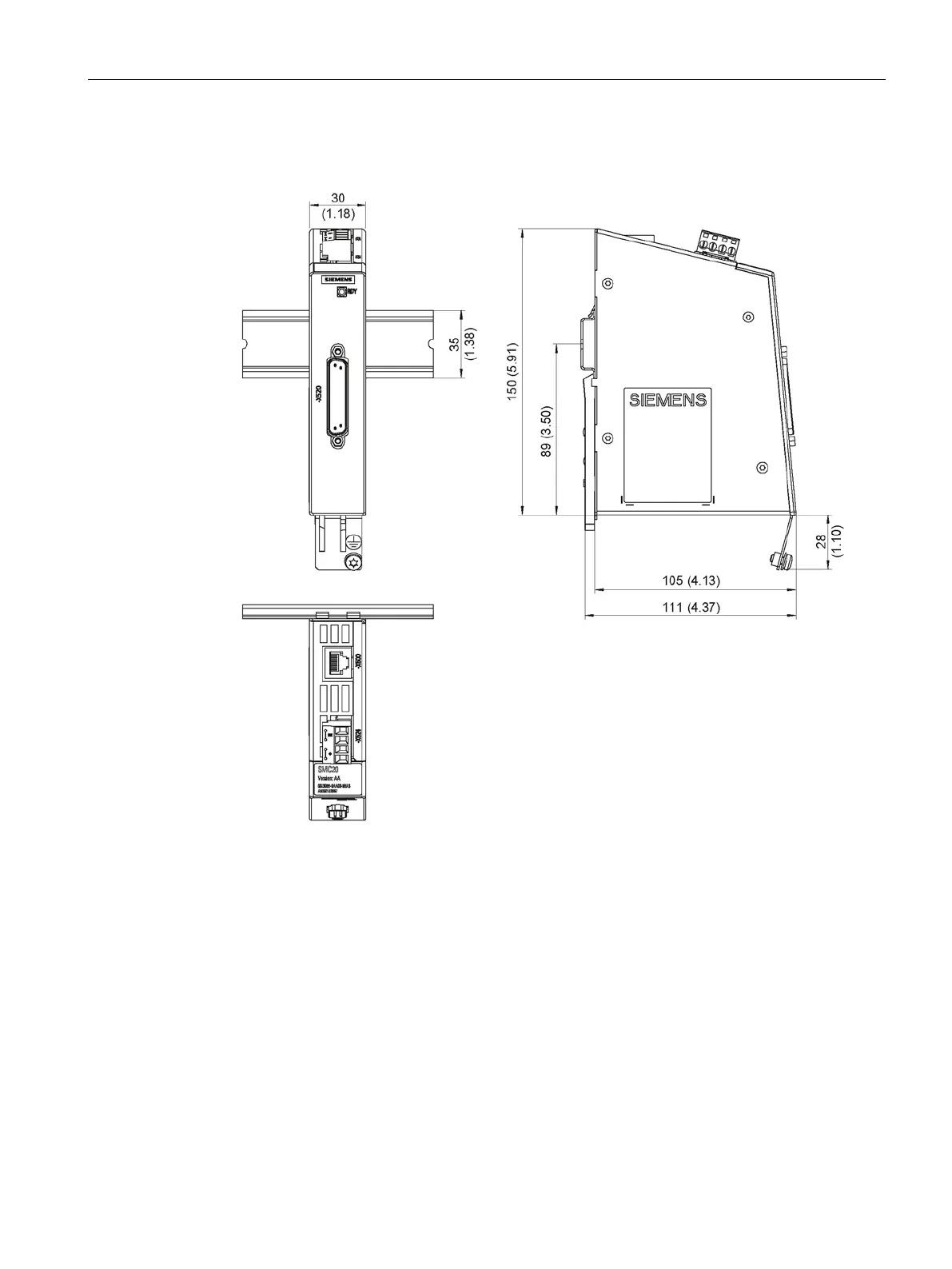

Figure 8-8 Dimension drawing of the Sensor Module Cabinet SMC20, all data in mm and (inches)
