Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
101

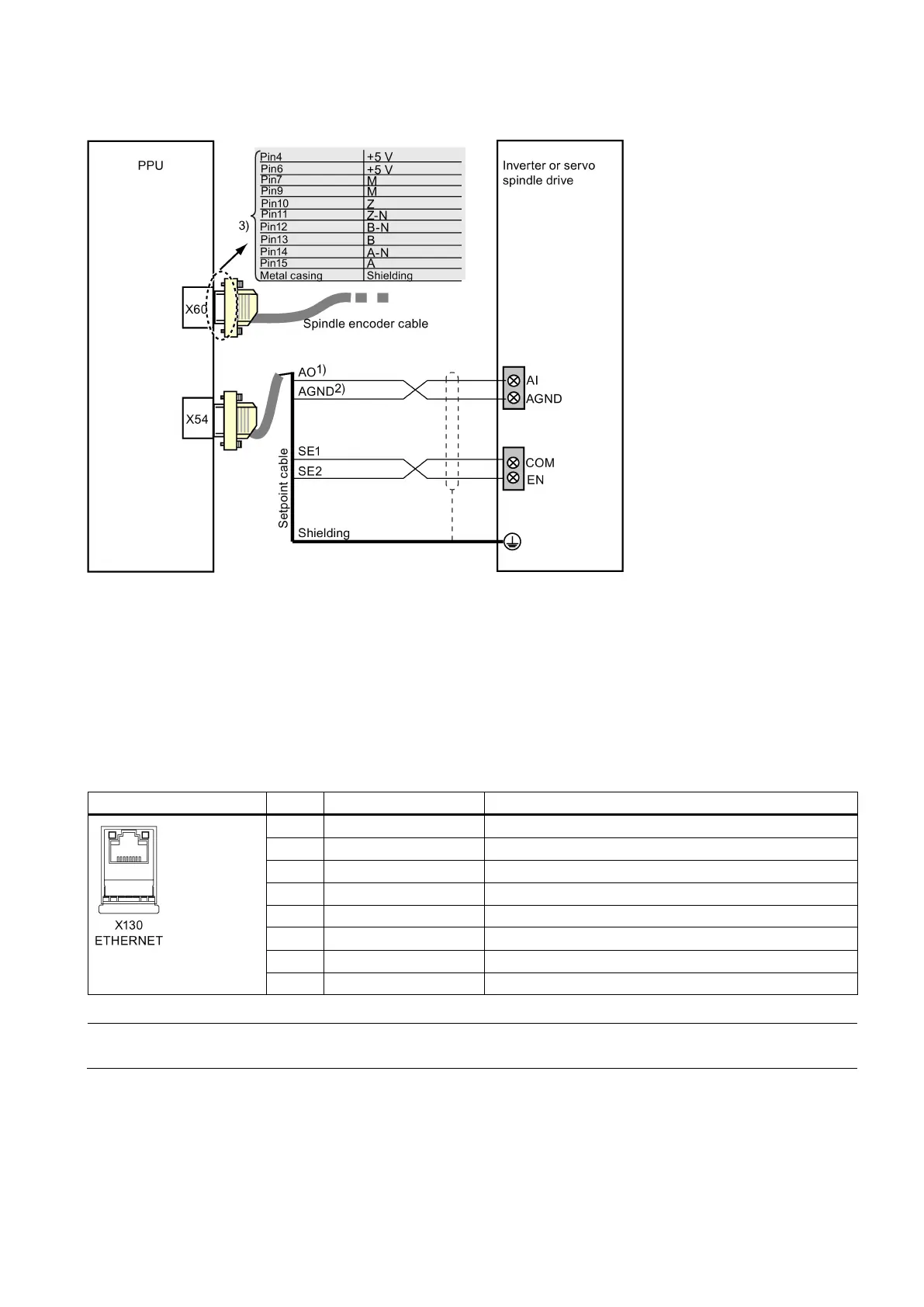

Connecting the inverter or servo spindle drive (bipolar)
1)
+/- 10 V analog voltage
2)
0 V signal
3)
Use twisted pair cables for signals A/A_N, B/B_N, Z/Z_N, and +5 V/M.
4.2.13
Ethernet interface - X130
Pin assignment
Type
8-pin RJ45 socket
Cable
Type: Ethernet cable
Illustration
Pin
Signal
Comment
1
MX1+
Data 1
2
MX1-
Data 1
3
MX2+
Data 2
4
MX3+
Data 3
5
MX3-
Data 3
6
MX2-
Data 2
7
MX4+
Data 4
8
MX4-
Data 4
Note
The length of the Ethernet cable must be less than 30 m or the communication will be unstable.
