Commissioning Manual

01/2017

471

A.1.2

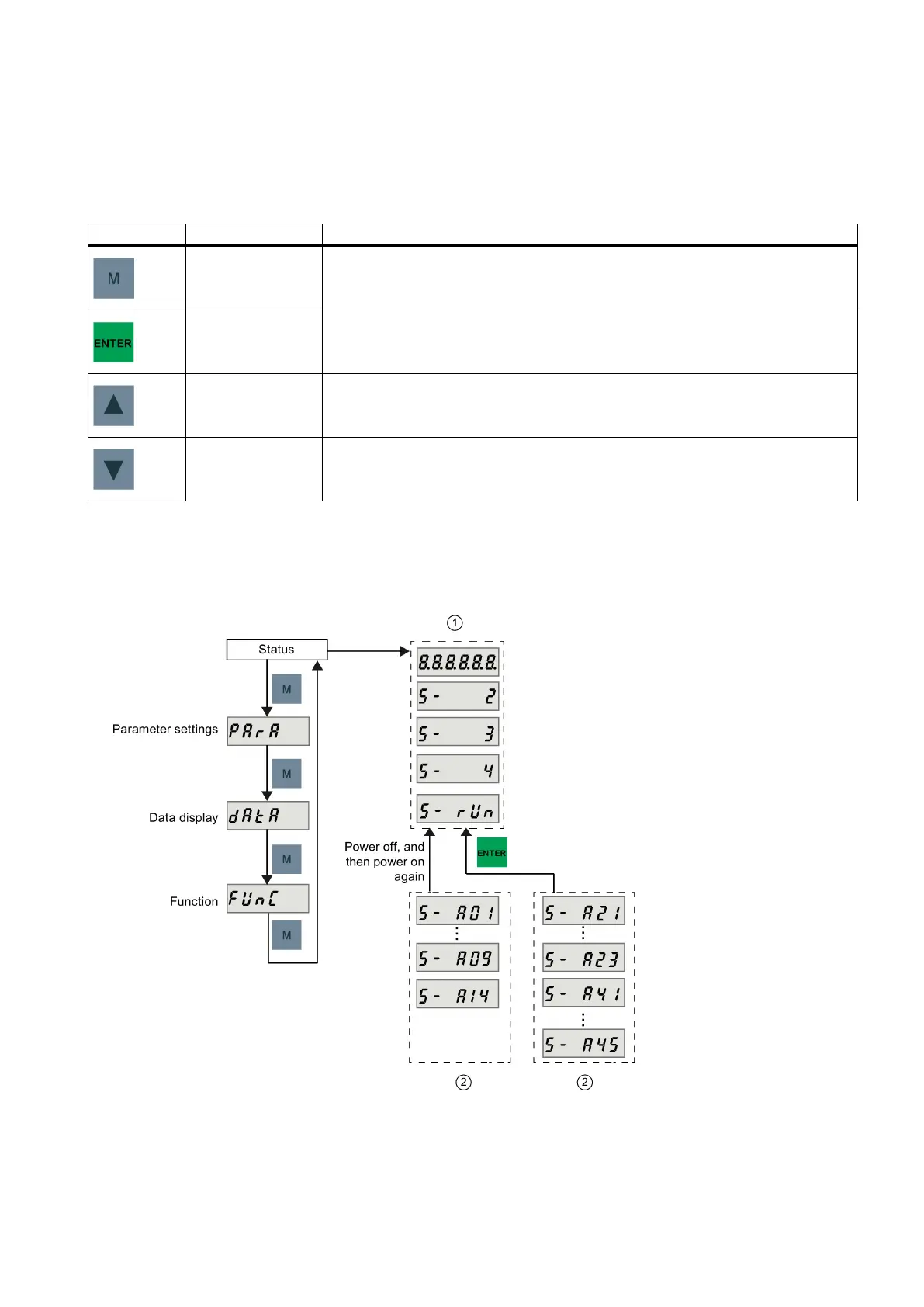

Operating the SINAMICS V60 Basic Operator Panel (BOP)

A.1.2.1

BOP overview

Button functions

Button

Description

Function

Mode selection

button

•

Exits from current menu

• Switches between operating modes in the top level menu

Enter button

•

Go to next lower-level menu item or back to higher-level item

• Confirm value (save modified value into RAM) or cancel an alarm

UP button

•

Navigates to next item

• Increases a value

• JOG in CW (clockwise)

DOWN button

•

Navigates to previous item

• Decreases a value

• JOG in CCW (counter-clockwise)

A.1.2.2

Main menu

Menu structure

①

Normal status display

②

Alarm status display
