A.2
Replacing the fan for the V70 drive

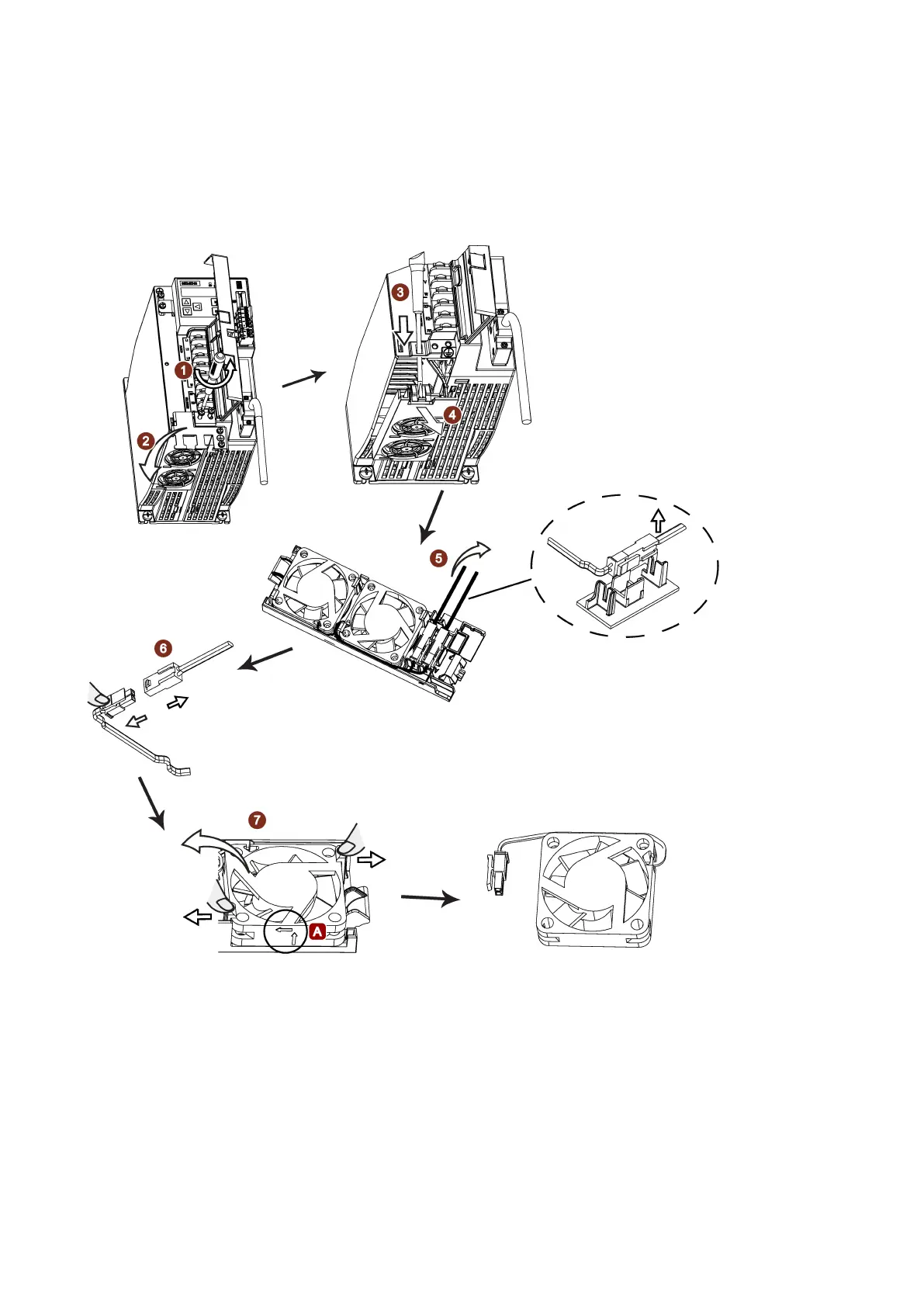

Proceed as illustrated below to remove the fan from the drive. To re-assemble the fan, proceed in reverse order. When re-
assembling the fan, make sure that the arrow symbol ("
A
" in the illustration) on the fan points to the drive rather than the fan
housing.
Replacing the fan for V70 FSB
