Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
476 01/2017

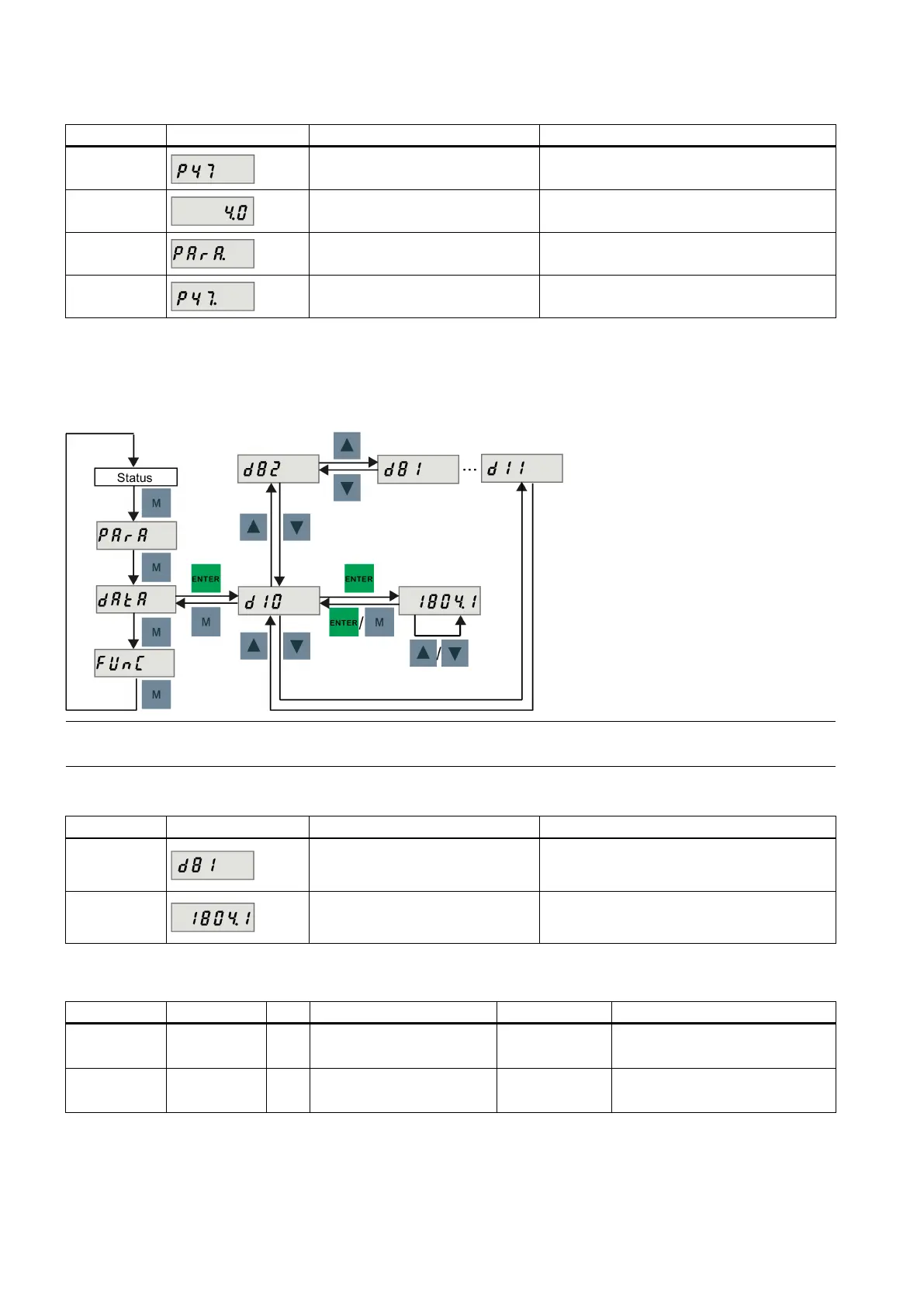

BOP display
Display
Example
Description
Preconditions for display of normal status
Pxx Parameter number -
xxxx.x/xxxx.xx Parameter value -
Para. At least one parameter is changed
without saving
-
Pxx. This parameter is changed without
saving
-
A.1.2.5
Data display menu
Display and settings
Note
For detailed description of display data, see Section "
SINAMICS V60 parameters (Page 427)".
BOP display
Display
Example
Description
Preconditions for display of normal status
dxx
Display data number -
xxxxx/xxxx.x/x
x.xx
Display data value -
A.1.2.6
Setpoints from the PPU
Machine Data
Designation
Unit
Axis
Setpoint
Description
31020 ENC_RESOL PPR X, Z (808D Turning)
X, Y, Z (808D Milling)
10,000 Encoder revolution (2,500) x Mul-
tiplier (4)
31400 STEP_RESO
L
IPR X, Z (808D Turning)
X, Y, Z (808D Milling)
10,000 Steps per servo motor revolution
