Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
36 01/2017
2.1.2.2
PPU and MCP

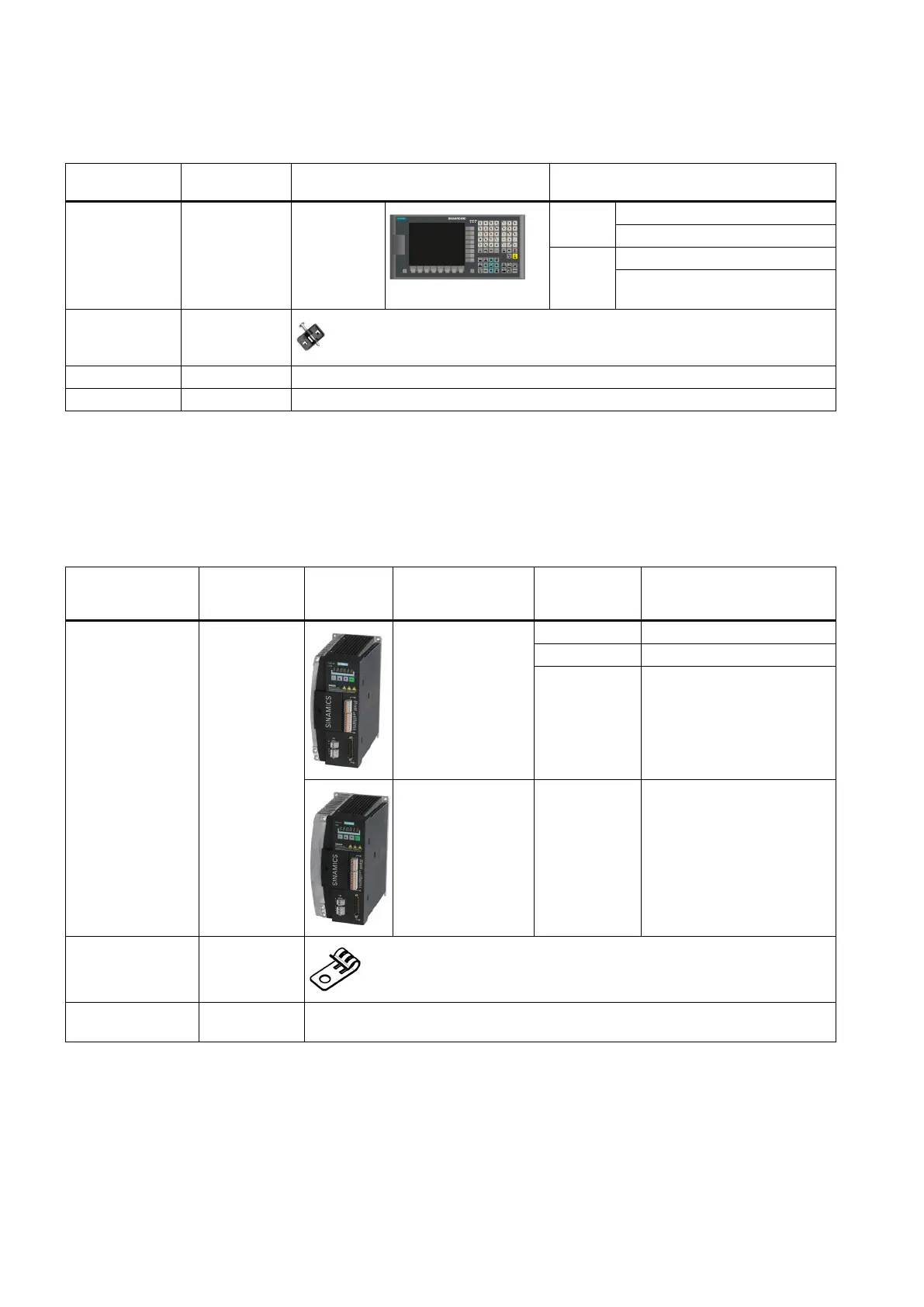

Components in the PPU package
Component
Quantity (piec-
es)
Illustration
Article number
PPU141.2 1 Horizontal
variant
Turning
6FC5370-1AT02-0AA0 (English)
6FC5370-1AT02-0CA0 (Chinese)
Milling
6FC5370-1AM02-0AA0 (English)
6FC5370-1AM02-0CA0 (Chi-
nese)
Mounting
clamps with
screws
8
Connectors 8 Seven I/O connectors and one 24 V power input connector
Readme file
1
Third-party software - Licensing terms and copyright information
Components in the MCP package
The components in the MCP packages for the SINUMERIK 808D ADVANCED control system and for the SINUMERIK 808D
control system are the same. For more information, see Section "PPU and MCP (Page 18)".
2.1.2.3
Drives and motors
Components in the drive package
Component
Quantity (piec-
es)
Illustration
Outline dimension
(Width × Height ×
Depth, mm)
Rated output
current (A)
Article number
SINAMICS V60 1 106 × 226 × 200
4 A
6SL3210-5CC14-0UA0
6 A
6SL3210-5CC16-0UA0
7 A 6SL3210-5CC17-0UA0
123 × 226 × 200 10 A 6SL3210-5CC21-0UA0
Shielding plate 2
User documenta-
tion
1 Getting Started
