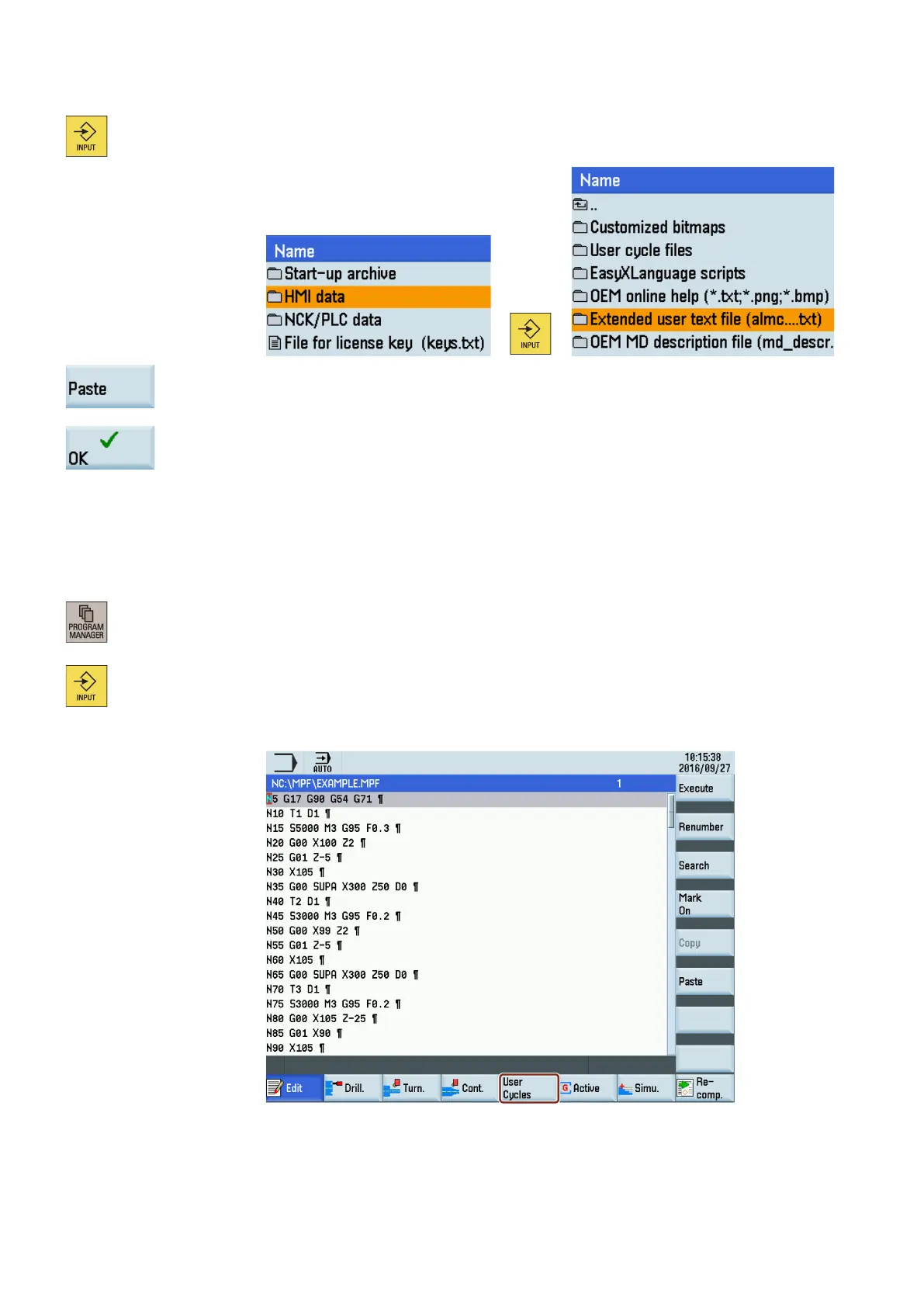

Find the folder for storing the extended user text file through the following opera
tions, and
press this key to open it:
Press this softkey to paste the extended user text file.
Press this softkey when a message appears prompting you to restart the HMI. The new
data will be active after the HMI restarts successfull
y.
Calling the created user cycle
After you transfer all the files necessary for your own cycle to the control system, the cycle is created successfully. Then you
can call the cycle in the program editing operating area.
Proceed as follows to call the created cycle, for example, CYCLE100.
gram management operating area.
ed part program and press this key to open it in the program editor.
Then you can see the softkey you define at the fifth horizontal softkey, for exam
ple:
To Next Page
