Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
18 01/2017
2.1.1.2
PPU and MCP

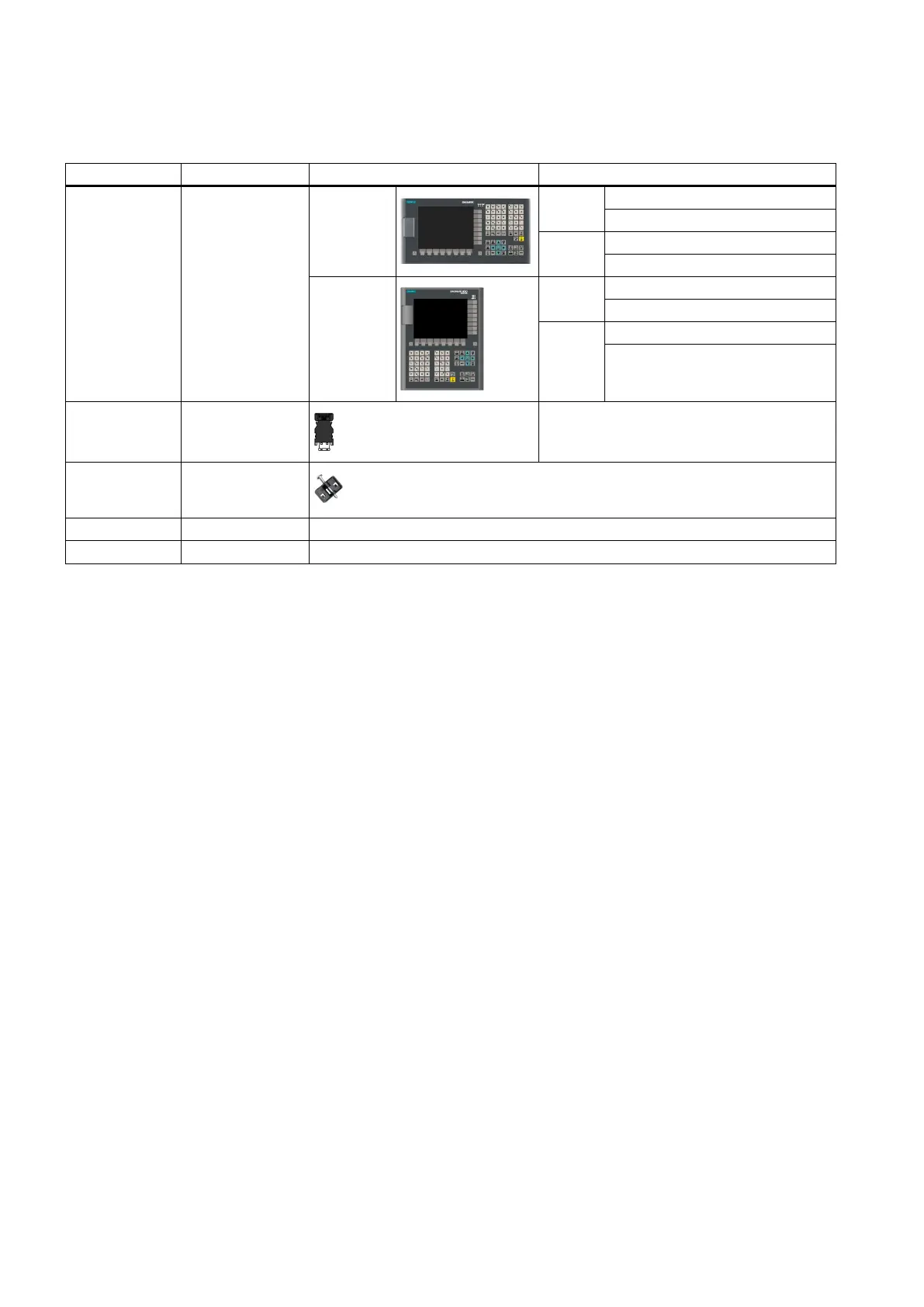

Components in the panel processing unit (PPU) package
Component
Quantity (pieces)
Illustration
Article number
PPU 1 Horizontal
version
(PPU161.3)
Turning
6FC5370-2AT03-0AA0 (English)
6FC5370-2AT03-0CA0 (Chinese)
Milling
6FC5370-2AM03-0AA0 (English)
6FC5370-2AM03-0CA0 (Chinese)
Vertical
version
(PPU160.2)
Turning
6FC5370-2BT02-0AA0 (English)
6FC5370-2BT02-0CA0 (Chinese)
Milling
6FC5370-2BM02-0AA0 (English)
6FC5370-2BM02-0CA0 (Chinese)
Drive Bus termi-
nator
1 6FC5548-0BA21-0AA0
Mounting
clamps with
screws
• PPU161.3: 8
• PPU160.2: 10
Connectors
8
Seven I/O connectors and one 24 V power input connector
Readme file
1
Third-party software - Licensing terms and copyright information
