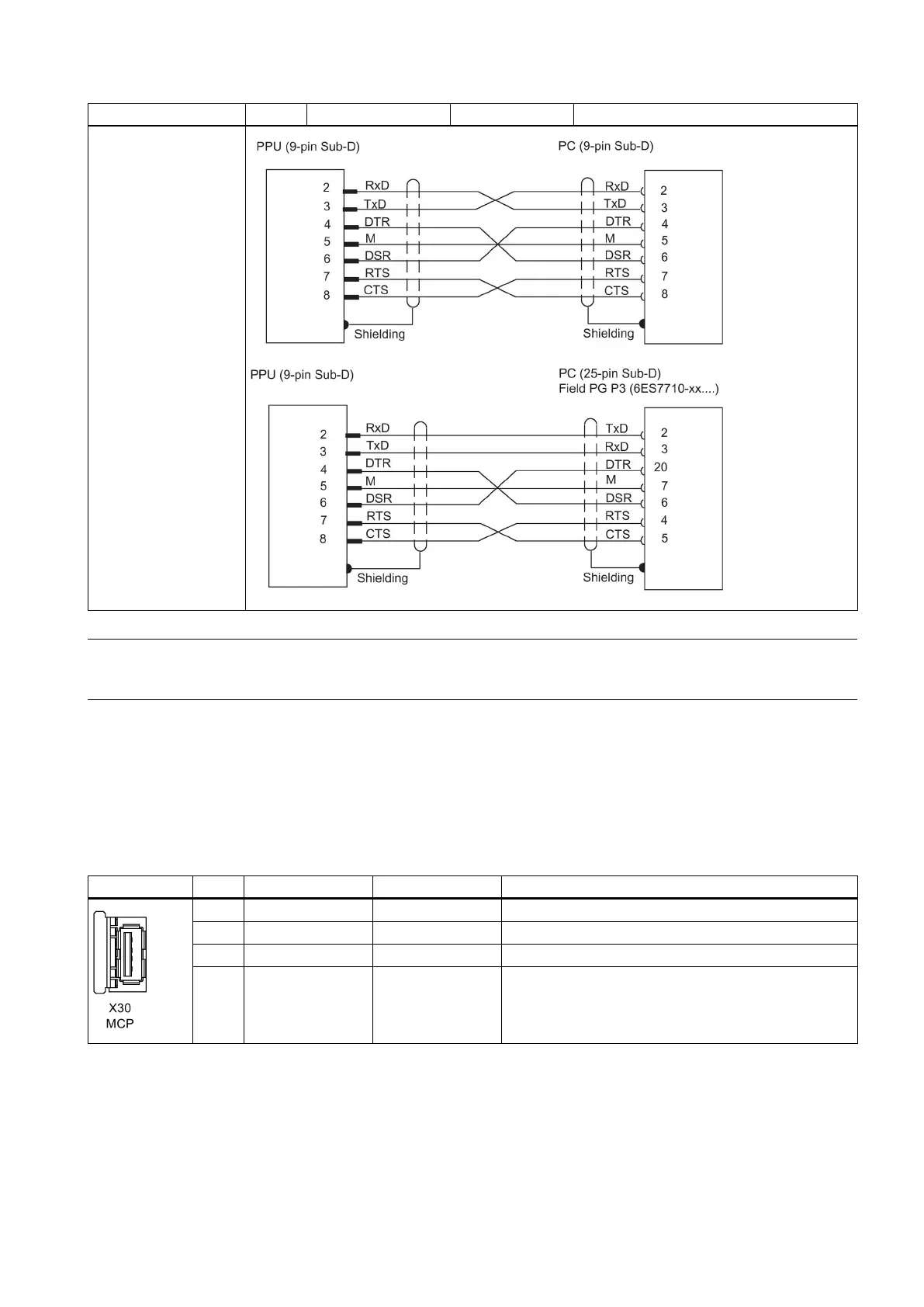

Commissioning Manual
01/2017
103
Illustration
Pin
Signal name
Signal type
Comment
Note
Use only shielded twisted pair cables; You must connect the cable shield to the metal or metal
ized connector casing of the
control system.
4.2.16
USB interface - X30
There is a USB interface on the back of the PPU. This USB interface is used for connecting with the MCP.
Pin assignment
Type
USB socket, type A Combicon 4-pin
Cable
Type: USB cable (0.5 m)
Illustration
Pin
Signal name
Signal type
Comment
1
P5_USB0
VO
5 V power supply
2
DM_USB0
I/O
USB data-
3
DP_USB0
I/O
USB data+
4 M VO Ground
