Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
238 01/2017
No.
Name
Unit
Range
Description
34093[0] REFP_CAM_MARKER_DIST mm - Distance between the reference cam and the first
zero mark
34100[0]
REFP_SET_POS
mm
-
Reference point position for incremental system
34200[0]
ENC_REFP_MODE
-
0 to 8
Referencing mode
34210[0]
ENC_REFP_STATE
-
0 to 3
Adjustment status of the absolute encoder
34220[0]
ENC_ABS_TURNS_MODULO
-
1 to 100000
Modulo range for the rotary absolute encoder
34230[0]
ENC_SERIAL_NUMBER
-
-
Encoder serial number
Note
You must set the length of the reference cam based on the velocity set by MD34020. An axis can stop above the cam after it
approaches the cam at the velocity set by MD34020 and then decelerates to "0".

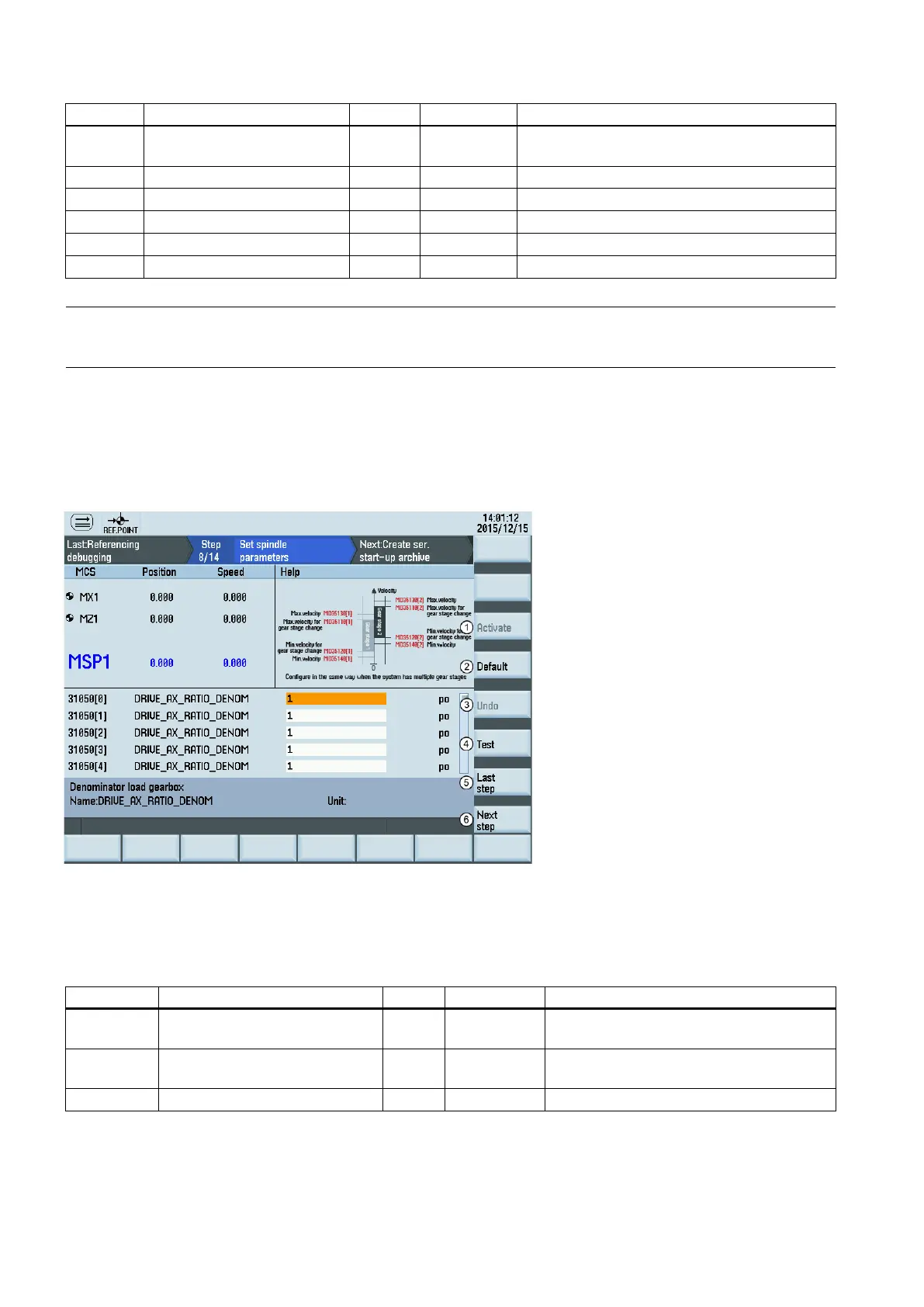

7.4.3
Setting spindle parameters
The control system controls one analog or digital spindle. You can commission the spindle by setting the relevant machine
data under this commissioning step.
Softkey functions
①
Activates the modified values
④
Switches to "MDA" mode for program test
②
Resets the value of the selected parameter to default
⑤
Returns to the last step
③
Cancels the last change to the parameter
⑥
Proceeds t
o the next step
Relevant machine data
No.
Name
Unit
Range
Description
31050[1...5] DRIVE_AX_RATIO_DENUM - 1 to
2147000000
Denominator load gearbox
31060[1...5] DRIVE_AX_RATIO_NUMERA - 1 to
2147000000
Numerator load gearbox
32020
JOG_VELO
rpm
-
Jog axis velocity
