3.2.2
Mounting the SINAMICS V60 drive
3.2.2.1
Mounting orientation and clearance

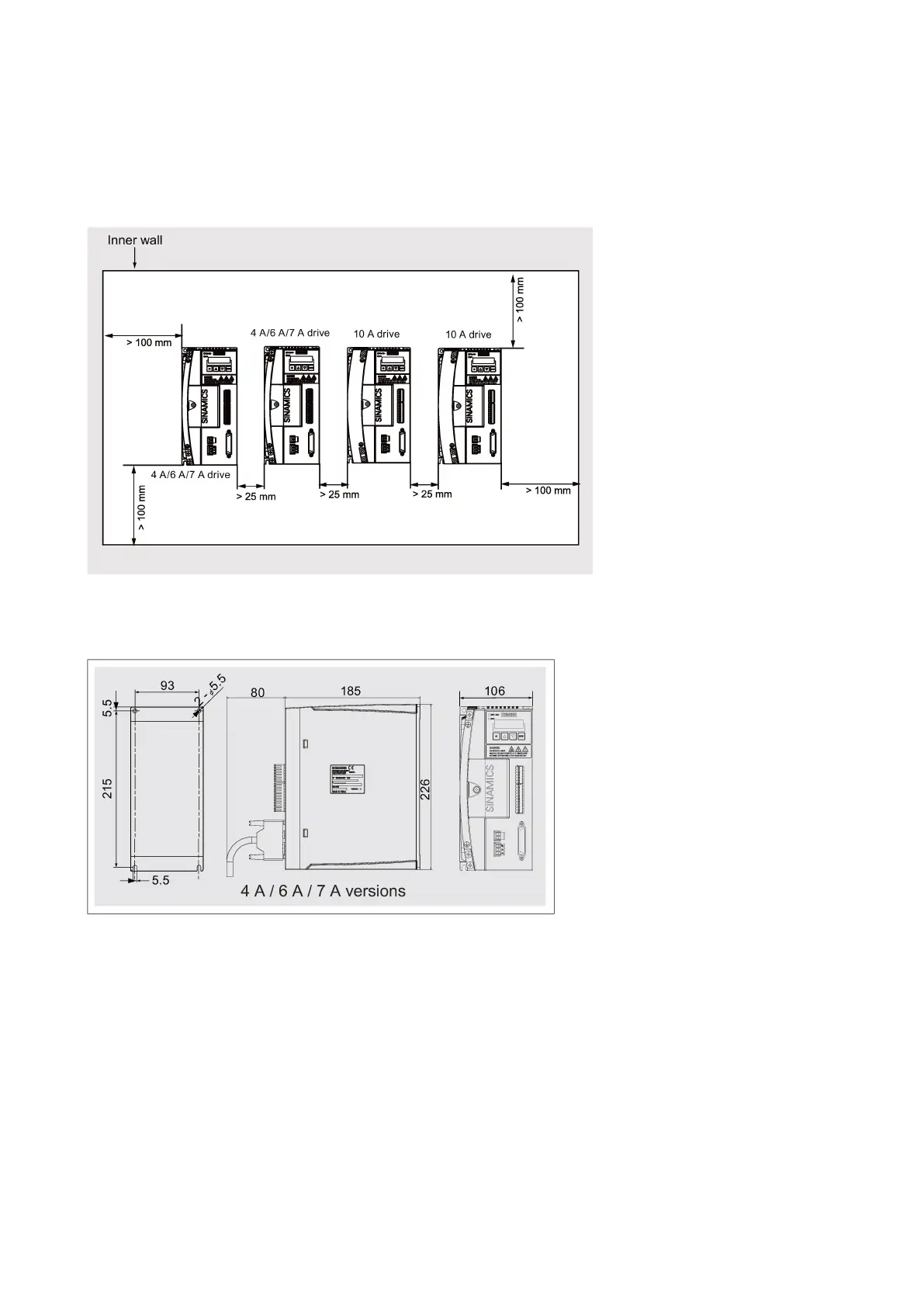

Mount the drive vertically to the back plate of a shielded cabinet (non-painted) and observe the mounting clearances
specified in the illustration below:
3.2.2.2
Drill patterns and outline dimensions
4 A/6 A/7 A versions
