Commissioning Manual
01/2017
59
Note

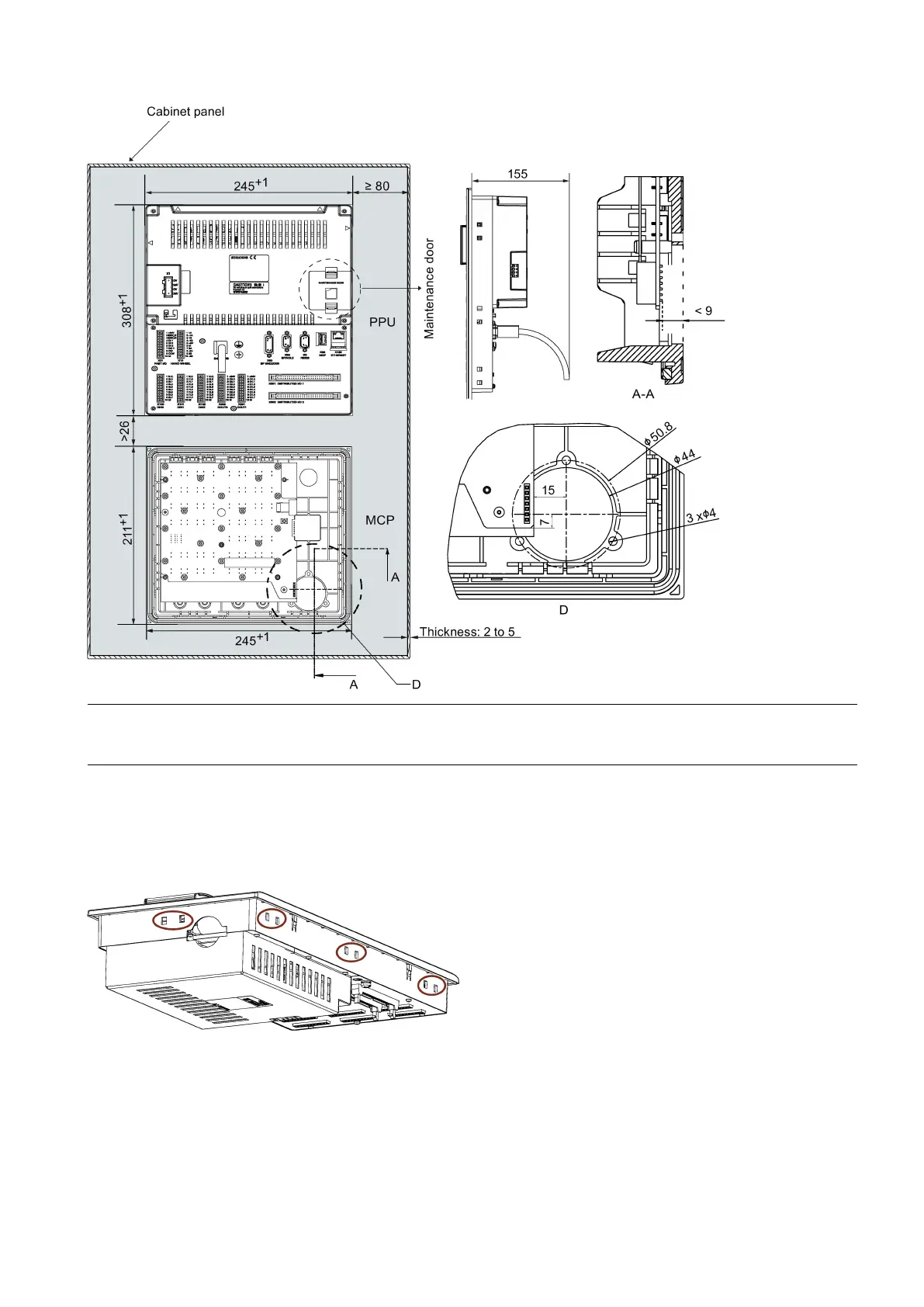

When mounting a horizontal PPU together with a vertical MCP or vice versa, follow the requirement for the clearance
between a vertical PPU and a vertical MCP shown above.
Mounting the PPU and MCP with the companion clamps
Use the companion clamps (8 for PPU161.3/PPU141.2, 10 for PPU160.2, 6 for the horizontal MCP, and 8 for the vertical
MCP) to fix the PPU and MCP to the cabinet panel. You can find the mounting positions (circled) on the PPU and MCP. The
distance between two mounting holes of each mounting position is 21 mm.
