Printing customized MCP strips

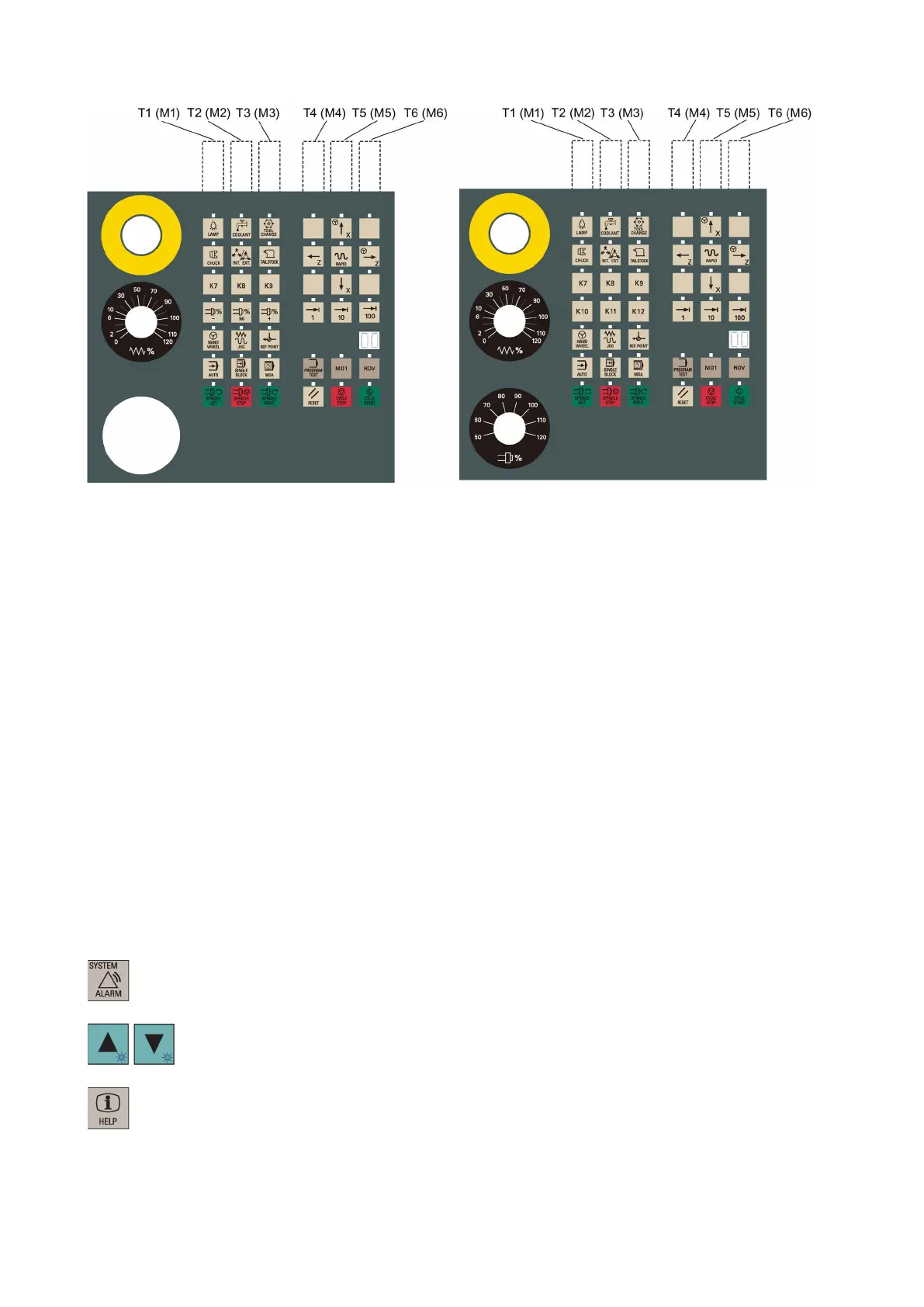

Siemens provides you a symbol library for customized MCP keys. You can print customized strips with the A4-size blank
paper included in the delivered MCP package. You can find the symbol library in the Toolbox
(...\examples\SINUMERIK_808D_ADVANCED\MCP).
Siemens also provides you with a template file for printing customized strips. Key positions in the template accord with real
key layout on the MCP. You can copy symbols from the symbol library and paste them to the key positions where you want
to use customized symbols. You can find the template file in the Toolbox
(...\examples\SINUMERIK_808D_ADVANCED\MCP).
Cutting customized MCP strips
The delivered A4-size paper has been pre-cut with boundaries. You just need to tear them off after printing customized
symbols.
A.8
Diagnostics
A.8.1
SINUMERIK 808D/SINUMERIK 808D ADVANCED alarms
Some alarms may occur during the commissioning work. For more information about the alarms, see the SINUMERIK
808D/SINUMERIK 808D ADVANCED Diagnostics Manual.
Calling help information for an alarm
You can call the help information for an active alarm on the PPU by proceeding through the following steps:
1.
Select the alarm operating area.
2.
Select the desired alarm using the cursor keys.
3.
Press this key to call the help information for the selected alarm.
