Commissioning Manual
480 01/2017
A.3

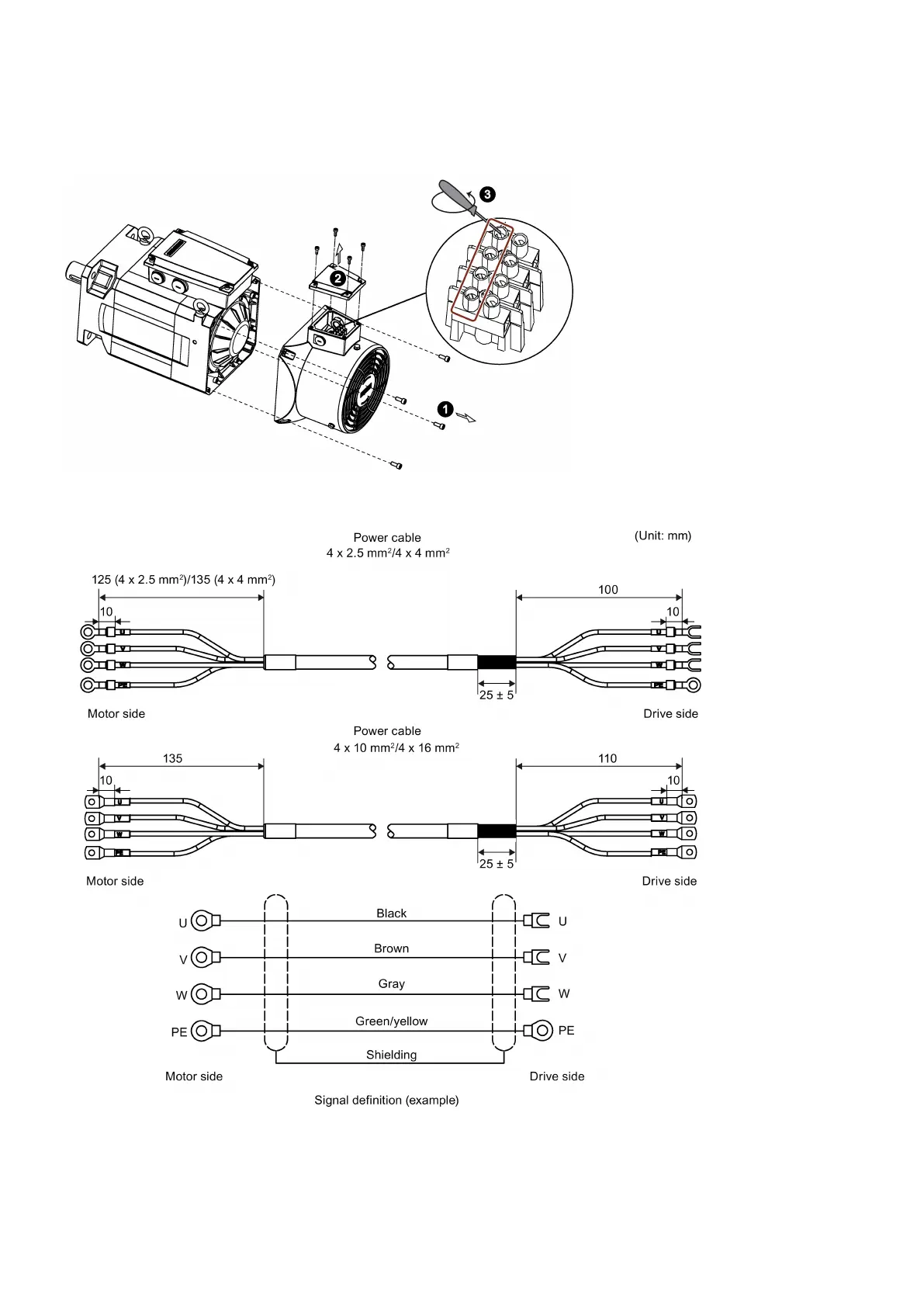

Replacing the fan for the 1PH1 motor
Proceed through the steps as illustrated below to remove the fan from the motor. To reassemble the fan, proceed in reverse
order.
A.4
Assembling the power cable for the 1PH1 motor
For more information about selecting a proper power cable for the 1PH1 motor, see Section "Cables and connectors
(Page 27)".
