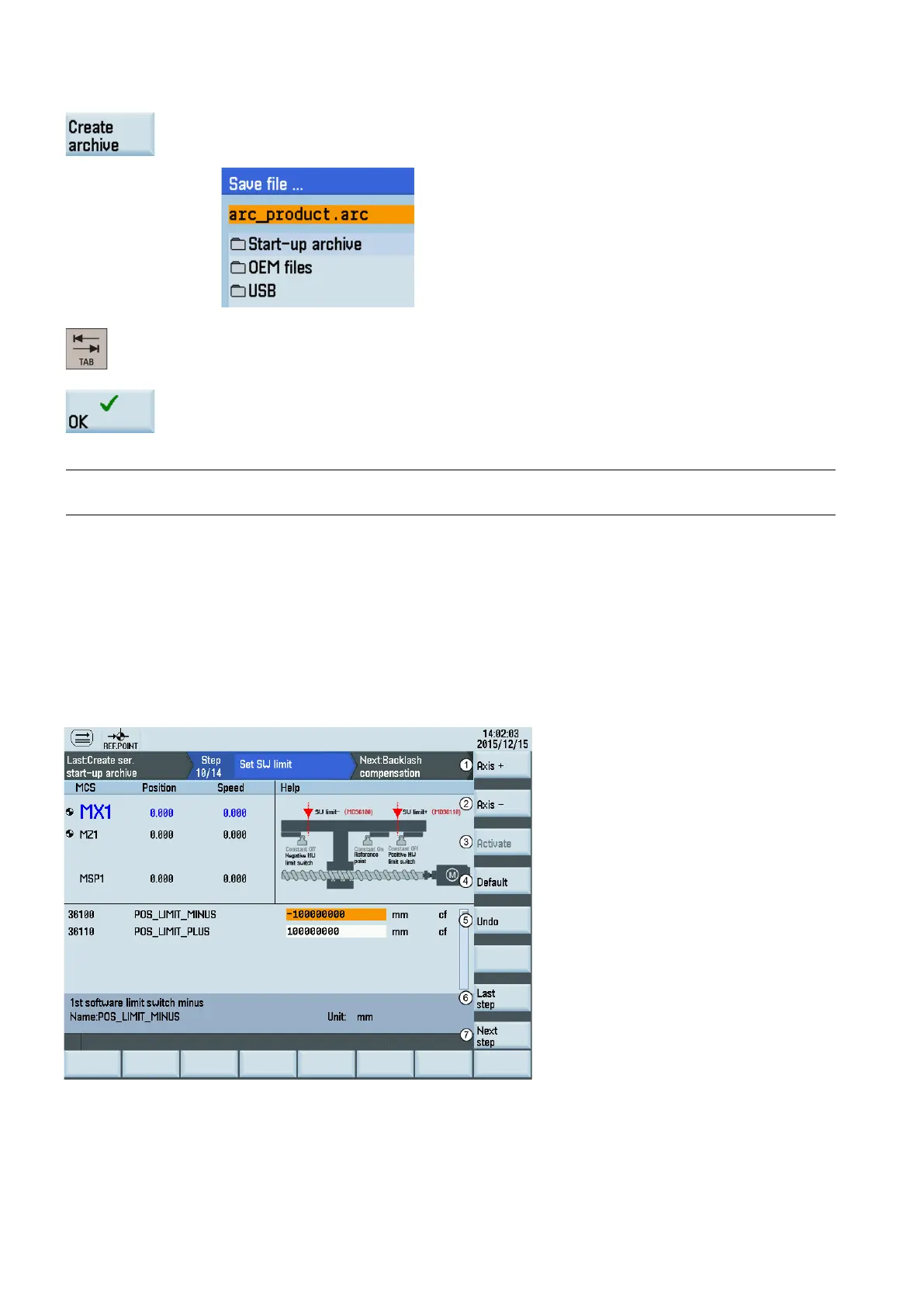

Press this softkey to open the window for saving the archive file. You must select a dire
ctory in this
window. The default name of the data archive is "arc_product.arc". You can use your desired name
for it. The file name extension ".arc" must be entered.
that you can press this key on the PPU to toggle between the file name input field and the
directory selection area.
Press this softkey to create the archive.
Note
If you choose USB as the target directory, do not remove the USB stick during the data saving.
Setting compensation data
7.6.1
Setting software limit switch data
The software limit switches are used to limit the maximum traversing range on each individual axis.
You can set the software limit switches for each axis by configuring parameters 36100 and 36110 under this commissioning
step.
Cancels the last change to the parameter
Selects the previous axis
