make sure this vertical softkey is not selected.

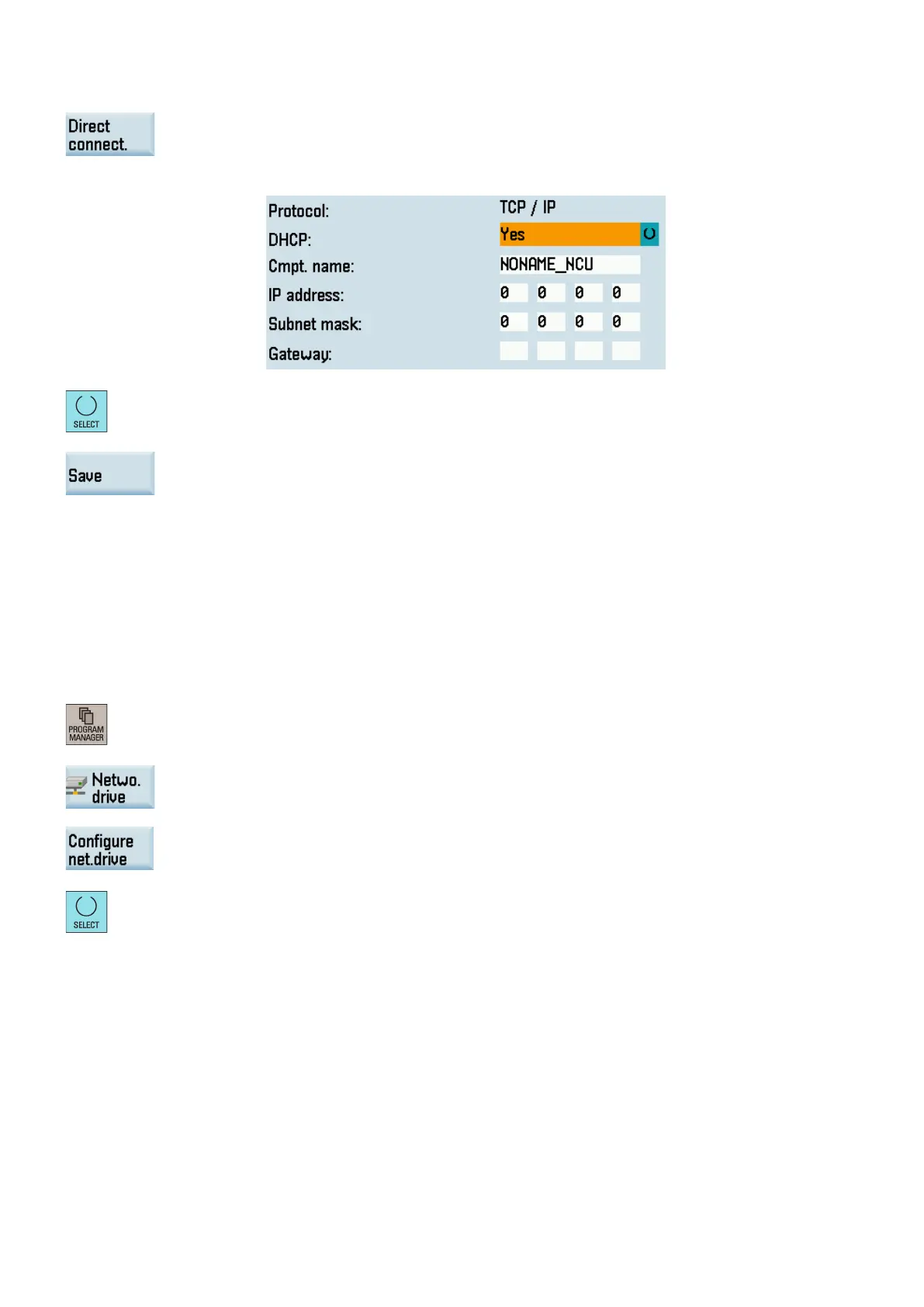

Configure the network as required in the following window:
You can configure the DHCP with this key.
if you select "No" for DHCP, you must enter the IP address (which must belong to the
same network as that of your PC) and subnet mask manually.
Press this softkey to save the configuration. If you select "Yes" for DHCP, you also need to
restart the cont
rol system to activate the network configuration.
Configuring the network drive
A connected network drive allows you to access a shared directory on your computer from the control system. The network
drive functions based on the Ethernet connection between the control system and a computer. For more information about
how to establish an Ethernet connection, see Section "Network configuration (Page 251)".
Creating and connecting a network drive
Proceed as follows to create and connect a network drive:
Share a directory on your local disk on your computer.
Select the program management operating area.
Press this softkey to go to the network drive directory.
Press this softkey to go to the window for configuring the network drives.
Press this key to select a drive identifier: N1, N2, or N3.
To Next Page
