7.2
Commissioning the PLC
7.2.1
Setting PLC related parameters

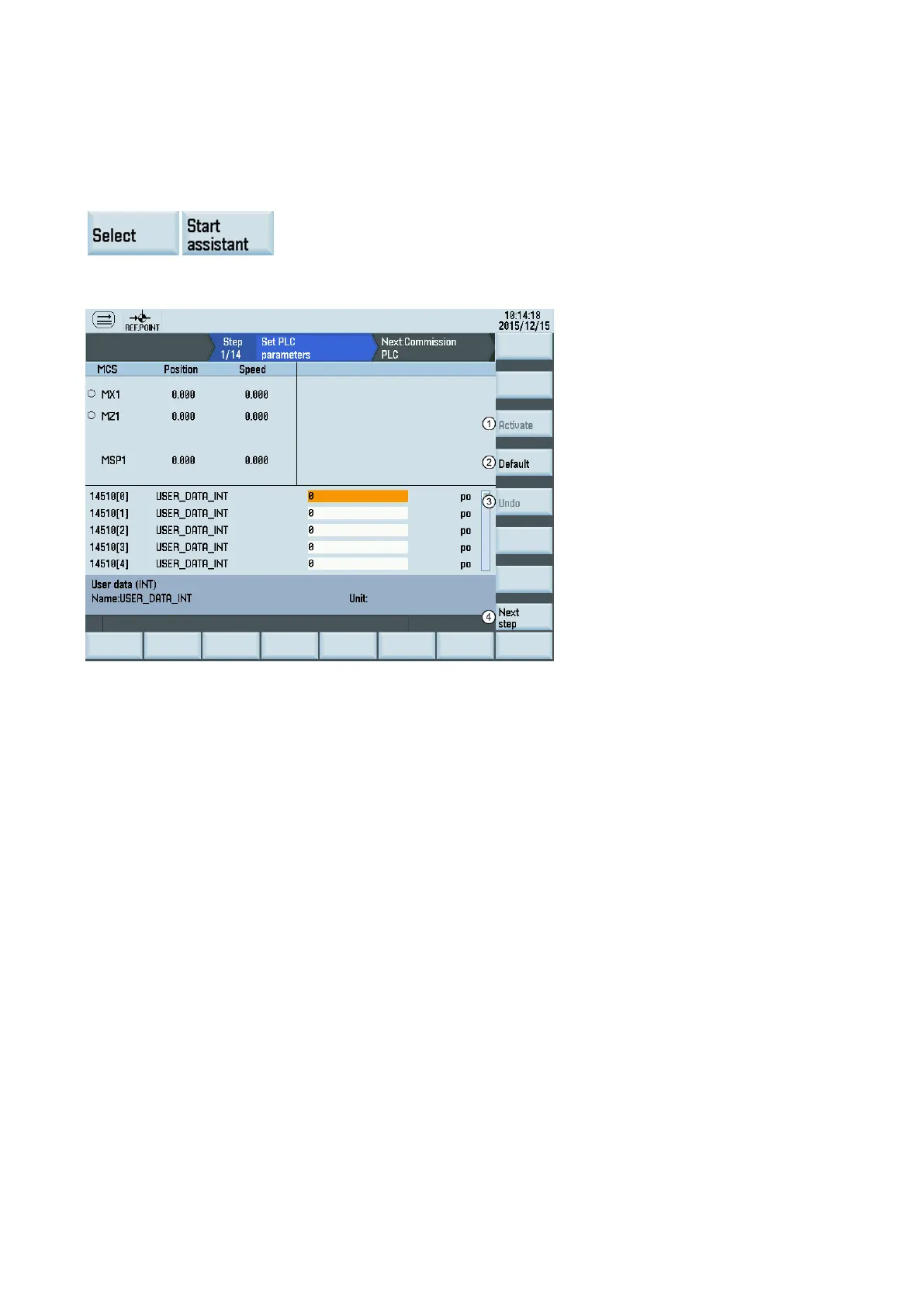

Use either of the following softkeys on the main screen of prototype commissioning wizard to enter the window for setting
the PLC related parameters:
/
Softkey functions
①
Activates the parameter changes. Note that the co
n-
trol system restarts to accept the new values.
③
Cancels
the last change to the parameter
②
Resets the value of the selected parameter to default
④
Proceeds to the next step
For more information about setting the PLC related parameters, see Section "PLC machine data (Page 160)".
