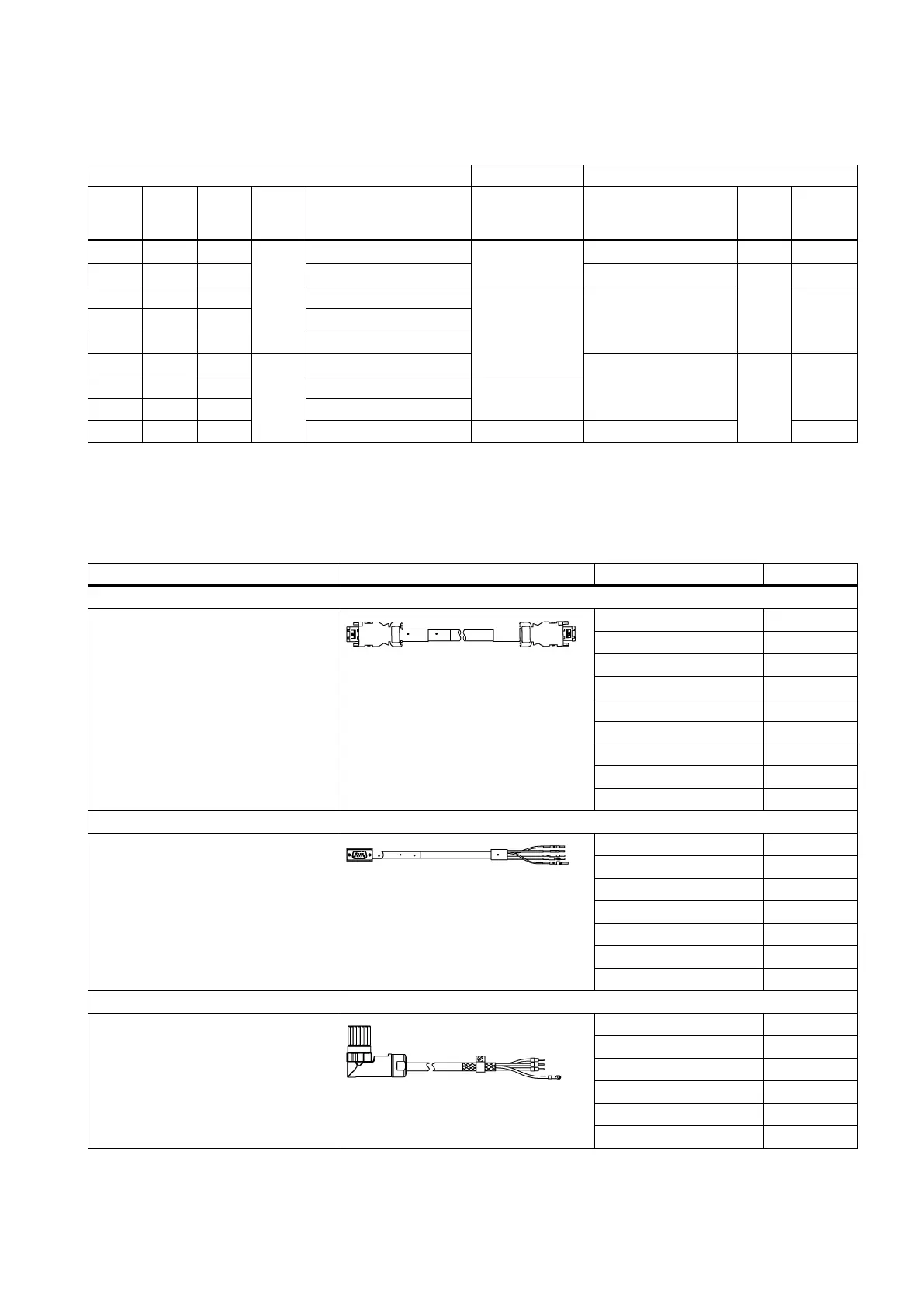

Device combination of the SINAMICS V70 spindle servo system
The table below lists ordering data of V70 spindle drives and configurable motors. You can select the desired spindle drive
according to the motor configured:
SIMOTICS M-1PH1 main motor
Power cable
1)
SINAMICS V70 spindle drive
Rated
power
(kW)
Rated
current
(A)
Rated
speed
(rpm)
Shaft
height
(mm)
Article number
Cross section
(mm
2
)
Article number
Frame
size
Rated
current
(A)
3.7
10.3
1500
100
1PH1101-1❑F1❑-❑GA0
4 × 2.5
6SL3210-5DE21-1UA0
FSB
10.5
3.7
12.9
1000
1PH1103-1❑D1❑-❑GA0
6SL3210-5DE21-3UA0
FSC
12.9
5.5
16.9
1500
1PH1103-1❑F1❑-❑GA0
4 × 4 6SL3210-5DE22-0UA0 19.6
5.5
18.8
1000
1PH1105-1❑D1❑-❑GA0
7.5
19.6
1500
1PH1105-1❑F1❑-❑GA0
7.5
26.6
1000
132
1PH1131-1❑D1❑-❑GA0
6SL3210-5DE23-0UA0 FSD 29.8
11
28.8
1500
1PH1131-1❑F1❑-❑GA0
4 × 10
11
28.3
1000
1PH1133-1❑D1❑-❑GA0
15
36.7
1500
1PH1133-1❑F1❑-❑GA0
4 × 16
6SL3210-5DE24-0UA0
37.6
1)
For more information about the ordering data of the power cables between the spindle drive and the main motor, see
Section "Cables and connectors (Page 27)".
2.1.1.4
Cables and connectors
Cables
Component
Illustration
Article number
Length (m)
PPU to SINAMICS V70 feed/spindle drive
Drive Bus cable
6FC5548-0BA20-1AA2
0.25
6FC5548-0BA20-1AA3
0.35
6FC5548-0BA20-1AB0
1
6FC5548-0BA20-1AD0
3
6FC5548-0BA20-1AF0
5
6FC5548-0BA20-1AH0
7
6FC5548-0BA20-1BA0
10
6FC5548-0BA20-1BF0
15
6FC5548-0BA20-1CA0
20
PPU (analog spindle interface) to Siemens inverter or third-party drive (with analog input)
Spindle setpoint cable
6FC5548-0BA05-1AD0
3
6FC5548-0BA05-1AE0
4
6FC5548-0BA05-1AF0
5
6FC5548-0BA05-1AH0
7
6FC5548-0BA05-1BA0
10
6FC5548-0BA05-1BF0
15
6FC5548-0BA05-1CA0 20
SINAMICS V70 feed drive to 1FL6 motor
MOTION-CONNECT 300 power cable
(V70 FSA to 1FL6)
6FX3002-5CL01-1AD0
3
6FX3002-5CL01-1AF0
5
6FX3002-5CL01-1AH0
7
6FX3002-5CL01-1BA0
10
6FX3002-5CL01-1BF0
15
6FX3002-5CL01-1CA0
20
