Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
01/2017
251
10
Network functions
10.1
Network configuration
Ethernet connections
You can establish a network connection between the control system and a computer via the Ethernet interface X130. The
following Ethernet connections are possible:
● Direct connection: connecting the control system directly to a computer
● Network connection: integrating the control system into an existing Ethernet network
Establishing a direct connection
Proceed as follows to establish a direct connection between the control system and a computer:
1.
Connect the control system with the computer using an Ethernet cable.
+
2.
Select the desired operating area on the PPU.
3.
Press this key to view the extended softkeys.
4.

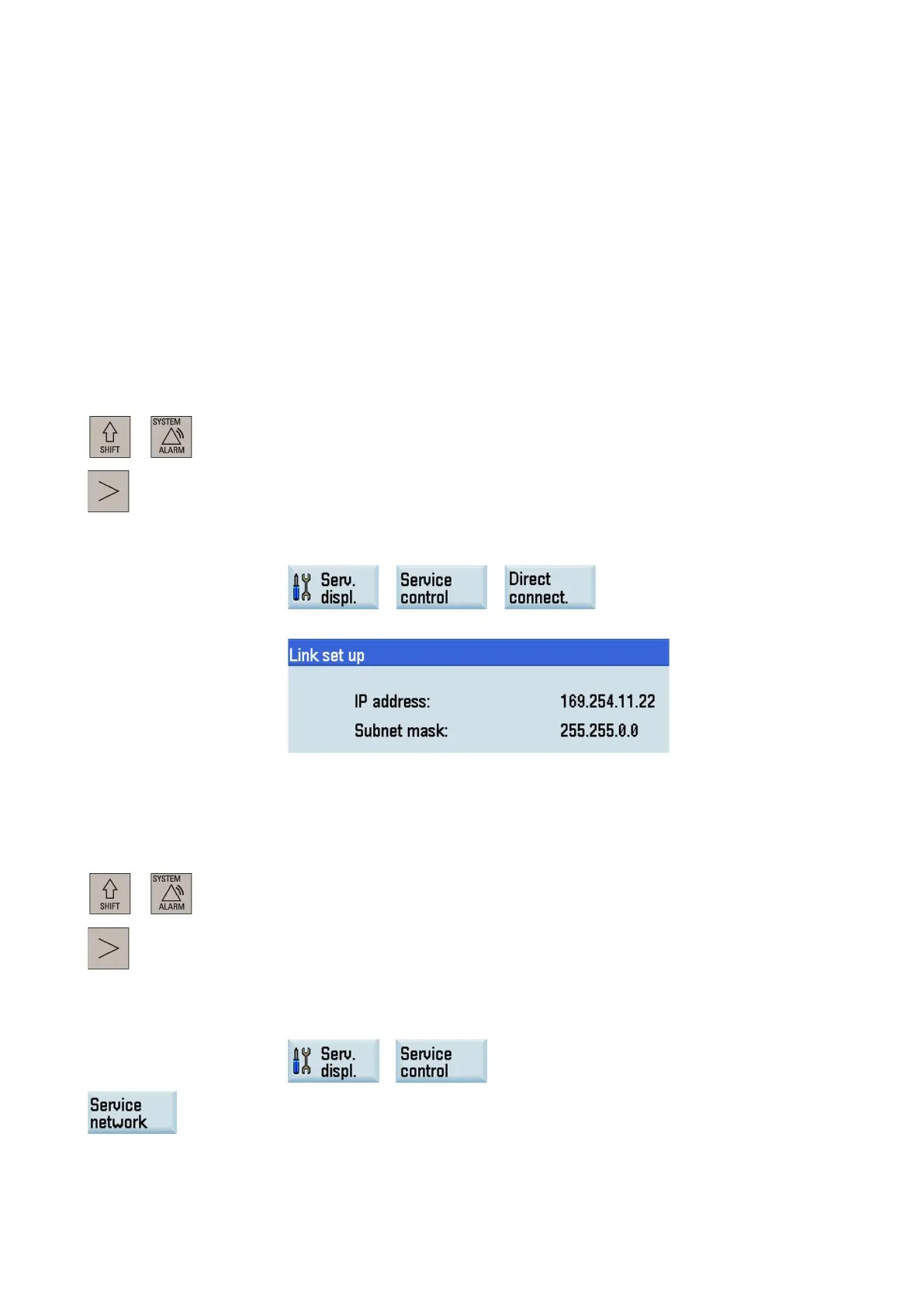

Set up a direct connection on the control system through the following softkey operations:
→ →
The following dialog pops up on the screen:
Establishing a network connection
Proceed as follows to establish a network connection:
1.
Connect the control system with the local network using an Ethernet cable.
+
2.
Select the desired operating area
on the PPU.
3.
Press this key to view the extended
softkeys.
4.
Enter the main screen of the service control options through the following softkey oper
a-
tions:
→
5.
Press this softkey to enter the wi
ndow for the network configuration.
