Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
241
③
Activates the modified values
⑦
Proceeds to the next step
④
Resets the value of the selected parameter to default
Setting parameters
No.
Name
Unit
Range
Description
36100
POS_LIMIT_MINUS
mm
-
- software limit switch
36110
POS_LIMIT_PLUS
mm
-
+ software limit switch
7.6.2

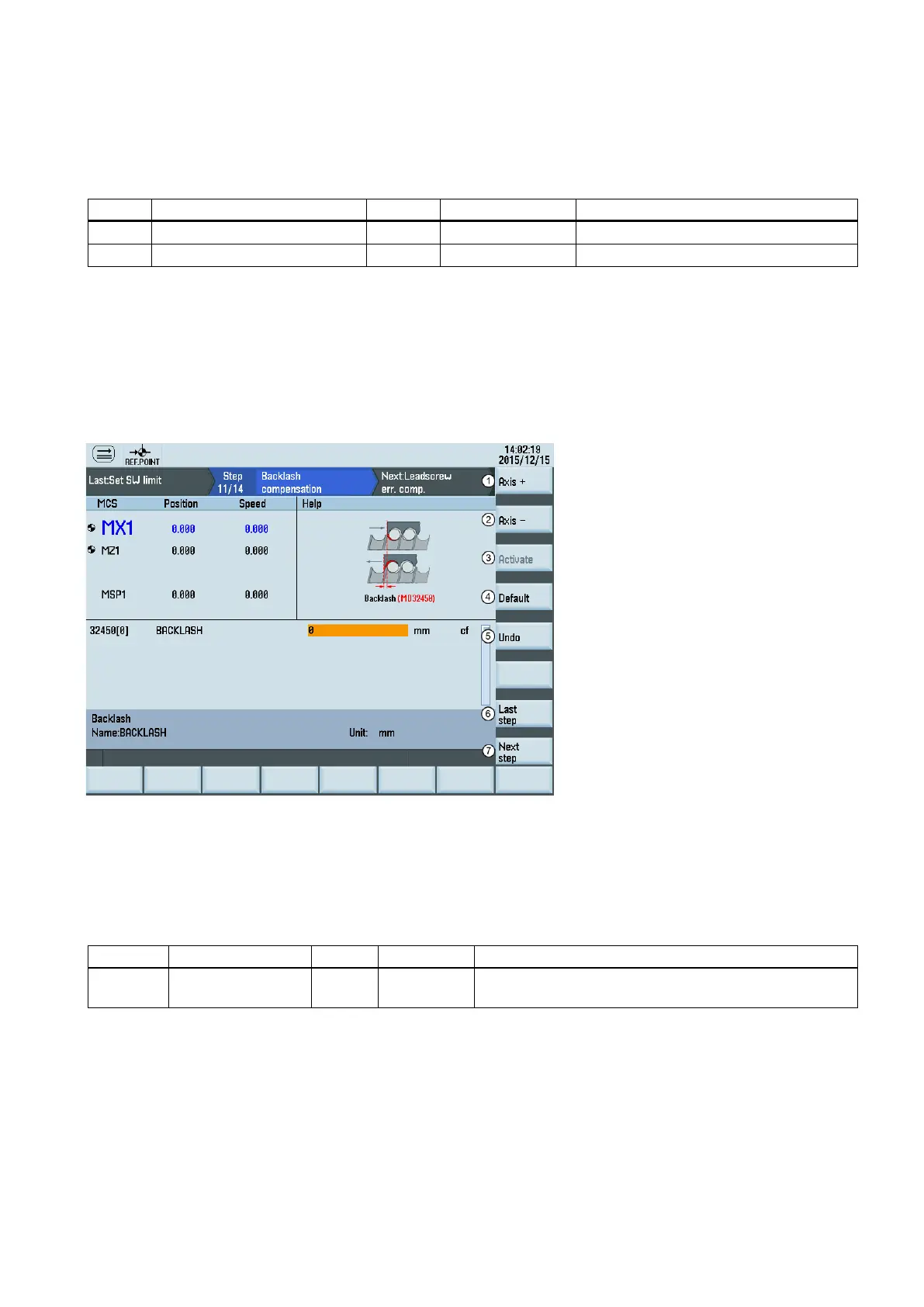

Setting backlash compensation data
In the case of axes/spindle with indirect measuring systems, mechanical backlash results in corruption of the traverse path,
causing an axis, for example, to travel too much or too little by the amount of the backlash when the direction of movement
is reversed.
You can set the backlash compensation by configuring the parameter 32450[0].
Softkey functions
①
Selects the next axis
⑤
Can
cels the last change to the parameter
②
Selects the previous axis
⑥
Returns to the last step
③
Activates the modified values
⑦
Proceeds to the next step
④
Resets the value of the selected parameter to default
Setting parameter
No.
Name
Unit
Range
Description
32450[0] BACKLASH mm - Backlash compensation is active after reference point ap-
proach.
