Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
95
4.2.9
Handwheel inputs - X10
Pin assignment
Type
Mini Combicon 10-pin
Cable
Less than 3 m

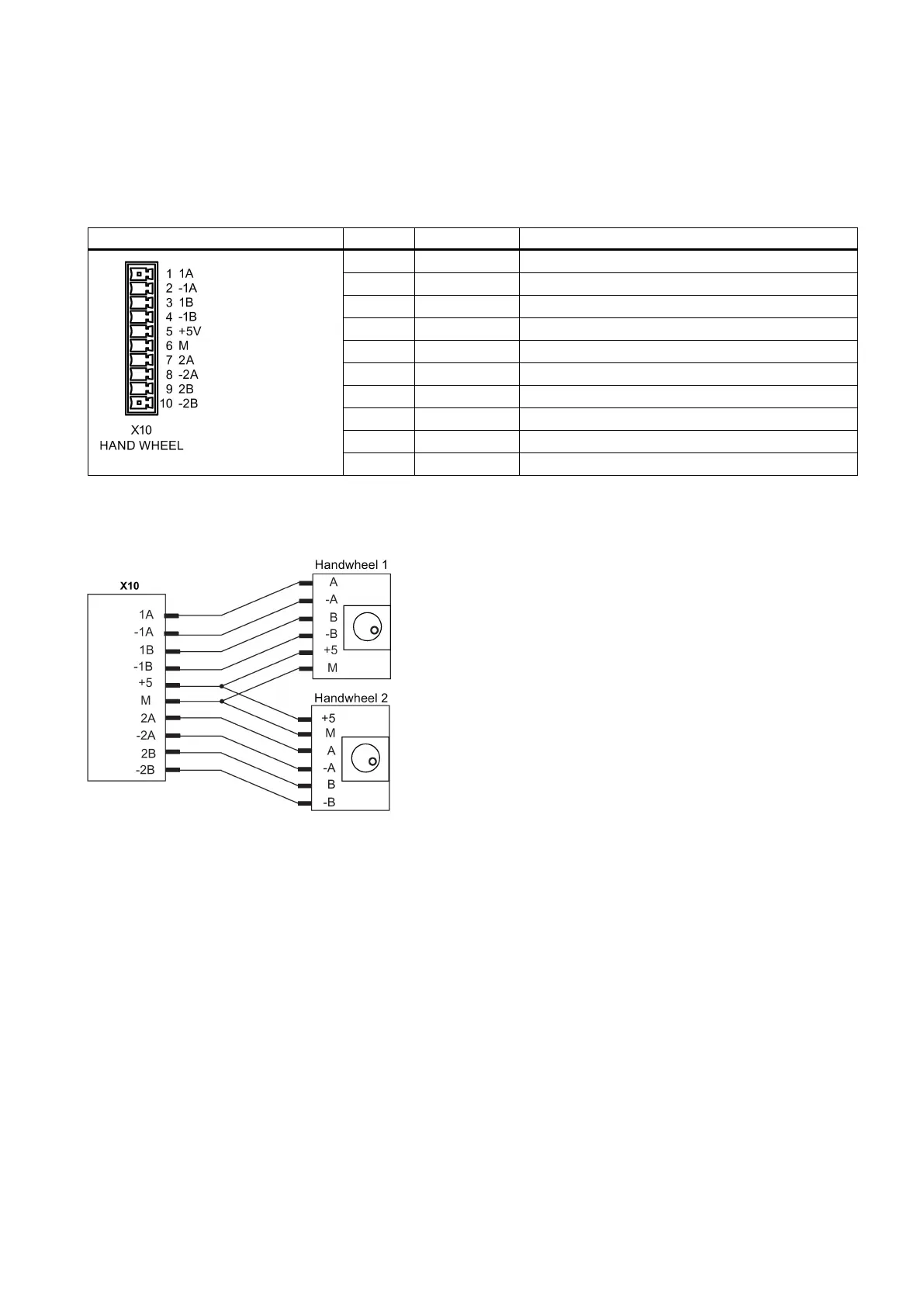

Illustration
Pin
Signal
Comment
1
1A
Track A, handwheel 1
2
-1A
Negative Track A, handwheel 1
3
1B
Track B, handwheel 1
4
-1B
Negative Track B, handwheel 1
5
+5 V
+5 V power output
6
M
Ground
7
2A
Track A, handwheel 2
8
-2A
Negative Track A, handwheel 2
9
2B
Track B, handwheel 2
10
-2B
Negative Track B, handwheel 2
Connecting
You are allowed to connect at most two electronic handwheels at connector X10 on the PPU.
The handwheels must meet the following requirements:
Transmission procedure
5 V square wave signals (TTL level or RS422)
Signals
Track A as a true and negative signal (U
a1
U
a1
)
Track B as a true and negative signal (U
a2
U
a2
)
Max. input frequency
500 kHz
Phase shift between Track A to Track B
90
o
± 30
o
Supply
5 V, max. 250 mA
