Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
39
2.1.2.4

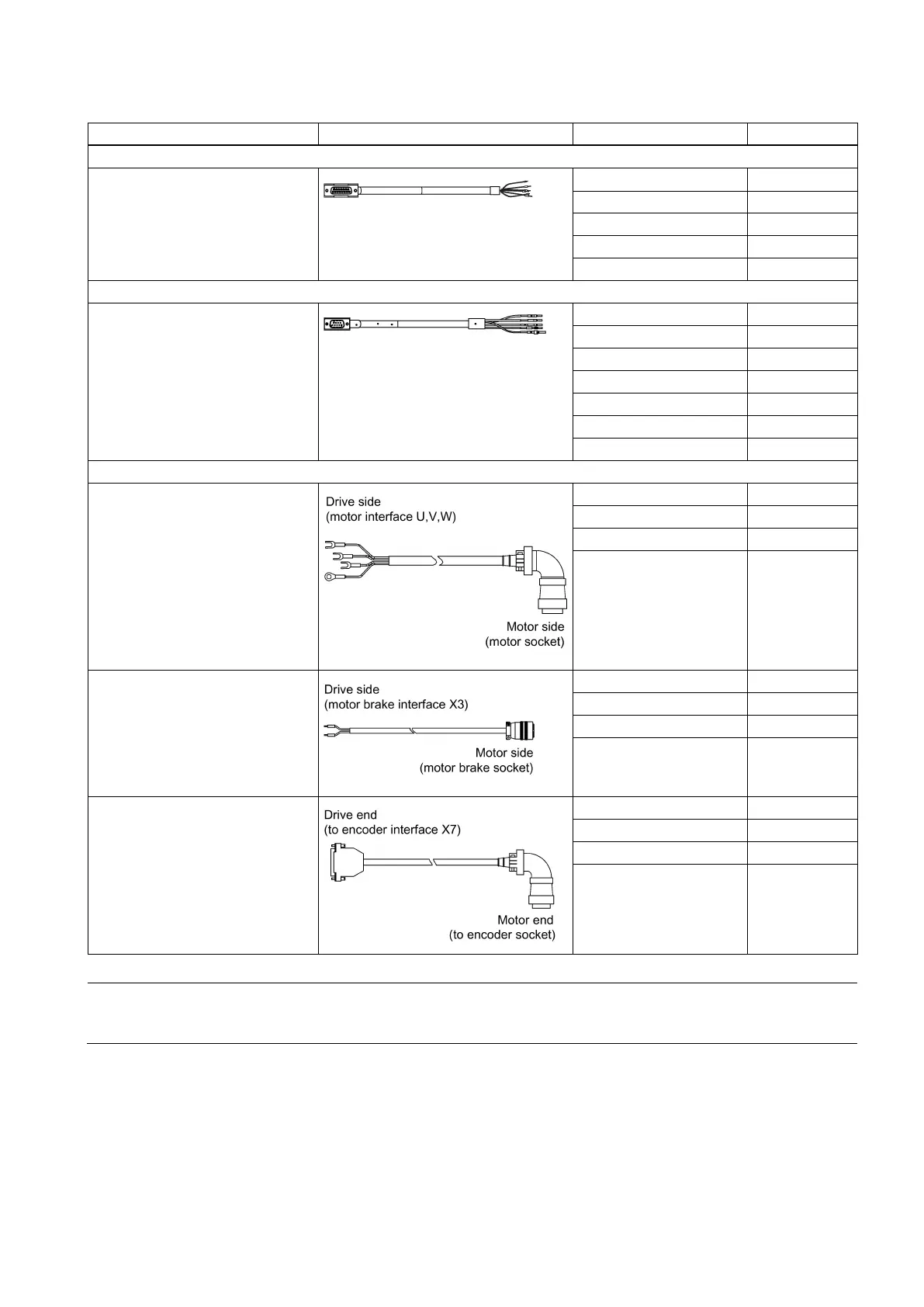

Cables
Component
Illustration
Article number
Length (m)
PPU to SINAMICS V60 drive
Setpoint cable
6FC5548-0BA00-1AD0
3
6FC5548-0BA00-1AE0
4
6FC5548-0BA00-1AF0
5
6FC5548-0BA00-1AH0
7
6FC5548-0BA00-1BA0
10
PPU (analog spindle interface) to Siemens inverter or third-party drive (with analog input)
Spindle setpoint cable
6FC5548-0BA05-1AD0
3
6FC5548-0BA05-1AE0 4
6FC5548-0BA05-1AF0
5
6FC5548-0BA05-1AH0
7
6FC5548-0BA05-1BA0
10
6FC5548-0BA05-1BF0
15
6FC5548-0BA05-1CA0
20
SINAMICS V60 drive to 1FL5 motor
MOTION-CONNECT power cable
6FX6002-5LE00-1AD0
3
6FX6002-5LE00-1AF0
5
6FX6002-5LE00-1AH0
7
6FX6002-5LE00-1BA0 10
MOTION-CONNECT brake cable
6FX6002-2BR00-1AD0
3
6FX6002-2BR00-1AF0
5
6FX6002-2BR00-1AH0
7
6FX6002-2BR00-1BA0 10
MOTION-CONNECT encoder
cable
6FX6002-2LE00-1AD0
3
6FX6002-2LE00-1AF0 5
6FX6002-2LE00-1AH0
7
6FX6002-2LE00-1BA0 10
Note
All cables given above are suitable for use in drag chains. For more information on how to lay cables properly in drag chains,
see Section "
Notes on the laying of cables in drag chains (Page 79)".
