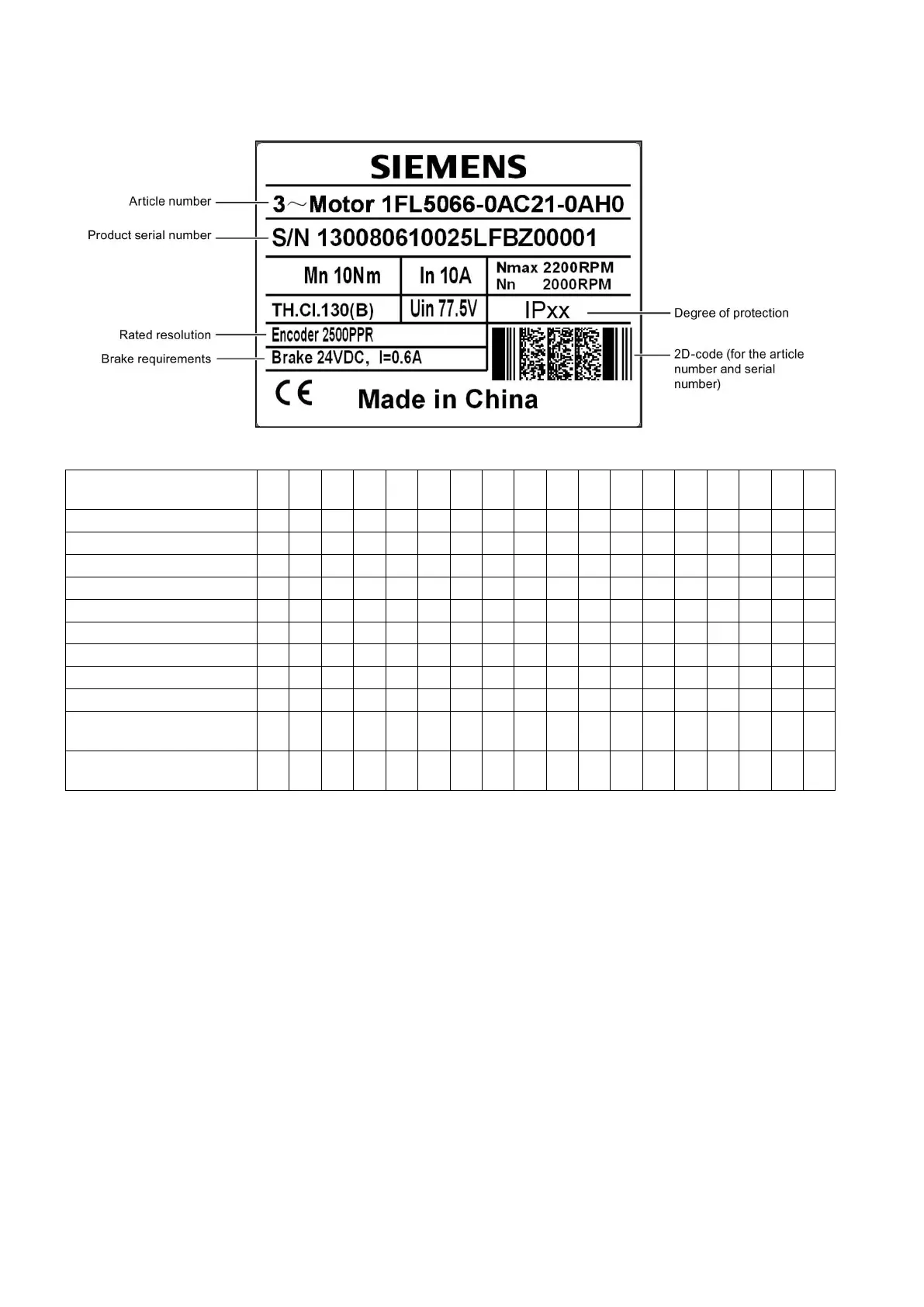

Motor rating plate
Explanation of motor article numbers
Data position of the article
number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Article number
1
F
L
5
0
6
❑
-
0
A
C
2
1
-
0
A
❑
0
Stall torque
4.0 Nm
0
6.0 Nm
2
7.7 Nm
4
10.0 Nm
6
Mechanics
Plain shaft, without brake
G
Plain shaft, with brake
H
Shaft with key (half-key
balancing), without brake
A
Shaft with key (half-key
balancing), with brake
B
