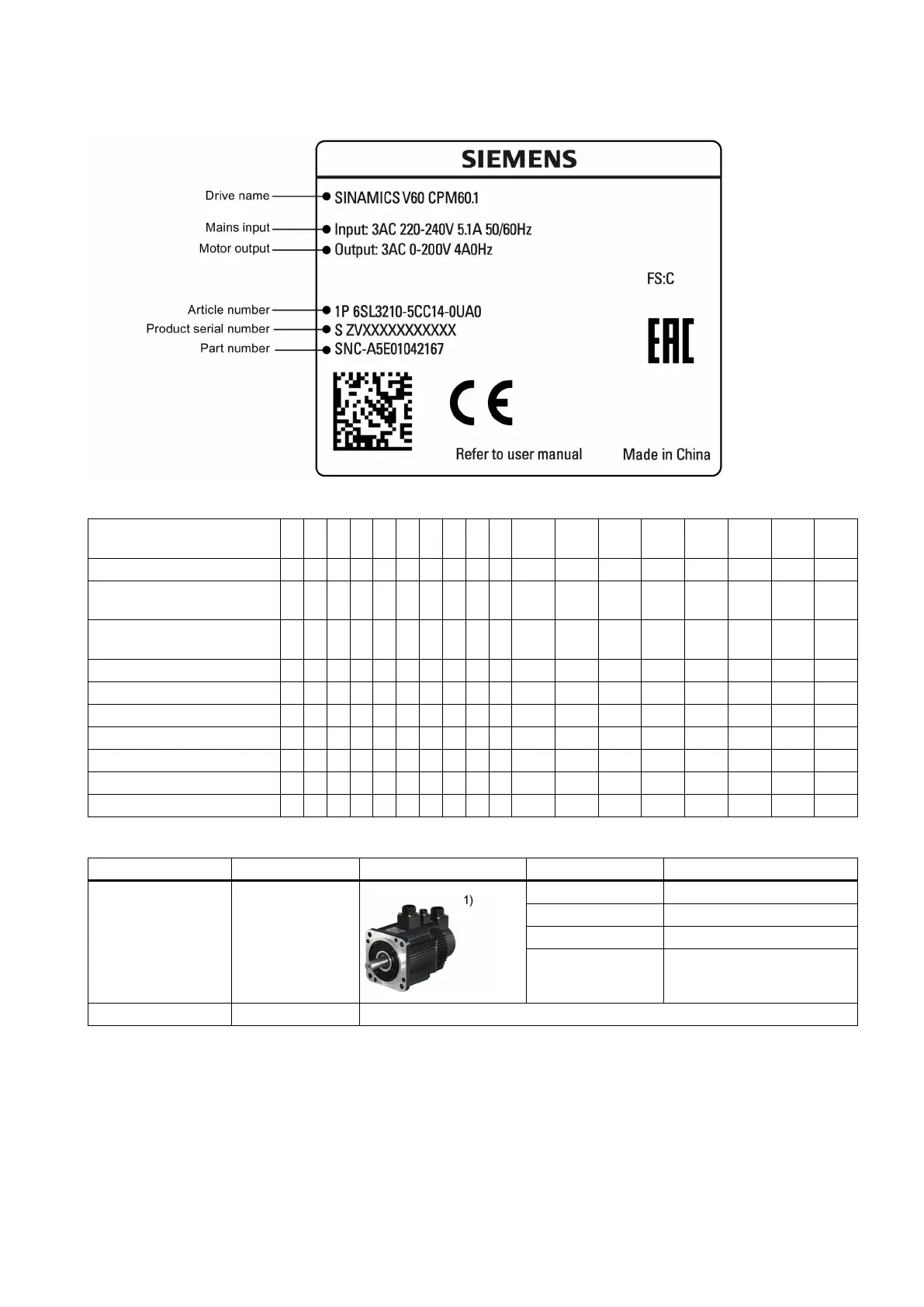

Drive rating plate
Explanation of drive article numbers
Data position of the article
number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Article number
6
S
L
3
2
1
0
-
5
C
●
❑
❑
-
❑
U
A
0
Mains voltage: 3 AC 220 V to
240 V
C
Multiplier for the output cur-
rent
× 0.1
1
× 1
2
Rated output current
4 A
4
0
6 A
6
0
7 A
7
0
10 A
1
0
Components in the motor package
Component
Quantity (pieces)
Illustration
Stall torque (Nm)
Article number
2)
S-1FL5 motor 1
4
1FL5060-0AC21-0A❑0
6
1FL5062-0AC21-0A❑0
7.7
1FL5064-0AC21-0A❑0
10 1FL5066-0AC21-0A❑0
User documentation
1
Datasheet for S-1FL5 motors
1)
Refer to the rating plate on the motor housing for motor-specific electrical data.
2)
For more information about article numbers, see motor article number explanation described later in this section.
