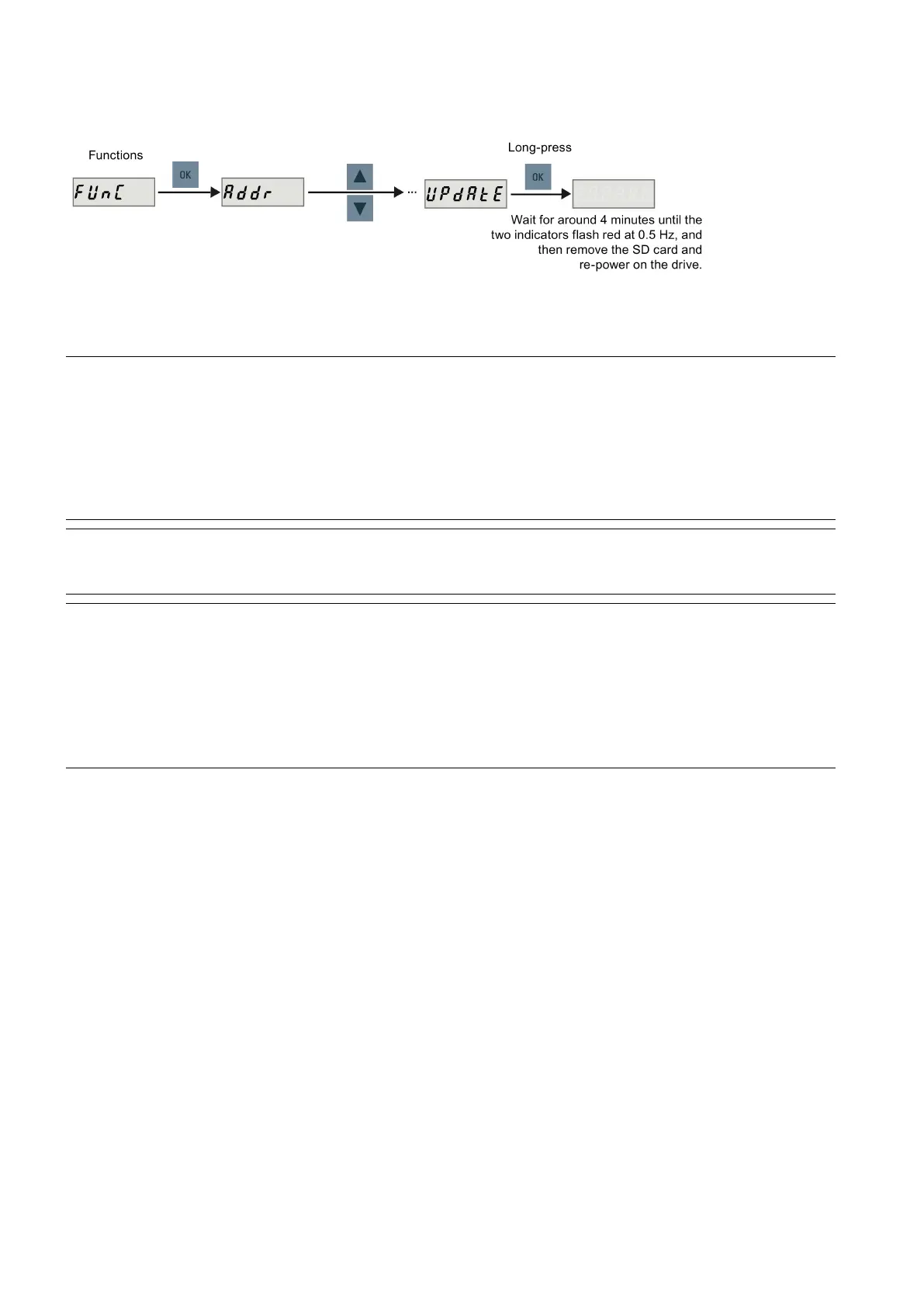

Store the new firmware file onto an SD card and insert the card into the SD card slot. After that, proceed as follows:
After the above BOP operations, wait for around four minutes until the two indicators flash red at 0.5 Hz, and then remove
the SD card and re-power on the drive. After a successful firmware update, you must reset all parameters to their default
values (see Section "Setting parameter set to default (Page 468)" for details).
Note
Possible update failure
If the update fails, the RDY indicator flashes red at 2 Hz and the COM indicator becomes red on.
An update failure is probably caused by improper firmware files or files missing:
If the firmware files on the SD card are corrupt, the servo drive
start up after power-on.
If the firmware on the SD card is the same with the current firmware of the servo drive,
a restart is performed.
When a failure occurs, try to update the firmware again with proper firmware files.
If the failure persists, contact your local
Note
Update the firmware by restarting the drive
With the SD card containing proper firmware files inserted, you can also update the firmware by restarting the drive.
Note
Drive data restoring after firmware update
After updating the firmware, you must restore the drive data through any of the following methods:
Restoring the drive data via the control system
For more information about restoring a startup archive, see the SINUMERIK 808D/SINUMERIK 808D ADVANCED
Operating and Programming manuals.
Restoring the drive data via the SD card
For more information, see Section "Transferring data (SD card to drive) (Page 469)".
